Different Types Of Shower Valves Explained: Functions, Pressure, Flow & Systems

Different types of shower valves control water temperature, flow rate, pressure stability, and outlet direction using defined mechanisms such as thermostatic cartridges, pressure-balancing pistons, and ceramic discs across 0.2–5 bar systems with output between 6–20 litres per minute.

Shower valve classification includes 8 main types: manual mixing valves, thermostatic valves, pressure-balancing valves, diverter valves, cartridge valves, ceramic disk valves, ball valves, and check valves, each performing a specific hydraulic control function. Manual mixing valves operate through direct user adjustment with ±3–5°C variation, while thermostatic valves maintain ±1°C stability with anti-scald response within 0.2 seconds.

Pressure-balancing valves equalise hot and cold supply pressure to prevent sudden temperature shifts, while diverter valves redirect water across 2–3 outlets with controlled distribution. Cartridge-based systems use ceramic or thermostatic elements exceeding 200,000–500,000 cycles, defining durability and replacement intervals of 3–5 years.

Table of Contents

What Are Shower Valves?

Shower valves are plumbing control mechanisms that regulate water temperature, flow rate, and outlet direction by blending hot and cold water supplies through internal cartridges, maintaining flow rates between 6–15 litres per minute and temperature stability within ±1–5°C across varying pressure systems. Shower valves function as the central control point within a shower system, managing water delivery from supply pipes to outlets such as overhead showers and handsets. Internal components include ceramic discs, thermostatic elements, and pressure-balancing pistons that stabilise flow under fluctuating demand.

Temperature Control

Shower valves regulate temperature by mixing hot and cold water through calibrated internal mechanisms such as thermostatic cartridges or manual mixers. Thermostatic systems maintain output within ±1°C accuracy while manual systems vary up to ±5°C. Temperature control prevents scalding during pressure drops caused by simultaneous water usage.

Flow Regulation

Shower valves control water flow rate using internal restrictors and cartridge openings that manage output between 6 to 15 litres per minute. Flow regulation ensures balanced delivery across outlets without excessive water consumption. High-pressure systems deliver up to 20 litres per minute while low-pressure systems operate closer to 6–8 litres per minute.

Pressure Stability

Shower valves maintain pressure balance between hot and cold supplies using pistons or diaphragms that adjust flow ratios dynamically. Pressure stability prevents sudden temperature fluctuations when water demand changes elsewhere in the property. Pressure balancing systems operate effectively within 1 to 3 bar ranges.

Cartridge Mechanism

Shower valves use internal cartridges such as ceramic discs or thermostatic elements to control water mixing and flow precision. Ceramic disc cartridges provide durability exceeding 200,000 operational cycles. Thermostatic cartridges respond within 0.2 seconds to pressure or temperature changes.

Outlet Switching

Shower valves manage outlet switching through diverter mechanisms that redirect water between 2 to 3 outlets such as fixed heads, hand showers, and bath fillers. Diverter valves operate using rotary or push-button controls. Flow distribution remains consistent across outlets with minimal pressure loss.

Installation Types

Shower valves install as concealed or exposed systems depending on design preference and plumbing configuration. Concealed valves fit within wall cavities with visible control plates, requiring installation depths between 70 to 100 mm. Exposed valves mount externally with direct pipe connections for easier access.

What Functions Do Shower Valves Perform?

Shower valves perform 6 primary functions including temperature control, flow regulation, pressure balancing, outlet switching, safety protection, and water mixing accuracy within defined ranges of 6–15 litres per minute flow and ±1–5°C temperature variation depending on valve type.

The functions of shower valves are given below:

Control Water Temperature: Shower valves blend hot and cold water to maintain output within ±1–5°C depending on thermostatic or manual configuration, ensuring stable temperature during usage.
Regulate Water Flow: Shower valves manage flow rates between 6 to 15 litres per minute using internal restrictors and cartridges to optimise water delivery efficiency.
Balance Water Pressure: Shower valves stabilise pressure differences between hot and cold supplies using pistons or diaphragms, preventing sudden temperature fluctuations during simultaneous water usage.
Direct Water Output: Shower valves switch water between 2 to 3 outlets such as showers, handsets, and bath fillers using diverter mechanisms.
Maintain Safety Limits: Shower valves include temperature limiters set between 38°C to 43°C and automatic shut-off systems that activate within 0.2 seconds during supply failure.
Ensure Mixing Accuracy: Shower valves use ceramic disc or thermostatic cartridges to provide precise water blending with consistent performance across pressure ranges from 0.2 to 5 bar.

What Are Different Types Of Shower Valves?

Shower valves are plumbing control units that regulate water flow rate, temperature stability, and outlet direction across 4 main valve types including manual mixer valves, thermostatic valves, pressure balancing valves, and diverter valves with precision control between 0.5 to 2.5 bar pressure ranges.

Manual Mixer Valves

Manual mixer valves combine hot and cold water using dual controls or a single lever without automatic temperature regulation. Temperature adjustment depends on user input with variation ranges up to ±5°C under pressure fluctuation. Manual mixer valves operate efficiently in low-pressure systems between 0.2 to 1 bar. Traditional installations use ceramic disc cartridges for durability exceeding 200,000 cycles. Manual mixer valves suit basic shower setups where cost efficiency and simplicity define selection criteria.

Radiator Valves

Radiator valves maintain constant water temperature through internal thermostatic cartridges reacting within 0.2 seconds to pressure changes. Temperature stability remains within ±1°C, preventing scalding during pressure drops from appliances like toilets or washing machines. Thermostatic valves operate across pressure ranges from 0.5 to 5 bar. Integrated safety stops at 38°C provide controlled maximum temperature output.

Pressure Balancing Valves

Pressure balancing valves regulate water pressure between hot and cold supplies to maintain consistent output temperature during supply fluctuations. Internal diaphragms or pistons adjust flow ratios dynamically when pressure shifts occur. Temperature variation typically ranges within ±3°C during sudden pressure drops. Pressure balancing valves function effectively in medium-pressure systems between 1 to 3 bar. Installations benefit households with variable water demand across multiple outlets.

Diverter Valves

Diverter valves control water direction between multiple outlets such as overhead showers, hand showers, and bath fillers. Single, two-way, and three-way diverters allow switching between 2 to 3 outlets using rotational or push mechanisms. Flow distribution maintains consistent pressure within 10–15 litres per minute output. Diverter valves integrate with concealed and exposed systems for flexible bathroom layouts.

Digital Shower Valves

Digital shower valves use electronic controls to regulate temperature and flow through programmable interfaces with accuracy within ±0.5°C. Digital processors manage water mixing via thermostatic sensors and solenoid valves. Remote operation includes wall panels, mobile apps, and voice assistants. Flow rates range between 6 to 16 litres per minute depending on system configuration. Digital shower valves suit modern installations requiring automation and precise user control.

Concealed Shower Valves

Concealed shower valves install behind walls with only control plates and handles visible, improving aesthetics and space efficiency. Internal components connect to pipework within wall cavities while maintaining full functional control. Concealed shower valves support thermostatic, manual, and diverter configurations. Installation depth typically ranges between 70 to 100 mm depending on model design.

Exposed Shower Valves

Exposed shower valves mount externally on finished walls with visible pipe connections and valve bodies. Installation complexity reduces due to direct pipe access without wall recessing. Exposed shower valves operate across all system types including gravity-fed and combi boiler setups. Maintenance access improves due to visible components and simplified cartridge replacement.

What Is a Manual Mixing Valve and How Does It Work?

A manual mixing valve is a shower valve that blends hot and cold water through user-controlled handles or levers without automatic temperature stabilisation, operating across 0.2–1 bar pressure systems with temperature variation ranges of ±3–5°C depending on input adjustments.

The working mechanism of a manual mixing valve is given below:

Blend Water Supplies: Manual mixing valves combine hot and cold water through adjustable handles connected to inlet ports, creating the desired temperature mix.
Control Temperature Manually: Users adjust temperature by altering handle position, causing variation within ±3–5°C based on supply pressure changes.
Regulate Water Flow: Manual mixing valves control flow rates between 6 to 12 litres per minute using internal cartridge openings.
Use Ceramic Cartridges: Internal ceramic disc cartridges manage water mixing and provide durability exceeding 200,000 operation cycles.
Respond To Pressure Changes: Manual mixing valves react directly to pressure fluctuations without automatic correction, requiring manual readjustment during use.
Operate In Low Pressure: Manual mixing valves function efficiently in systems operating between 0.2 to 1 bar, including gravity-fed water setups.

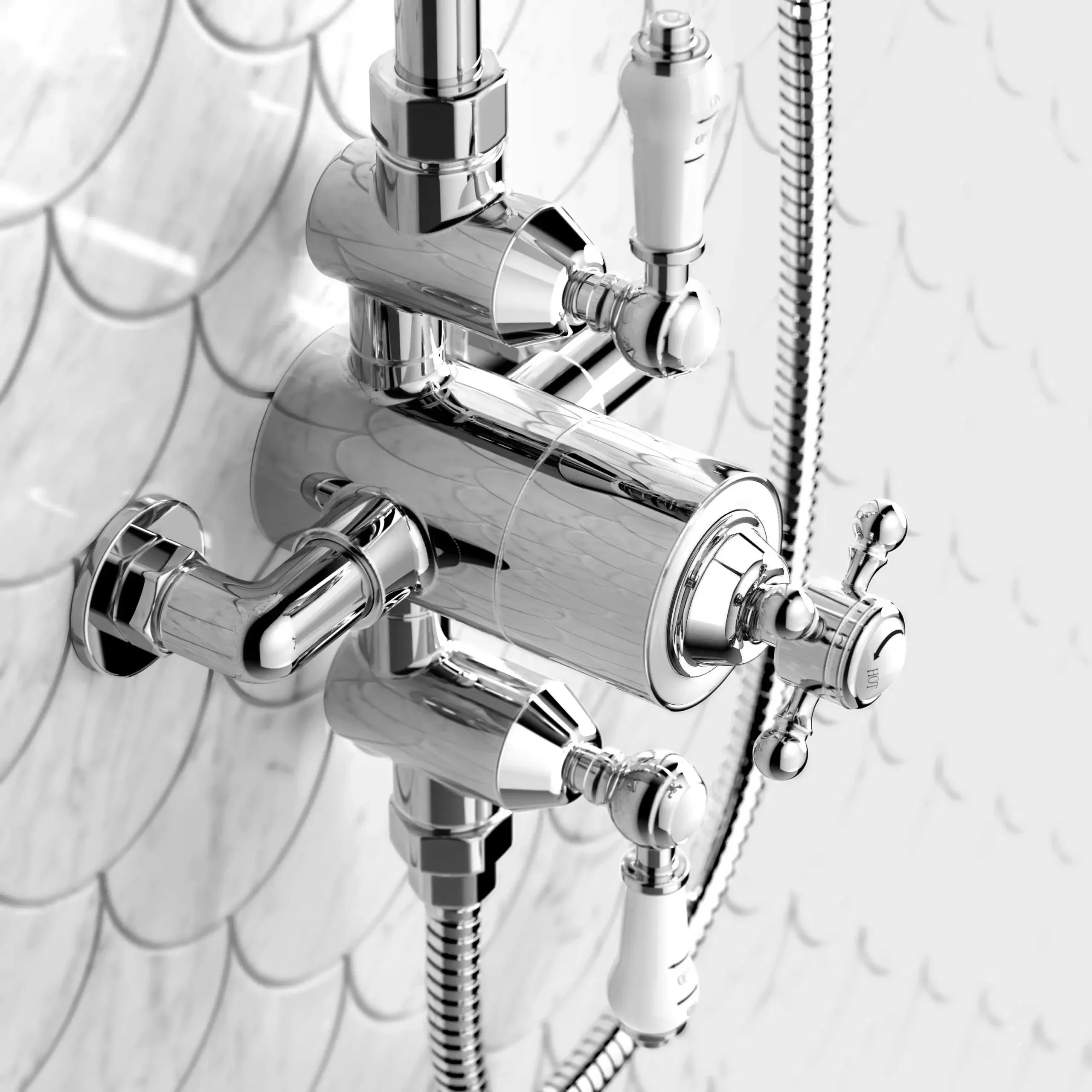

What Is a Thermostatic Mixing Valve and How Does It Work?

A thermostatic mixing valve is a shower valve that automatically maintains a constant water temperature by adjusting hot and cold water flow through a thermostatic cartridge, operating within ±1°C accuracy across pressure ranges of 0.5 — 5 bar with rapid response to supply changes.

The working mechanism of a thermostatic mixing valve is given below:

Maintain Constant Temperature: Thermostatic mixing valves regulate water temperature within ±1°C by automatically adjusting hot and cold water ratios.
Use Thermostatic Cartridge: Internal thermostatic cartridges expand or contract in response to temperature changes, controlling water mix in real time.
Respond To Pressure Changes: Thermostatic mixing valves react within 0.2 seconds to pressure fluctuations caused by taps, toilets, or appliances.
Provide Anti-Scald Protection: Built-in safety systems shut off water flow during cold water supply failure, preventing exposure to high temperatures.
Limit Maximum Temperature: Temperature stop controls restrict output between 38°C and 43°C to ensure safe usage conditions.
Support High Pressure Systems: Thermostatic mixing valves operate effectively across 0.5 to 5 bar pressure systems, including combi boiler setups.

How Do Thermostatic Valves Prevent Scalding In Bathrooms?

Thermostatic valves prevent scalding by maintaining water temperature within ±1°C, instantly reducing or shutting off hot water flow within 0.2 seconds during cold water failure, and limiting maximum output to 38–43°C through integrated safety stop mechanisms.

The scald prevention mechanisms of thermostatic valves are given below:

Maintain Temperature Stability: Thermostatic valves regulate hot and cold water ratios continuously to keep output within ±1°C, preventing sudden temperature spikes.
Detect Supply Changes: Thermostatic cartridges respond within 0.2 seconds to pressure drops caused by toilet flushing or appliance usage.
Shut Off Hot Water: Thermostatic valves automatically stop hot water flow when cold supply fails, eliminating exposure to extreme temperatures.
Limit Maximum Temperature: Built-in temperature stops restrict output typically between 38°C and 43°C to reduce burn risk.
Balance Water Pressure: Internal pistons or wax elements adjust flow ratios to maintain consistent temperature during fluctuating demand.
Ensure Safe Operation: Thermostatic valves provide controlled output across pressure ranges of 0.5 to 5 bar, supporting safe usage in residential systems.

What Are Pressure-Balancing Shower Valves And Their Function?

Pressure-balancing shower valves are control valves that maintain consistent water temperature by equalising pressure between hot and cold supplies using internal pistons or diaphragms, operating within ±3°C variation across 1–3 bar systems during sudden demand changes.

The functions of pressure-balancing shower valves are given below:

Balance Water Pressure: Pressure-balancing valves equalise hot and cold water pressure using internal pistons or diaphragms to stabilise flow ratios.
Maintain Temperature Consistency: Pressure-balancing valves limit temperature variation within ±3°C during pressure fluctuations from simultaneous water usage.
Respond To Demand Changes: Pressure-balancing valves adjust flow instantly when toilets, taps, or appliances draw water from the same system.
Prevent Temperature Spikes: Pressure-balancing valves reduce sudden increases in hot water output during cold water pressure drops.
Operate In Medium Pressure: Pressure-balancing valves function efficiently within 1 to 3 bar pressure systems common in residential properties.
Support Single Outlet Systems: Pressure-balancing valves perform effectively in standard shower setups with single outlet configurations.

What Are Diverter Valves And How Do They Control Water Flow?

Diverter valves are shower control components that redirect water flow between 2 to 3 outlets such as overhead showers, hand showers, and bath fillers using internal switching mechanisms, maintaining flow rates between 8–15 litres per minute with minimal pressure loss.

The flow control functions of diverter valves are given below:

Redirect Water Flow: Diverter valves switch water between multiple outlets using rotary, lever, or push-button mechanisms.
Control Outlet Selection: Diverter valves allow selection between 2-way or 3-way configurations depending on system design.
Maintain Flow Consistency: Diverter valves sustain output between 8 to 15 litres per minute across selected outlets without significant pressure drop.
Use Internal Seals: Diverter valves rely on internal seals and cartridges to block unused outlets and direct water efficiently.
Integrate With Systems: Diverter valves connect with concealed and exposed shower systems for multi-outlet functionality.
Enable Sequential Use: Diverter valves operate one outlet at a time or allow dual outlet use depending on valve type and configuration.

What Is a Cartridge Valve And How Does It Operate?

A cartridge valve is a shower valve that controls water flow and temperature using a replaceable internal cartridge, typically ceramic or thermostatic, operating with precision mixing and flow regulation between 6–15 litres per minute across pressure ranges of 0.2 — 5 bar.

The operation of a cartridge valve is given below:

Control Water Mixing: Cartridge valves regulate hot and cold water blending through internal channels within the cartridge body.
Use Ceramic Discs: Ceramic disc cartridges open and close water pathways with high durability exceeding 200,000 operation cycles.
Adjust Flow Rate: Cartridge valves manage flow output between 6 to 15 litres per minute depending on handle position and system pressure.
Enable Temperature Control: Cartridge valves adjust temperature based on rotational or lever movement linked directly to the cartridge mechanism.
Allow Easy Replacement: Cartridge valves use removable units that simplify maintenance and reduce repair complexity.
Support Multiple Systems: Cartridge valves function across low and high-pressure systems between 0.2 to 5 bar, including combi and gravity-fed setups.

What Are Ceramic Disk Valves And Their Benefits?

Ceramic disk valves are shower valves that control water flow and temperature using two polished ceramic discs that slide against each other, delivering precise sealing, low friction operation, and durability exceeding 200,000–500,000 cycles across 0.2–5 bar pressure systems.

The benefits of ceramic disk valves are given below:

Provide High Durability: Ceramic disk valves operate beyond 200,000–500,000 cycles due to wear-resistant ceramic surfaces.
Ensure Leak Prevention: Ceramic disk valves create tight seals through flat disc contact, reducing drip rates to near zero under standard pressure conditions.
Enable Smooth Operation: Ceramic disk valves allow consistent handle movement with low friction, improving control precision during adjustment.
Maintain Flow Accuracy: Ceramic disk valves regulate water flow between 6 to 15 litres per minute with stable output across pressure variations.
Reduce Maintenance Needs: Ceramic disk valves resist mineral buildup and corrosion, decreasing maintenance frequency compared to rubber washer systems.
Support Temperature Control: Ceramic disk valves assist accurate hot and cold water blending through controlled disc alignment.

What Are Ball Valves?

Ball valves are shower valves that control water flow and temperature using a rotating hollow ball with internal ports, enabling combined mixing and directional flow control within 6–15 litres per minute across pressure ranges of 0.5 — 5 bar.

The working mechanism of ball valves is given below:

Use Rotating Ball: Ball valves operate through a spherical ball with internal ports that rotate to control water direction and mixing.
Control Temperature Mixing: Ball valves blend hot and cold water by aligning inlet ports based on handle movement.
Regulate Flow Rate: Ball valves manage water flow between 6 to 15 litres per minute depending on ball position and system pressure.
Operate Single Handle: Ball valves use a single lever to control both temperature and flow simultaneously.
Seal With Springs: Ball valves include rubber seals and spring-loaded seats to maintain watertight performance.
Support Medium Pressure: Ball valves function effectively within 0.5 to 5 bar pressure systems in residential installations.

What Are Check Valves?

Check valves are one-way flow control valves that allow water to move in a single direction and prevent backflow by automatically closing when reverse pressure occurs, protecting water systems from contamination across pressure ranges of 0.2 — 5 bar.

The working mechanism of check valves is given below:

Allow One-Way Flow: Check valves permit water movement in a single direction through internal spring-loaded or gravity-based mechanisms.
Prevent Backflow: Check valves close automatically when reverse pressure occurs, blocking contaminated water from re-entering the supply.
Use Internal Components: Check valves operate using discs, balls, or spring-loaded plungers that seal against reverse flow.
Maintain System Safety: Check valves protect potable water systems from cross-contamination caused by pressure imbalances.
Operate Across Pressures: Check valves function effectively within 0.2 to 5 bar pressure systems in residential plumbing setups.
Support Valve Integration: Check valves integrate with shower valves and pipe systems to ensure consistent directional flow control.

How Do Valve Types Affect Shower Pressure And Flow Rate?

Valve types affect shower pressure and flow rate by controlling water restriction, mixing efficiency, and pressure balance, resulting in output variations between 6–20 litres per minute and pressure performance across 0.2 — 5 bar depending on valve design and internal mechanism. Shower valve design determines how water passes through internal channels, cartridges, and restrictors. Manual mixer valves depend on supply pressure, creating variable flow output in low-pressure systems.

Manual Valve Impact

Manual mixer valves rely on supply pressure, resulting in flow rates between 6 to 12 litres per minute in low-pressure systems. Temperature and flow fluctuate during simultaneous water usage. Lack of internal stabilisation causes inconsistent output. Manual valves suit gravity-fed systems with predictable demand.

Thermostatic Control

Thermostatic valves maintain stable flow between 8 to 15 litres per minute by adjusting internal mixing ratios automatically. Temperature stability remains within ±1°C under pressure variation. Flow consistency improves across multi-outlet usage. Thermostatic valves support high-pressure systems up to 5 bar.

Pressure Balancing Effect

Pressure-balancing valves regulate flow by equalising hot and cold pressure, maintaining output within 8 to 14 litres per minute. Flow drops reduce during simultaneous usage. Internal pistons adjust water ratio dynamically. Pressure balancing improves performance in medium-pressure systems between 1 to 3 bar.

Diverter Flow Distribution

Diverter valves split water flow between 2 to 3 outlets, reducing individual outlet flow to 6–10 litres per minute when multiple outlets operate. Single outlet mode maintains higher flow. Flow distribution depends on diverter configuration. Multi-outlet systems require sufficient supply pressure.

Cartridge Restriction

Cartridge design influences flow restriction and mixing efficiency, controlling output between 6 to 15 litres per minute. Ceramic cartridges provide smoother flow with reduced resistance. Worn cartridges reduce flow efficiency. Cartridge quality directly impacts pressure consistency and output stability.

How Do Valves Perform In Low-Pressure Gravity-Fed Systems?

Valves in low-pressure gravity-fed systems operate within 0.2–1 bar pressure ranges, delivering reduced flow rates between 6–8 litres per minute, with performance depending on valve design, pipe layout, and vertical tank height influencing pressure generation.

The performance characteristics of valves in low-pressure gravity-fed systems are given below:

Deliver Lower Flow Rates: Valves produce output between 6 to 8 litres per minute due to limited pressure generated by gravity-fed tank height.
Depend On Tank Height: Valves rely on vertical distance between water tank and outlet, where every 1 metre height generates approximately 0.1 bar pressure.
Require Low-Pressure Compatibility: Valves designed for low-pressure systems maintain better flow efficiency compared to high-pressure valve types.
Experience Temperature Fluctuation: Manual and basic valves show temperature variation within ±3–5°C during simultaneous water usage.
Operate With Reduced Force: Valves function with lower internal resistance to allow adequate flow under limited pressure conditions.
Limit Multi-Outlet Use: Valves struggle to maintain consistent flow across multiple outlets due to pressure drop during distribution.
Improve With Pump Support: Valves increase performance when booster pumps raise system pressure above 1 bar.

What Pressure Range Do Shower Systems Typically Operate?

Shower systems typically operate within pressure ranges of 0.2 to 5 bar, with low-pressure systems delivering 0.2–1 bar, medium-pressure systems delivering 1–3 bar, and high-pressure systems delivering 3–5 bar, directly influencing flow rates between 6–20 litres per minute. Shower system pressure depends on water supply type, plumbing design, and valve configuration. Gravity-fed systems generate 0.2 to 1 bar pressure from tank height, producing lower flow rates.

Low Pressure Systems

Low-pressure shower systems operate between 0.2 to 1 bar, commonly found in gravity-fed installations using elevated water tanks. Flow rates range between 6 to 8 litres per minute. Pressure depends on vertical distance between tank and outlet. Low-pressure systems require compatible valves for stable performance.

Medium Pressure Systems

Medium-pressure shower systems operate between 1 to 3 bar, typically supplied by combi boilers or unvented cylinders. Flow rates range between 8 to 15 litres per minute. Pressure stability supports consistent temperature control. Medium-pressure systems suit most residential shower configurations.

High Pressure Systems

High-pressure shower systems operate between 3 to 5 bar, supplied by mains pressure or booster pumps. Flow rates exceed 15 litres per minute, reaching up to 20 litres per minute in optimal conditions. High-pressure systems deliver stronger spray intensity and improved coverage.

Pressure And Flow Relation

Water pressure directly influences flow rate, with higher pressure increasing output volume per minute. Systems operating at 0.5 bar produce lower flow compared to systems above 3 bar. Pipe diameter and valve restriction affect final output. Balanced systems optimise both pressure and flow efficiency.

Valve Compatibility

Shower valves must match system pressure to maintain performance consistency. Thermostatic valves operate across 0.5 to 5 bar. Manual valves perform effectively below 1 bar. Pressure-balancing valves function best between 1 to 3 bar. Proper compatibility ensures stable operation and longevity.

What Valve Types Work Best With Combi Boilers?

Thermostatic valves and pressure-balancing valves work best with combi boilers due to stable pressure supply between 1–3 bar, delivering consistent flow rates of 8–15 litres per minute with temperature control accuracy within ±1–3°C.

The suitable valve types for combi boiler systems are given below:

Use Thermostatic Valves: Thermostatic valves maintain temperature within ±1°C by adjusting hot and cold ratios automatically under stable combi boiler pressure.
Use Pressure-Balancing Valves: Pressure-balancing valves regulate pressure differences to maintain temperature consistency within ±3°C during simultaneous water usage.
Support High Flow Output: Combi boiler systems deliver flow rates between 8 to 15 litres per minute, supporting efficient valve performance.
Enable Multi-Outlet Compatibility: Thermostatic valves with diverters support multiple outlets without significant temperature fluctuation.
Ensure Stable Pressure Operation: Combi boilers provide pressurised water supply between 1 to 3 bar, allowing valves to function with consistent output.
Avoid Low-Pressure Valves: Manual mixer valves designed for gravity-fed systems reduce efficiency in combi boiler setups due to mismatch in pressure handling.

How Often Should Shower Valve Cartridges Be Replaced?

Shower valve cartridges require replacement every 3–5 years or after 200,000–500,000 operation cycles, with earlier replacement triggered by reduced flow, leakage, or temperature inconsistency in systems operating between 0.2–5 bar pressure ranges.

The replacement frequency and indicators are given below:

Follow Replacement Interval: Shower valve cartridges last 3 to 5 years under standard residential usage conditions.
Monitor Usage Cycles: Cartridge lifespan reaches 200,000 to 500,000 operation cycles depending on frequency of use.
Identify Flow Reduction: Cartridge wear reduces flow rates below 6–15 litres per minute range.
Detect Temperature Instability: Cartridge failure causes temperature variation beyond ±3–5°C during operation.
Observe Leakage Signs: Worn cartridges create dripping outlets and internal leakage through damaged seals.
Assess Water Quality Impact: Hard water conditions accelerate mineral buildup, reducing cartridge lifespan to 2–3 years.
Schedule Annual Inspection: Routine inspection every 12 months identifies early wear and maintains system performance.

How Do You Diagnose A Faulty Shower Valve?

A faulty shower valve is diagnosed by identifying 6 key symptoms including temperature instability beyond ±3–5°C, reduced flow below 6 litres per minute, persistent leakage, stiff handle movement, pressure imbalance, and delayed response to adjustments within 0.2–5 bar systems.

The diagnostic steps for a faulty shower valve are given below:

Check Temperature Stability: Temperature variation beyond ±3–5°C during use indicates cartridge wear or pressure imbalance.
Measure Flow Rate: Flow output dropping below 6–15 litres per minute signals internal blockage or cartridge restriction.
Inspect For Leaks: Continuous dripping from the outlet indicates damaged seals or worn internal components.
Test Handle Movement: Stiff or loose handle operation indicates cartridge degradation or internal misalignment.
Assess Pressure Balance: Sudden temperature spikes during simultaneous water use indicate pressure-balancing failure.
Observe Response Time: Delayed adjustment response beyond normal operation indicates internal mechanism wear.
Examine Noise Levels: Unusual noises such as whistling or knocking indicate pressure irregularities or valve obstruction.

How Do You Repair Or Replace A Faulty Shower Valve?

Repairing or replacing a faulty shower valve involves isolating water supply, removing the handle and trim, accessing the internal cartridge or valve body, replacing worn components, and restoring operation to maintain flow rates between 6–15 litres per minute and temperature stability within ±1–5°C.

The repair or replacement process is given below:

Turn Off Water Supply: Shut off main or local isolation valves to stop water flow before starting the repair process.
Remove Handle And Trim: Detach the valve handle, faceplate, and decorative trim to expose the internal valve assembly.
Access Internal Cartridge: Locate and remove the retaining clip or nut to extract the cartridge from the valve body.
Inspect Valve Components: Examine cartridge, seals, and internal parts for wear, mineral buildup, or damage affecting performance.
Replace Faulty Cartridge: Install a new compatible cartridge aligned with inlet ports to restore proper water mixing and flow.
Reassemble Valve Unit: Refit all components including trim, handle, and securing parts in correct sequence.
Restore Water Supply: Turn water supply back on and test for stable flow rates, leak-free operation, and consistent temperature control.

What Tools Are Required For Shower Valve Replacement?

Shower valve replacement requires 8 essential tools including adjustable spanners, screwdrivers, Allen keys, cartridge pullers, pipe cutters, PTFE tape, pliers, and a voltage tester for safe removal and installation within 0.2–5 bar plumbing systems.

The tools required for shower valve replacement are given below:

Use Adjustable Spanner: Adjustable spanners loosen and tighten nuts and fittings connected to the valve body.
Use Screwdrivers: Flathead and Phillips screwdrivers remove handle screws, faceplates, and mounting components.
Use Allen Keys: Allen keys detach concealed handle fixings secured with hex screws.
Use Cartridge Puller: Cartridge pullers extract stuck or seized cartridges without damaging the valve housing.
Use Pipe Cutter: Pipe cutters trim copper or plastic pipes for accurate fitting during valve replacement.
Use PTFE Tape: PTFE tape seals threaded connections to prevent leaks under pressure between 0.2 to 5 bar.
Use Pliers: Pliers grip small components and assist in removing clips or retaining rings.
Use Voltage Tester: Voltage testers confirm absence of electrical current near electric shower systems for safe operation.

What Maintenance Extends Shower Valve Lifespan

Shower valve lifespan extends to 5–10 years through 6 maintenance actions including regular cleaning, cartridge inspection, limescale removal, pressure control, seal replacement, and annual system checks, maintaining flow rates of 6–15 litres per minute and temperature stability within ±1–5°C.

The maintenance actions that extend shower valve lifespan are given below:

Clean Internal Components: Remove debris and sediment from valve parts to maintain consistent water flow and prevent blockages.
Inspect Cartridge Condition: Check cartridge wear every 12 months to detect reduced performance or early failure signs.
Remove Limescale Deposits: Descale components using suitable solutions to prevent mineral buildup in hard water systems within 2–3 year cycles.
Control Water Pressure: Maintain system pressure within 0.2 to 5 bar to reduce stress on internal valve mechanisms.
Replace Worn Seals: Change rubber seals and O-rings to prevent leakage and maintain watertight operation.
Perform Annual Checks: Conduct full valve inspection annually to ensure stable temperature control and consistent flow performance.

Summing Up

Different types of shower valves determine water temperature accuracy, flow efficiency, pressure stability, and outlet control across 0.2–5 bar systems with output between 6–20 litres per minute, directly influencing safety, performance, and durability within a shower installation.

Manual mixing valves provide basic control with higher temperature variation, while thermostatic valves maintain precise ±1°C stability with integrated anti-scald protection. Pressure-balancing valves manage supply fluctuations, and diverter valves distribute water across multiple outlets with controlled flow. Cartridge-based systems, including ceramic and thermostatic designs, define lifespan between 3–5 years with operational durability exceeding 200,000 cycles.

System compatibility remains critical, as gravity-fed systems operate at 0.2 — 1 bar, combi boiler systems at 1–3 bar, and high-pressure systems at 3–5 bar, each requiring matched valve types for optimal output. Performance consistency depends on correct valve selection, accurate installation, and maintenance actions such as descaling, seal replacement, and annual inspection, ensuring stable temperature, efficient flow, and long-term operational reliability.

Bathroom Mountain See author's posts
