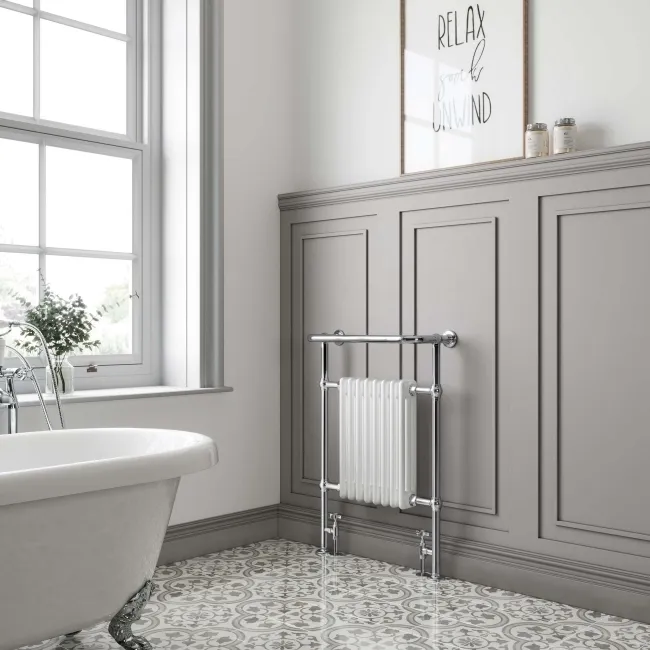

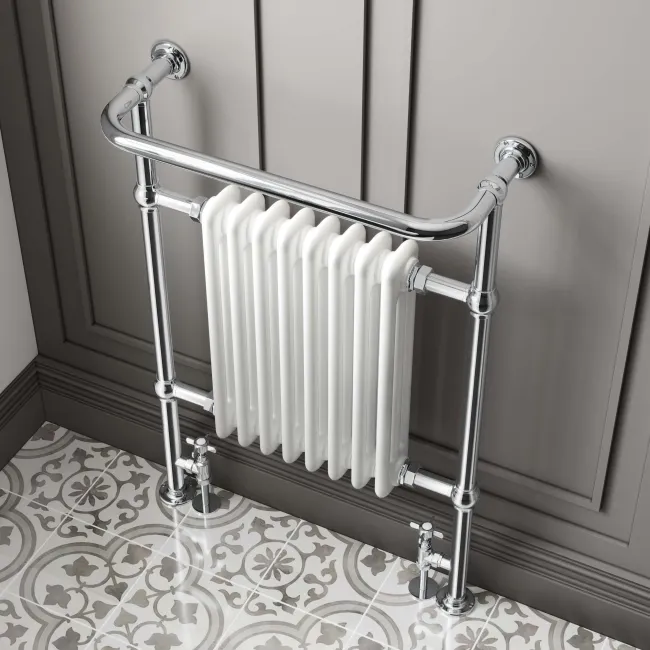

Gibraltar Large White Traditional Heated Towel Radiator (With Overhanging Rail)
Height (mm)
Width (mm)

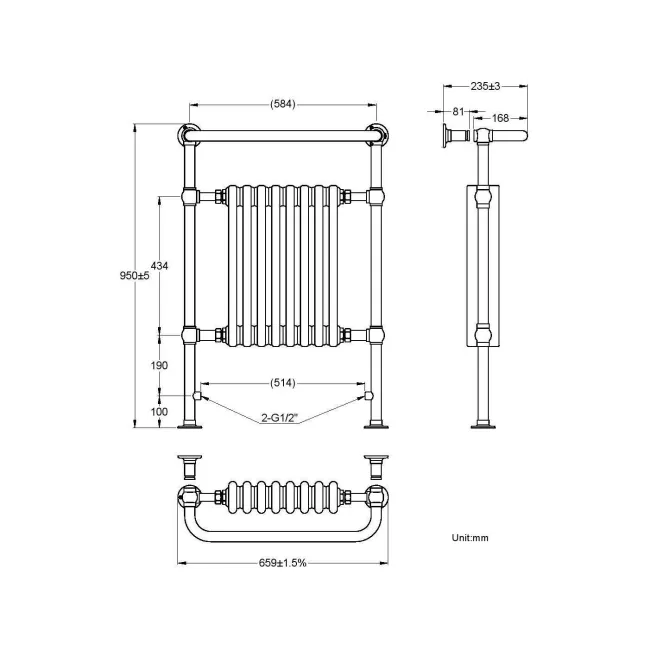

Dimensions
Height
950mm
Width
660mm
Depth
235mm
Weight
20.41kg
Technical Features
Installation type
Central Heating
Material
Low Carbon Steel
Certification
Comply With BS EN 442/ ISO9001:2008 /100% Leak Tested
Fitting
Floor Standing
Type
Heated Towel Rail
Shape
Round
Volumn in Litres
8.19
BTU at Delta T30
925
BTU at Delta T50
1740
BTU at Delta T65
2407
Watts at Delta T30
271
Watts at Delta T50
510
Watts at Delta T65
705
Wall to Centre Tapping
96
Pipe Centres (mm) Installation dependent
514
Projection from Wall
235mm
Tube Diameter
32mm
Number of Columns
8
Inlet Connections
1/2"
Orientation
Vertical
Blanking and Bleed Plug Included
Yes
Valves Included
No
Style
Colour
Gloss White And Chrome
Shape
Round
Finish
Gloss
Style
Traditional
Heating Type
Central Heating
Range
Gibraltar
Type
Heated Towel Rail
Guarantee
Length
5 Years
