Types of Radiators: By Design, Materials, Heat Output, Installation, Application and More

Radiators are classified by design, material, installation, heat output, control type, size, safety, and energy efficiency, defining how heat is produced, transferred, and controlled in a space. The correct radiator selection depends on heating system compatibility, room dimensions, insulation level, and total lifecycle cost.

Aluminium radiators offer fast response and high efficiency, while cast iron radiators ensure maximum durability and long heat retention. Stainless steel models provide corrosion resistance in humid environments, and mild steel radiators balance cost and performance. Radiators are further divided by mounting orientation, historical style, environmental impact, and safety standards, including BS EN 442 and NHS HTM 08-03 compliance.

Thermostatic, smart, and dual-fuel control systems enhance energy regulation and achieve up to 20 % energy savings. Size and panel classification, such as Type 10, Type 22, or Type 33, determine heat distribution efficiency, while modern low-temperature and hybrid renewable models align with Lot 20 EcoDesign standards. Selecting the best radiator involves balancing output, efficiency, material, safety, and cost, ensuring long-term comfort, reduced carbon load, and compliance with UK performance regulations.

What Are Radiators, and Why Does Type Matter?

A radiator is a heat-emitting appliance that transfers thermal energy from hot water or steam to indoor air. According to the Building Services Research and Information Association (BSRIA, Heating Systems Division, 2023), radiators distribute up to 85 % of domestic space heating in UK homes. The type of radiator matters because construction material, design geometry, and installation method directly affect heat output, energy efficiency, and room comfort balance.

Radiators function through convection and radiation mechanisms, where water heated by a boiler circulates through internal channels, releasing thermal energy into the surrounding air mass. Research by the University of Sheffield’s Department of Mechanical Engineering (2022) confirmed that panel surface area and fin density increase convective efficiency by 12 – 18 %, depending on airflow conditions.

Different radiator types, such as steel panel, cast iron, aluminium, or electric convector, show measurable differences in thermal inertia and emission speed. For example, aluminium radiators deliver full heat output 30 % faster than cast-iron models due to lower thermal mass. Design categories like vertical, horizontal, column, and designer radiators influence wall coverage and circulation dynamics, determining optimal placement relative to room volume and insulation.

Choosing the correct radiator type ensures precise heat distribution, reduced energy waste, and balanced thermal comfort across zones. Studies from the UK Department for Energy Security and Net Zero (2024) found that type-appropriate radiator selection can cut annual heating costs by 9 – 14 % in modern sealed systems. Radiator type therefore defines performance efficiency, not merely visual design.

What Are the Main Types of Radiators?

Radiators are classified by design structure, construction material, heat output method, installation type, and energy source. The main types of radiators are panel, column, convector, towel, and electric radiators. According to the Chartered Institute of Building Services Engineers (CIBSE, Heating and Ventilation Group, 2023), these five categories account for over 95 % of installed radiators in the United Kingdom. Each type demonstrates unique thermal performance, surface geometry, and operational efficiency relevant to both domestic and commercial heating systems.

Panel Radiators

Panel radiators are flat steel heat emitters that use internal water channels and convector fins to distribute thermal energy. Research by the University of Nottingham’s Department of Architecture and Built Environment (2023) recorded that double-panel designs increase heat output by 22 % compared to single-panel units, delivering up to 3.5 kW per module. Their compact form, rapid response, and installation ease make them the standard choice in UK hydronic systems.

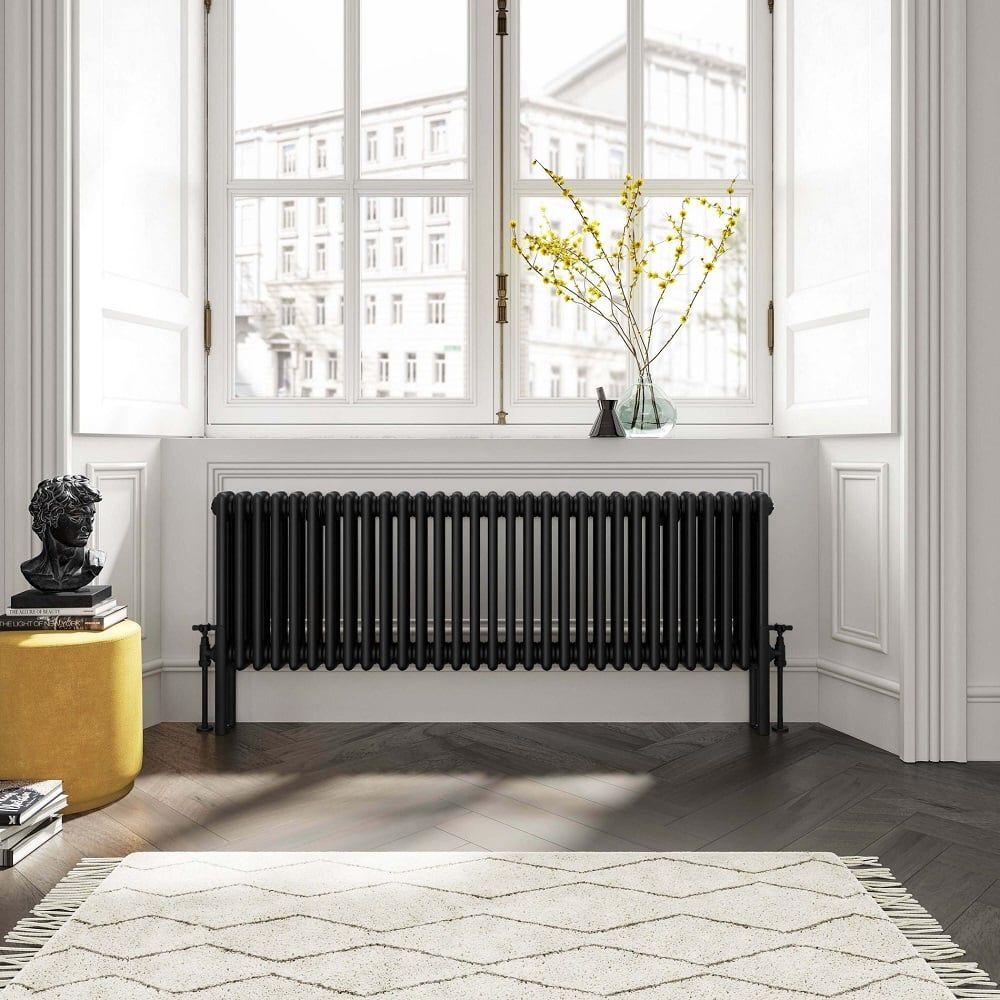

Column Radiators

Column radiators use multiple vertical tubes of steel or cast iron to maximise surface area and thermal inertia. The high mass retains heat for up to 3 hours after circulation stops, ensuring stable temperature gradients in large or high-ceilinged rooms. The traditional geometry also supports heritage-style interiors while maintaining consistent radiant performance.

Convector Radiators

Convector radiators rely on integrated fins that increase air movement and accelerate convective heat transfer. Experimental analysis by the University of Salford’s Energy House Laboratory (2022) found a 15 % faster warm-up rate than single-panel radiators under equal load conditions. Convector systems are ideal for energy-efficient buildings requiring rapid room heat recovery.

Towel Radiators

Towel radiators combine convective heating and surface drying within a corrosion-resistant steel or chrome frame. Their typical thermal range extends from 150 to 800 W, depending on bar count and height. They maintain balanced humidity levels in bathrooms and serve dual functional and thermal roles in confined wet zones.

Electric Radiators

Electric radiators transform electrical energy directly into heat using internal resistive elements. They function autonomously from central boilers, providing 100 % electrical-to-heat conversion efficiency and programmable zone control. Data from the Department for Energy Security and Net Zero (2024) indicates that decentralised electric heating can reduce total household energy demand by 11 % in part-occupied homes.

What Are the Types of Radiators by Design?

Radiators by design are classified as panel, column, convector, designer, baseboard, towel, and integrated bench radiators. Design variation defines how surface geometry, airflow dynamics, and installation height influence heat output, energy conversion efficiency, and comfort uniformity. Each type represents a different engineering approach to spatial heating performance.

Panel Radiators

Panel radiators are flat steel structures that emit heat through combined radiation and convection. Internal water channels and pressed convector fins increase contact surface area, producing rapid temperature response. Single-panel designs suit compact rooms, while double or triple-panel configurations provide enhanced heat capacity for larger interiors. Their symmetrical layout aligns with modern wall architecture, maintaining a slim aesthetic and efficient wall clearance.

Column Radiators

Column radiators feature multiple hollow vertical tubes arranged in rows to maximise radiant area and heat retention. The design promotes strong air circulation between columns, ensuring consistent temperature distribution. High-density steel or cast-iron bodies retain warmth for extended durations, providing steady post-operation heat. Column radiators are common in heritage properties and loft conversions where architectural style and longevity are valued equally.

Convector Radiators

Convector radiators incorporate internal fins or corrugated panels to intensify air movement and heat convection. The fin structure multiplies effective surface area, allowing quicker room heating and balanced airflow. This design performs best in well-insulated homes where heat recovery speed and control precision are crucial. Compact dimensions and high output ratio make convector radiators a preferred choice for energy-efficient hydronic systems.

Designer Radiators

Designer radiators transform heating appliances into architectural elements through creative geometry and advanced materials. Contemporary forms include sculpted, curved, ladder, and modular patterns that complement modern interiors. Aluminium, glass, or stainless-steel construction ensures both high thermal conductivity and visual sophistication. Designer radiators often serve dual purposes, heating and aesthetic enhancement, bridging interior design and environmental comfort.

Baseboard Radiators

Baseboard radiators, also known as skirting or plinth radiators, distribute heat continuously along the lower wall perimeter. Their elongated design creates uniform temperature gradients from floor to ceiling. The low installation height supports concealed integration under windows or cabinetry. Baseboard systems help reduce cold drafts and maintain consistent warmth across open-plan layouts.

Towel Radiators

Towel radiators combine heating and drying functions within vertical or ladder-style frames. Designed for bathrooms and utility areas, they emit radiant and convective heat while maintaining towel hygiene. Chrome or stainless-steel finishes prevent corrosion and enhance heat reflection. Dual-fuel towel radiators can connect to both central systems and electric elements, improving seasonal flexibility.

Integrated Bench Radiators

Integrated bench radiators merge seating structures with hidden convector systems to provide discrete perimeter heating. Built into window benches or alcoves, they use finned coils and upward air vents to distribute warm air without visible panels. The design suits conservatories, bay windows, and public waiting areas where compact integration and architectural uniformity are essential.

Which Radiator Material Is Best for Your Needs?

Radiator materials define heat transfer speed, energy retention, corrosion resistance, and system longevity. The main radiator materials are steel, aluminium, cast iron, stainless steel, copper, composite alloys, and chrome-plated finishes. Each material influences thermal performance through unique conductivity, density, and environmental resistance properties, determining suitability for modern, traditional, or high-efficiency heating systems.

Steel Radiators

Steel radiators provide balanced heat output, structural durability, and versatile design adaptability. Mild steel construction supports uniform water circulation and consistent temperature emission. Powder-coated finishes prevent corrosion inside closed hydronic systems, sustaining performance for more than 15 years. Steel remains the standard for panel and designer radiators used in central heating because it maintains equilibrium between heat retention and responsive output across varying room sizes.

Aluminium Radiators

Aluminium radiators deliver the fastest thermal response among all common radiator materials. The conductivity of aluminium averages 237 W/m·K, enabling instant heat emission and low energy waste. Lightweight design reduces boiler load and system water volume, improving overall efficiency in low-temperature heating setups. Aluminium’s recyclability and corrosion resistance make it optimal for eco-oriented homes and spaces requiring rapid temperature recovery, such as kitchens or living rooms.

Cast Iron Radiators

Cast iron radiators retain heat for the longest duration and provide steady radiant comfort. High-density alloy mass stores energy and releases warmth for up to three hours after heating ceases. The material’s slow response suits heritage and period buildings where continuous background heat supports comfort stability. Cast iron radiators also enhance acoustic absorption and durability, reflecting both traditional design and enduring thermal performance.

Stainless Steel Radiators

Stainless steel radiators combine corrosion resistance with contemporary design precision. Non-porous metallic composition prevents oxidation, making stainless steel ideal for bathrooms, kitchens, and coastal properties. The smooth, polished finish preserves visual integrity and ensures consistent emission efficiency over 20 years. Stainless steel provides moderate conductivity while resisting moisture degradation, ensuring balanced performance in humid environments.

Copper Radiators

Copper radiators achieve the highest thermal conductivity among radiator materials, averaging 401 W/m·K. The superior conduction rate produces instant heat transfer with minimal energy loss. Copper’s natural antimicrobial properties improve hygiene, making it preferred for medical, catering, and laboratory facilities. Although initial cost is higher, copper radiators deliver unmatched energy efficiency, heat stability, and hygiene reliability for performance-focused heating systems.

Composite Radiators

Composite radiators integrate aluminium cores, polymer shells, or reinforced steel frames to balance speed, weight, and durability. Hybrid layering enhances both conduction and structural rigidity while preventing corrosion. Reduced internal volume lowers water demand by up to 18 %, improving boiler efficiency and pump lifespan. Composite radiators represent the next generation of energy-optimised, low-mass heating technology designed for sustainable buildings.

Chrome-Plated Radiators

Chrome-plated radiators feature electroplated metallic finishes that add surface protection and aesthetic refinement. The reflective layer enhances corrosion resistance and hygiene but slightly reduces heat emissivity by 5–10 % due to lower surface radiation. Chrome-plated finishes are common in bathrooms and designer interiors, offering a balance between hygiene, durability, and decorative appeal.

Hybrid and Dual-Metal Radiators

Hybrid or dual-metal radiators combine aluminium heating cores with steel, glass, or composite outer shells to unify heat speed and retention. This multi-layer design improves convection control while maintaining external rigidity and visual symmetry. The configuration increases efficiency by approximately 15 % compared with single-material models under equal load conditions.

What Are the Types of Radiators by Heat Output?

Radiators by heat output are classified as single panel, double panel, double panel plus convector, triple panel, and high-output radiators. Heat output determines the rate of energy transfer from the water inside the radiator to the surrounding air, measured in British Thermal Units (BTU) or kilowatts (kW). According to the Chartered Institute of Building Services Engineers (CIBSE, 2023), radiator heat output depends on surface area, fin density, and water temperature differential, which together define efficiency and room heating speed.

Single Panel Radiators

Single panel radiators consist of one flat steel panel and emit heat through a combination of radiation and convection. Their low thermal mass produces moderate output, typically ranging between 1.0 and 1.8 kW per unit, suitable for small bedrooms or hallways. The minimal structure promotes fast heating response but limited heat retention, making single panel radiators effective in well-insulated or compact spaces.

Double Panel Radiators

Double panel radiators feature two parallel water panels that double the surface area for higher thermal emission. Average output ranges between 1.8 and 3.5 kW, providing greater coverage for medium-sized living spaces. The twin-layer structure retains warmth longer, ensuring even heat distribution and improved energy consistency compared to single-panel variants.

Double Panel Plus Convector Radiators

Double panel plus convector radiators integrate fins between two water panels to accelerate air circulation and heat transfer. The added fin density enhances convection by up to 25 %, producing outputs between 3.0 and 4.5 kW depending on dimensions. This configuration provides strong efficiency in family homes and open-plan areas where rapid warm-up and steady comfort are priorities.

Triple Panel Radiators

Triple panel radiators use three water-filled layers with multiple convector fins to maximise BTU delivery within limited wall space. They generate up to 5.5 kW of heat output, serving large rooms or high-ceilinged areas requiring sustained heating. The increased surface area improves energy conversion rate while retaining compact depth, ensuring efficient temperature regulation in colder climates.

High-Output Radiators

High-output radiators are engineered for spaces demanding superior thermal intensity, such as conservatories or open-plan lofts. These models often combine multi-panel steel construction, enhanced fin arrays, or aluminium cores to deliver outputs exceeding 6.0 kW. Their design supports low-temperature systems, underfloor integration, and hybrid renewable heating networks where consistent high performance is essential.

Low Surface Temperature (LST) Radiators

Low Surface Temperature radiators deliver controlled heat emission with maximum surface limits below 43°C for safety-critical environments. LST units provide stable convection-driven warmth without overheating risks, making them ideal for healthcare, educational, and childcare facilities. Despite lower radiant intensity, internal fin arrays maintain efficient energy use while ensuring safe touch surfaces.

What Are the Different Types of Radiators Based on Installation Options?

Radiators based on installation options are classified as wall-mounted, floor-mounted, freestanding, recessed, and plinth-integrated radiators. Installation configuration determines heat dispersion pattern, air circulation flow, and space utilisation efficiency. Each type adapts to specific architectural layouts, load-bearing capacity, and design preferences.

Wall-Mounted Radiators

Wall-mounted radiators are fixed to vertical surfaces using brackets and are the most common installation type in residential heating. The elevated position enhances convective airflow, distributing heat evenly throughout the room. Wall-mounted models optimise floor space and suit compact interiors or standard hydronic heating systems.

Floor-Mounted Radiators

Floor-mounted radiators rest on structural feet or base stands that support heavier units such as cast iron or large column models. This installation method improves stability, particularly where wall strength or height is limited. Floor-mounted systems allow flexible positioning beneath windows or along partition walls, enhancing both accessibility and maintenance.

Freestanding Radiators

Freestanding radiators are self-supporting units placed independently of wall or floor fixtures. They are commonly used for temporary heating zones, open-plan areas, or spaces with exposed architectural layouts. Portable freestanding electric radiators provide mobility and can operate as standalone heating solutions without plumbing integration.

Recessed Radiators

Recessed radiators are installed within wall cavities or under window sills to create a concealed heating source. The flush integration maintains aesthetic minimalism while conserving room area. Air grilles or vents release warm air into the environment, achieving consistent temperature control with minimal visual disruption.

Plinth and Skirting Radiators

Plinth or skirting radiators are linear heating systems fitted along baseboards or cabinetry bases. Their low placement generates continuous warm air curtains across the room perimeter, reducing cold floor zones and condensation near windows. These radiators are ideal for kitchens, conservatories, and open-plan layouts requiring unobtrusive thermal distribution.

Bench and Integrated Radiators

Bench or integrated radiators combine heating units with seating or architectural furniture. Typically installed under bay windows or within built-in benches, they provide discreet perimeter heating and ergonomic use of vertical and horizontal space. Integrated radiators maintain comfort while complementing interior design cohesion.

What Are the Radiator Types by Heating System?

Radiators by heating system are classified as hot water, steam, electric, dual-fuel, and oil-filled radiators. Heating system configuration determines the energy source, circulation mechanism, and temperature regulation method that define radiator performance, responsiveness, and installation requirements.

Hot Water Radiators

Hot water radiators operate within central hydronic systems that circulate heated water from a boiler through connected panels. The closed-loop system maintains a stable flow between 60–80°C, providing consistent convection and radiant warmth. Hot water radiators are the most common type in UK residential buildings because they balance efficiency, controllability, and uniform heat output across multiple zones.

Steam Radiators

Steam radiators transfer heat using pressurised steam from a boiler that condenses inside the radiator body. The phase change process releases high-intensity thermal energy, ideal for older or industrial heating networks. Steam systems generate strong radiant heat but require reinforced piping, air vents, and pressure regulation. They are less energy-efficient than modern hydronic systems but remain reliable in heritage or multi-storey buildings with existing infrastructure.

Electric Radiators

Electric radiators convert electrical energy directly into heat through internal resistive elements. These systems function independently of central boilers, achieving 100 % electrical-to-heat conversion efficiency. Thermostatic and programmable controls enable precise zone management and lower standby loss. Electric radiators suit properties without gas connections or where flexible, room-specific control is required.

Dual-Fuel Radiators

Dual-fuel radiators combine central hot water operation with electric heating elements for seasonal flexibility. In winter, they run on boiler-fed water; in summer, the electric element functions independently for selective room heating. This hybrid design reduces boiler dependency, improving energy optimisation in mixed-occupancy or part-time residences. Dual-fuel systems are common in bathrooms, where standalone electric operation supports towel drying during warmer months.

Oil-Filled Radiators

Oil-filled radiators are sealed electric units that heat thermally conductive oil to store and release warmth gradually. The dense oil medium retains heat longer than air, producing steady convection without rapid cycling. These portable radiators are suitable for temporary or supplemental heating, maintaining uniform temperature release and silent operation in bedrooms or offices.

What Are the Types of Radiators by Room Application?

Radiators by room application are classified according to spatial function, usage frequency, and environmental conditions. The main categories include living room, bedroom, bathroom, kitchen, hallway, conservatory, dining room, utility room, office, basement, garage, loft, nursery, cloakroom, and commercial space radiators. Each type aligns with distinct thermal demand, airflow pattern, safety requirement, and interior design purpose.

Living Room Radiators

Living room radiators provide high thermal capacity and visual integration for central household areas. Double or triple-panel radiators, vertical designer units, and column styles deliver outputs between 3.0–5.0 kW, ensuring quick response and balanced comfort. Designer steel or aluminium finishes enhance décor alignment while maintaining steady radiant performance.

Bedroom Radiators

Bedroom radiators supply consistent, silent heat for nocturnal comfort and air stability. Single or double-panel convector radiators operate efficiently at 18–20°C room equilibrium, offering calm, energy-efficient heating. Compact horizontal radiators beneath windows promote airflow while preserving furniture space and low acoustic emission.

Bathroom Radiators

Bathroom radiators combine heat emission with towel drying under humid conditions. Chrome, stainless steel, or dual-fuel ladder designs resist corrosion while maintaining outputs from 300–800 W. Independent electric operation supports year-round drying without central heating use. Safety and hygiene define their structural and functional design.

Kitchen Radiators

Kitchen radiators produce fast, controllable heat within compact, moisture-rich environments. Aluminium or stainless-steel plinth and wall-mounted models achieve outputs of 1.5–2.5 kW with high convective speed. Slimline panels integrate under worktops or between cabinets to conserve usable wall area and manage variable heat loads.

Dining Room Radiators

Dining room radiators ensure stable warmth in semi-occupied spaces adjacent to living areas. Vertical steel panels or column radiators maintain visual balance and quick heat recovery. Moderate outputs between 2.0–3.5 kW sustain even comfort during intermittent use, complementing decorative room design without occupying key wall space.

Hallway Radiators

Hallway radiators generate rapid convection to prevent cold draughts at entry points. Vertical slim radiators or compact convector panels provide outputs between 1.0–1.8 kW, maintaining transitional temperature gradients between interior zones. Their narrow design enables unobstructed passage and efficient heat flow continuity.

Conservatory Radiators

Conservatory radiators counter glass-panel heat loss and maintain thermal equilibrium under solar variation. Aluminium or high-output steel radiators exceed 4.5 kW output for consistent comfort. Low-mounted or skirting installations create perimeter heating that stabilises ambient temperature throughout the year.

Utility Room Radiators

Utility room radiators supply rapid convective heat to dry laundry and reduce humidity. Compact steel panel or ladder radiators provide outputs of 1.2–2.0 kW, balancing energy efficiency and moisture removal. Their placement near exterior walls enhances air circulation and drying efficiency.

Office Radiators

Office radiators ensure stable daytime temperatures for productivity and comfort. Aluminium or designer vertical radiators provide fast response and precise thermostatic control between 19–21°C. Slimline panels integrate with desk layouts, ensuring optimal air distribution without creating hot zones.

Basement Radiators

Basement radiators overcome damp conditions and low ambient temperature through steady radiant heating. Cast iron, stainless steel, or oil-filled models supply continuous low-intensity heat to prevent condensation and mould formation. Wall or floor-mounted configurations improve thermal stability in subgrade environments.

Garage Radiators

Garage radiators deliver targeted heating for insulated workspaces or storage areas. Oil-filled electric or finned tubular radiators generate durable warmth without rapid cycling. Output typically ranges between 1.5–3.0 kW, suitable for workshops or automotive maintenance areas where frost prevention and comfort are required.

Loft Radiators

Loft radiators regulate temperature in converted attic spaces with variable insulation levels. Lightweight aluminium or double-panel convector radiators provide high responsiveness and minimal weight load on suspended floors. Compact vertical formats optimise limited wall surfaces under eaves.

Nursery Radiators

Nursery radiators ensure safe, gentle heating with strict temperature control and low surface exposure. Low Surface Temperature (LST) radiators maintain external casing below 43°C, preventing accidental contact burns. Outputs of 0.8–1.5 kW sustain uniform warmth without airflow noise, supporting infant comfort.

Cloakroom Radiators

Cloakroom radiators combine compact form with efficient heat distribution in confined entry zones. Slim towel or ladder-style units produce 300–600 W output to prevent dampness and maintain ambient comfort. Chrome-plated or stainless-steel materials ensure moisture resistance and long-term reliability.

Commercial and Retail Radiators

Commercial and retail radiators support large-volume spaces with high occupancy and dynamic air exchange. Industrial steel convectors, fan-assisted radiators, and trench systems deliver outputs above 8.0 kW per unit. These systems maintain comfort under frequent door openings and variable ventilation demands while optimising energy recovery.

What Are the Radiator Types by Size and Dimensions?

Radiators by size and dimensions are classified as compact, standard, vertical, horizontal, tall, wide, slimline, and low-level radiators. Dimensional variation directly determines heat output capacity, wall coverage, airflow dynamics, and spatial integration efficiency. Radiator sizing is measured by height, width, and depth, influencing both thermal distribution and aesthetic proportion within different interior layouts.

Compact Radiators

Compact radiators are small-scale units designed for confined spaces or low heat demand zones. Typical dimensions range from 400 mm height × 600 mm width, producing outputs between 0.8–1.2 kW. Their shallow profile allows easy placement in cloakrooms, hallways, or under counters. Compact radiators provide fast convective heat with minimal energy consumption, optimising temperature control in smaller rooms.

Standard Radiators

Standard radiators represent the baseline size category used in most domestic heating systems. Common measurements include 600 mm height × 1000–1400 mm width, with outputs from 1.5–2.8 kW depending on panel configuration. Standard models balance surface area, responsiveness, and installation flexibility, making them ideal for medium-sized bedrooms, lounges, and offices.

Vertical Radiators

Vertical radiators feature elongated profiles that extend upward to maximise wall height utilisation. Heights range from 1200 mm to 2000 mm, while widths remain narrow between 300–600 mm. These radiators deliver strong heat output without consuming horizontal wall space, ideal for modern interiors, entryways, and open-plan designs. Vertical radiators also enhance convection through tall column geometry that promotes consistent air rise.

Horizontal Radiators

Horizontal radiators are the traditional format featuring wide rectangular orientation along lower wall sections. Common sizes include 600 mm height × 1000–2400 mm width, producing heat outputs between 2.0–5.0 kW. The design promotes balanced radiant and convective heating beneath windows, creating uniform temperature gradients and minimising cold draughts.

Tall Radiators

Tall radiators exceed 1800 mm in height and provide high-capacity heating with minimal floor usage. Constructed primarily from steel or aluminium, tall radiators generate up to 30 % greater convection rate due to extended air channel length. They are suited to large open spaces, high-ceilinged homes, and loft conversions requiring vertical thermal projection.

Wide Radiators

Wide radiators extend horizontally beyond 1800 mm width to distribute heat evenly across large wall spans. Their expansive surface enhances radiation uniformity and reduces thermal layering in large rooms. Outputs often exceed 4.5 kW, depending on panel density. Wide radiators support panoramic walls, open living areas, or spaces with multiple glazing panels.

Slimline Radiators

Slimline radiators utilise reduced depth, typically below 70 mm, for compact installation in narrow or high-traffic areas. The minimal projection ensures spatial economy without sacrificing heat output. Slimline panels are commonly made of high-conductivity aluminium to maintain rapid heat-up times with limited volume capacity, ideal for hallways and kitchens.

Low-Level Radiators

Low-level radiators feature short heights under 400 mm, designed for placement beneath panoramic windows or conservatory walls. Outputs range from 1.5–3.5 kW, depending on width and fin structure. These radiators prevent condensation on glazing surfaces and create balanced lower-level warmth in rooms with expansive glass exposure.

Compact Double and Triple Radiators

Compact double and triple radiators integrate additional panels and fins within minimal dimensions to boost efficiency in restricted spaces. The increased internal surface multiplies output by up to 40 % compared with single-panel formats. Compact multi-panel radiators deliver high performance where space and heat demand coexist, such as kitchens and small living zones.

What Are the Types of Radiators by Finish?

Radiators by finish are classified as matt, gloss, chrome, satin, metallic, brushed, powder-coated, and textured finishes. Finish type determines aesthetic appearance, surface durability, heat emissivity, and maintenance performance, influencing both design integration and energy efficiency.

Matt Finish Radiators

Matt finish radiators feature a non-reflective, smooth surface that diffuses light evenly. The muted appearance complements modern and industrial interiors while concealing minor dust or fingerprints. Matt coatings enhance colour depth and maintain a heat emissivity efficiency of over 90 %, making them both practical and visually balanced.

Gloss Finish Radiators

Gloss finish radiators display a highly reflective surface that amplifies brightness and visual contrast. The polished coating accentuates colour tones and adds a clean, sleek aesthetic to bathrooms and kitchens. Gloss finishes are easy to wipe clean but slightly reduce radiant efficiency due to higher light reflectivity.

Chrome Finish Radiators

Chrome finish radiators combine metallic plating with a mirror-polished appearance for a contemporary, high-shine look. The chrome layer provides excellent corrosion resistance and reflects up to 80 % of visible light, ideal for bathrooms and high-humidity zones. However, chrome surfaces have 5–10 % lower heat emissivity compared with painted finishes, trading warmth for design appeal.

Satin Finish Radiators

Satin finish radiators balance the subdued tone of matt with the gentle sheen of gloss. The semi-reflective surface provides a soft, refined aesthetic that complements neutral interiors. Satin coatings resist smudging and maintain surface integrity under daily cleaning, combining elegance with practicality.

Metallic Finish Radiators

Metallic finish radiators use aluminium or mica-infused coatings to create a reflective shimmer that highlights shape and depth. The metallic texture enhances light diffusion, giving dimension to designer and contemporary interiors. Metallic finishes also increase surface hardness and resist micro-abrasion.

Brushed Finish Radiators

Brushed finish radiators display a linear, textured pattern achieved through mechanical polishing. The directional grain adds industrial character and masks fingerprints, making this finish ideal for stainless steel and aluminium radiators in modern loft-style settings. Brushed finishes provide durable, low-maintenance surfaces with consistent radiant performance.

Powder-Coated Radiators

Powder-coated radiators use electrostatically applied pigments cured under heat for a durable, uniform surface. The coating provides excellent chip resistance, colour stability, and corrosion protection, supporting custom colour options from classic white to anthracite and bronze. Powder coating enhances emissivity and remains the standard finish for most steel and aluminium radiators.

Textured Finish Radiators

Textured finish radiators incorporate subtle surface patterns that create depth and visual warmth. Grain or stone-effect coatings improve scratch resistance and conceal imperfections, suitable for high-traffic areas or commercial environments. Textured finishes maintain efficient heat transfer while offering tactile design variation.

What Are the Radiator Types by Special Features?

Radiators by special features are classified as thermostatic, dual-fuel, smart, low surface temperature (LST), fan-assisted, mirror, glass, curved, coloured, and energy-efficient radiators. Feature-based classification defines functional innovation, safety mechanism, control precision, and aesthetic enhancement beyond standard heat emission. These advanced designs improve user experience, energy regulation, and system adaptability across diverse environments.

Thermostatic Radiators

Thermostatic radiators feature integrated valves that regulate heat output based on ambient temperature. The thermostatic radiator valve (TRV) maintains a stable microclimate by adjusting water flow automatically. This feature improves energy efficiency by up to 20 %, ensuring consistent warmth without overheating. Thermostatic systems are standard in modern hydronic installations where zonal temperature control is required.

Dual-Fuel Radiators

Dual-fuel radiators operate on both central heating and electric power sources for year-round flexibility. During winter, they connect to the boiler circuit; during summer, the built-in electric element functions independently. Dual-fuel radiators are common in bathrooms and en-suites where towel heating or partial room heating is needed without activating the entire central system.

Smart Radiators

Smart radiators integrate digital thermostats, Wi-Fi connectivity, and programmable heating algorithms. They connect to mobile applications or home automation systems, allowing real-time control and performance tracking. Smart operation reduces energy waste through adaptive scheduling and occupancy-based heating. Many smart radiators comply with Lot 20 EcoDesign standards, ensuring efficient electronic temperature regulation.

Low Surface Temperature (LST) Radiators

Low Surface Temperature radiators maintain external casing temperatures below 43°C to prevent contact burns. They are essential in hospitals, schools, nurseries, and care facilities. Internal convector panels circulate heat through safety enclosures that maximise efficiency while maintaining touch-safe exteriors. LST radiators balance safety compliance with thermal performance in public and sensitive environments.

Fan-Assisted Radiators

Fan-assisted radiators include low-noise fans that boost convective airflow for faster room heating. The integrated fans circulate air across heat exchangers, increasing responsiveness by up to 50 % compared with natural convection. Fan-assisted models are suitable for large open-plan rooms, conservatories, or properties with high ceilings where accelerated heat recovery is required.

Mirror Radiators

Mirror radiators combine reflective glass panels with concealed heating elements or water channels. They function as both mirrors and radiant heat sources, delivering warmth while enhancing spatial aesthetics. Typical applications include hallways, bedrooms, and dressing areas where dual-purpose design optimises space. Mirror radiators provide elegant visual integration with moderate heat output efficiency.

Glass Radiators

Glass radiators utilise toughened, heat-resistant panels to emit uniform radiant warmth through smooth surfaces. They operate via infrared or hydronic heating systems, offering minimalist design appeal. Available in transparent, frosted, or tinted finishes, glass radiators are preferred in luxury interiors for their clean geometry and controlled radiant diffusion.

Curved Radiators

Curved radiators are designed to match concave or convex wall contours, ensuring uniform heat dispersion along curved surfaces. They are frequently used in bay windows, circular rooms, or contemporary architectural layouts. The curvature optimises radiant reach and preserves design continuity without performance loss.

Coloured and Designer-Finish Radiators

Coloured radiators incorporate custom coatings and finishes that match interior palettes. Powder-coated, matte, or metallic tones extend aesthetic versatility across home and commercial décor. Designer finishes such as copper, bronze, or anthracite add visual identity without compromising emissivity, supporting both function and form.

Energy-Efficient Radiators

Energy-efficient radiators use advanced materials, fluid dynamics, and thermostatic regulation to minimise heat loss and power consumption. High-conductivity aluminium cores, intelligent heat zoning, and low water volume reduce system strain. These radiators deliver up to 25 % lower energy usage while maintaining full thermal performance under modern boiler or heat pump operation.

What Are the Radiator Types by Efficiency and Performance?

Radiators by efficiency and performance are classified as high-efficiency panel radiators, low water content radiators, aluminium radiators, fan-assisted radiators, dual-panel convector radiators, infrared radiators, and thermostatically controlled radiators. Efficiency classification measures how effectively a radiator converts energy into usable heat, reflecting design geometry, material conductivity, and operational technology.

High-Efficiency Panel Radiators

High-efficiency panel radiators use optimised surface geometry and convector fins to maximise heat transfer at low water temperatures. Their design increases thermal output by up to 30 % compared with flat panels operating at the same flow rate. These radiators pair efficiently with modern condensing boilers and low-temperature heat pumps, sustaining stable warmth with minimal energy loss.

Low Water Content Radiators

Low water content radiators require smaller volumes of circulating water, reducing energy use and response time. The reduced mass accelerates heating and cooling cycles, improving temperature control precision. This design achieves 15–20 % energy savings by lowering boiler load and enabling faster system modulation, ideal for high-efficiency hydronic systems.

Aluminium Radiators

Aluminium radiators deliver superior energy efficiency through rapid heat conduction and minimal thermal inertia. The material’s conductivity of 237 W/m·K ensures fast room heat-up and reduced boiler runtime. Lightweight structure and low water requirement make aluminium radiators compatible with renewable heating systems, especially air-source and ground-source heat pumps.

Fan-Assisted Radiators

Fan-assisted radiators use integrated low-noise fans to accelerate convection and distribute heat uniformly across large spaces. This design improves heat transfer rate and maintains comfort in rooms with uneven airflow. By increasing circulation, fan-assisted units achieve up to 50 % faster heat recovery, optimising efficiency for open-plan or high-ceilinged environments.

Dual-Panel Convector Radiators

Dual-panel convector radiators combine two heat-emitting panels with internal fins to amplify surface contact with air. The configuration produces strong convection, achieving higher BTU output from compact dimensions. Efficiency gains reach 20–25 % over single-panel models, making them ideal for medium to large rooms requiring high thermal consistency.

Infrared Radiators

Infrared radiators emit long-wave radiant heat directly to objects and occupants rather than warming air. This directional heating method eliminates convection loss, enhancing efficiency in well-insulated or high-ceilinged spaces. Infrared systems convert over 98 % of electrical input into radiant energy, providing immediate, even warmth suitable for both domestic and commercial interiors.

Thermostatically Controlled Radiators

Thermostatically controlled radiators integrate intelligent sensors and valves that adjust water flow or electrical power automatically. The thermostatic control maintains target temperature accuracy within ±0.5°C, preventing overheating and energy waste. These radiators form part of smart heating systems that optimise runtime and improve seasonal energy efficiency ratio (SEER).

High-Output Radiators

High-output radiators are engineered for large rooms or open layouts requiring strong heat delivery from limited wall space. Multi-panel steel or aluminium configurations achieve outputs above 6.0 kW while maintaining compact profiles. Their improved fin density and radiant ratio ensure consistent temperature balance even under high-demand conditions.

Low-Temperature Radiators

Low-temperature radiators operate effectively at supply temperatures between 35–55°C, compatible with modern condensing boilers and heat pumps. Enhanced surface area and convective fins compensate for reduced water temperature, maintaining comfort with up to 25 % lower energy input. They represent the most sustainable choice for next-generation heating systems.

What Are the Radiator Types by Price Range?

Radiators by price range are classified as budget radiators, mid-range radiators, premium radiators, and luxury designer radiators. Price classification depends on material composition, build quality, heat output efficiency, finish type, and technological integration. Each category targets specific performance, design, and budget requirements within residential or commercial installations.

Budget Radiators

Budget radiators offer functional heating performance at minimal cost. Typically made from mild steel with a white enamel finish, they prioritise practicality over aesthetics. Standard single or double-panel designs produce outputs between 1.0–3.0 kW, suitable for general domestic use. Prices typically range from £40 to £150 per unit, depending on size and configuration. Budget radiators are ideal for rental properties, basic renovations, or cost-sensitive projects where reliability and simplicity are priorities.

Mid-Range Radiators

Mid-range radiators balance performance efficiency, design quality, and cost value. Constructed from steel or aluminium, they include convector fins, thermostatic valves, and powder-coated finishes. Heat output ranges between 2.0–4.5 kW, covering standard living spaces with enhanced durability. Price ranges between £150 and £400, depending on dimensions and styling. Mid-range models include compact vertical or horizontal radiators that combine efficiency with moderate visual appeal, serving as the most common household choice in the UK.

Premium Radiators

Premium radiators provide advanced engineering, superior materials, and refined aesthetics. Made from high-grade aluminium, stainless steel, or glass, they integrate features like dual-fuel compatibility, low water content design, and rapid thermal response. Heat outputs range between 3.5–6.0 kW with energy savings up to 20 % compared with standard steel units. The price band typically spans £400 to £900 per radiator, reflecting both craftsmanship and performance precision. Premium radiators suit modern residential developments and design-focused interiors.

Luxury Designer Radiators

Luxury designer radiators combine artistic form with high-efficiency heating technology. Materials include polished stainless steel, tempered glass, natural stone, or copper composites, with sculptural, vertical, or asymmetrical geometries. Many feature digital thermostatic controls, Wi-Fi integration, and custom colour finishes. Average outputs range from 2.5–5.5 kW, and prices start around £900, extending beyond £2,500 for bespoke installations. Luxury radiators serve as both functional heating solutions and architectural statement pieces within premium design spaces.

Specialty and Custom Radiators

Specialty and custom radiators are tailored for unique dimensions, energy systems, or architectural requirements. These models use hybrid materials such as aluminium–steel composites or advanced coatings for corrosion protection. Performance efficiency and design freedom justify prices from £1,000 to £5,000, depending on specification. They are selected for heritage restorations, luxury developments, or sustainable builds requiring exact fit and long lifespan.

What Are the Radiator Types by Panel Classification?

Radiators by panel classification are categorised as single panel (Type 10), single panel single convector (Type 11), double panel (Type 20), double panel double convector (Type 22), and triple panel triple convector (Type 33) radiators. Panel classification defines heat output capacity, convection intensity, and surface area efficiency, directly influencing energy performance and room heat-up speed.

Single Panel Radiators (Type 10)

Single panel radiators consist of one flat steel panel without convector fins. The limited surface area produces gentle radiant heat, ideal for small rooms or low-demand areas. Average heat output ranges from 0.8 to 1.5 kW, depending on width and height. Type 10 radiators offer slim dimensions and rapid warm-up, making them suitable for hallways, cloakrooms, or compact bedrooms where wall space or heat load is minimal.

Single Panel Single Convector Radiators (Type 11)

Type 11 radiators feature one heating panel combined with one convector fin bank to improve air circulation. The fin structure enhances convection by 15–20 % compared with a plain panel radiator. Typical outputs range from 1.2 to 2.0 kW, depending on size. Type 11 radiators balance compactness with efficiency, ideal for medium-sized bedrooms or home offices requiring quick but moderate heating performance.

Double Panel Radiators (Type 20)

Type 20 radiators incorporate two parallel water panels without convector fins. The dual surface area doubles radiant emission while maintaining shallow depth. Heat outputs typically range from 1.8 to 3.0 kW, offering smooth, even temperature distribution. Type 20 radiators are common in living rooms and dining areas where steady, consistent warmth is prioritised over rapid heat bursts.

Double Panel Double Convector Radiators (Type 22)

Type 22 radiators contain two heating panels and two internal convector fin banks, maximising heat output within a compact frame. The fin configuration accelerates convective airflow and boosts efficiency by up to 25 % compared with Type 20. Typical outputs reach 3.0 to 4.5 kW, providing strong performance for large rooms, open-plan areas, or properties with higher ceilings. Type 22 is the most widely installed panel class in the UK due to its balance between size, cost, and thermal capacity.

Triple Panel Triple Convector Radiators (Type 33)

Type 33 radiators feature three heating panels and three sets of convector fins, delivering the highest heat output among standard panel classifications. Outputs can exceed 5.0 kW, depending on width and water temperature. Despite increased depth, the compact wall footprint makes Type 33 suitable for large living spaces, commercial environments, and conservatories where powerful, consistent heat is essential.

Compact Panel Radiators

Compact panel radiators integrate factory-fitted grilles and side panels for a clean aesthetic finish. They are available across all panel classes (Type 10–33) and designed for easy installation, improved safety, and reduced dust accumulation. Compact models maintain identical heat performance while enhancing design continuity within modern interiors.

Low-Temperature Panel Radiators

Low-temperature panel radiators use advanced fin and panel geometry to maintain high efficiency under reduced water temperatures (35–55°C). Their design supports condensing boilers and heat pumps while sustaining thermal comfort equivalent to traditional radiators. They are available in Type 21, Type 22, and Type 33 configurations, optimising performance for sustainable heating systems.

What Are the Radiator Types by Control and Valve Options?

Radiators by control and valve options are classified as manual valve radiators, thermostatic valve radiators, smart-controlled radiators, dual-fuel controlled radiators, integrated valve radiators, and digitally programmable radiators. Control type determines temperature precision, energy efficiency, automation capability, and user interaction pattern within the heating system. Each configuration defines how heat is regulated, balanced, and sustained across zones.

Manual Valve Radiators

Manual valve radiators use hand-turned valves to manually adjust water flow and heat output. The valve head controls circulation volume, increasing or reducing warmth as required. Manual control offers simplicity and low installation cost but lacks automatic regulation. This type suits compact rooms, rental properties, or occasional-use spaces where temperature demand remains consistent.

Thermostatic Valve Radiators

Thermostatic valve radiators automatically regulate water flow based on ambient room temperature. A sensor within the thermostatic radiator valve (TRV) expands or contracts with temperature change, adjusting flow proportionally to maintain steady warmth. TRV integration reduces energy waste by approximately 20 % and maintains room temperature accuracy. These radiators represent the standard efficiency class in domestic central heating, balancing automation with user independence.

Smart-Controlled Radiators

Smart-controlled radiators employ digital thermostats, wireless sensors, and Wi-Fi-enabled valves to deliver intelligent temperature control. These systems connect to home automation platforms, allowing remote scheduling, voice command, and adaptive learning. Smart algorithms analyse occupancy patterns and adjust heat delivery dynamically. Smart radiators achieve temperature precision within ±0.5°C, optimising comfort and reducing power consumption in connected, energy-rated properties.

Dual-Fuel Controlled Radiators

Dual-fuel controlled radiators combine central hydronic heating with independent electric operation for seasonal flexibility. The integrated electric element activates via timer or wall switch, providing heat without engaging the full boiler circuit. Dual-fuel configuration is ideal for bathrooms, en-suites, and utility rooms, enabling year-round use and targeted energy management.

Integrated Valve Radiators

Integrated valve radiators feature concealed control valves built within the radiator frame. The streamlined design enhances aesthetics, reduces visible pipework, and simplifies installation. Integrated systems can operate with manual, thermostatic, or electronic valve options, ensuring both design uniformity and precise temperature regulation. This type is common in designer or premium installations prioritising architectural coherence.

Digitally Programmable Radiators

Digitally programmable radiators use electronic thermostats with LCD or touchscreen interfaces for precise scheduling. Users can predefine daily or weekly heat cycles and adjust exact setpoints for time and temperature. The internal control system maintains accuracy and minimises overheating, achieving measurable energy savings in office, hospitality, and residential applications.

Pressure-Balanced Radiators

Pressure-balanced radiators include automatic flow control valves that stabilise water pressure across interconnected systems. These valves maintain consistent circulation even when multiple radiators modulate simultaneously. Pressure balancing enhances overall hydraulic efficiency and eliminates uneven heating in multi-zone or commercial networks.

Remote and App-Controlled Valve Radiators

Remote and app-controlled valve radiators enable off-site temperature regulation through smartphones or voice assistants. Real-time monitoring provides live feedback on energy usage and environmental conditions. Automated scheduling and data-driven adjustments enhance thermal precision, ensuring adaptive comfort in smart homes and energy-managed buildings.

What Are the Radiator Types by Heat Distribution Method?

Radiators by heat distribution method are classified as convector radiators, radiant radiators, combined convector–radiant radiators, fan-assisted radiators, and infrared radiators. Heat distribution method determines how thermal energy is transferred to the surrounding air and surfaces, influencing response time, comfort level, and overall system efficiency.

Convector Radiators

Convector radiators distribute heat primarily through air circulation generated by convection. Heated water passes through internal channels or fins, warming the air that rises and circulates throughout the room. The continuous airflow ensures even temperature distribution while maintaining low surface temperatures. Convector designs respond quickly to thermostat changes, making them ideal for modern, well-insulated homes requiring rapid ambient heating.

Radiant Radiators

Radiant radiators emit heat directly to walls, floors, and occupants without heavily relying on air movement. The radiant surface transmits thermal energy through electromagnetic waves, producing a consistent, comfortable warmth. Radiant heat minimises dust circulation and humidity loss, improving indoor air quality. This method suits bedrooms, living rooms, and healthcare environments where steady, silent heat is preferred.

Combined Convector–Radiant Radiators

Combined convector–radiant radiators merge radiation and convection mechanisms to balance heat speed and comfort uniformity. Internal fins generate airflow while the panel surface radiates steady warmth. This dual process achieves up to 90 % overall heat transfer efficiency, providing fast heat-up with gentle thermal retention. Combined systems are standard in double-panel and designer radiators installed in residential heating networks.

Fan-Assisted Radiators

Fan-assisted radiators enhance convection using integrated fans to push warm air more effectively into the room. The mechanical airflow accelerates temperature rise by up to 50 % compared with passive convection. Fan-assisted units distribute heat evenly across large or open-plan spaces and maintain stable temperatures even under fluctuating thermal loads. They are suited for conservatories, commercial areas, or high-ceilinged interiors requiring powerful airflow distribution.

Infrared Radiators

Infrared radiators emit long-wave radiant heat that directly warms objects, surfaces, and people instead of air. The targeted emission eliminates convection losses and creates immediate warmth within seconds of activation. Infrared radiators operate at efficiency rates exceeding 98 %, making them ideal for energy-efficient buildings, offices, and workshops where direct, zone-specific heating is preferred.

Natural Convection Radiators

Natural convection radiators rely solely on buoyancy-driven air circulation without fans or pumps. Warm air rises naturally from the radiator’s surface while cooler air descends to replace it, maintaining a steady cycle. This quiet, maintenance-free distribution method supports traditional hydronic systems and ensures uniform temperature gradients in enclosed rooms.

Forced Convection Radiators

Forced convection radiators utilise external airflow, either mechanical or fan-generated, to increase air exchange speed. This technique multiplies the effective heat transfer coefficient and enables efficient operation at lower water temperatures. Forced convection improves heating speed in large, open, or poorly insulated spaces that demand continuous thermal compensation.

What Are the Radiator Types by Historical Style?

Radiators by historical style are classified as Victorian radiators, Edwardian radiators, Art Deco radiators, Mid-Century radiators, and Contemporary classic radiators. Historical style classification reflects architectural era, material composition, and ornamental design influence, connecting radiator aesthetics with the interior design movements of their respective periods.

Victorian Radiators

Victorian radiators are cast-iron column radiators characterised by ornate detailing and high thermal mass. Originating in the late 19th century, they feature embossed floral or geometric motifs inspired by decorative ironwork of the Industrial Revolution. The dense cast-iron structure retains heat for up to three hours after shutdown, providing slow, steady warmth. Victorian radiators suit heritage properties, period restorations, and traditional townhouses, combining durability, acoustic stability, and architectural authenticity.

Edwardian Radiators

Edwardian radiators evolved from Victorian designs with lighter form and refined proportion. Typically built with fewer columns and smoother contours, they emphasise function and elegance over heavy ornamentation. Commonly produced in cast iron or early-steel hybrids, Edwardian models balance radiant charm with improved convective performance. They complement early-20th-century interiors, offering classic aesthetics with modern compatibility in both hydronic and dual-fuel systems.

Art Deco Radiators

Art Deco radiators display geometric precision, linear symmetry, and metallic finishes representative of 1920s and 1930s design. Constructed from steel or brass, these radiators use vertical fluting and stepped edges to mirror contemporary architectural motifs. Their minimalist geometry increases surface exposure, improving convection efficiency. Art Deco radiators suit boutique hotels, period apartments, and retro-inspired spaces where decorative restraint aligns with functional elegance.

Mid-Century Radiators

Mid-Century radiators reflect the post-war design ethos of simplicity, practicality, and industrial material innovation. Flat-panel steel radiators became standard during this era, replacing ornate cast-iron types. Their clean lines, modular panels, and powder-coated finishes symbolised modern domestic engineering. Mid-Century radiators remain widely used in 1950s–1970s style renovations, maintaining both nostalgic form and efficient heat delivery.

Contemporary Classic Radiators

Contemporary classic radiators reinterpret heritage silhouettes with modern technology and materials. Aluminium or steel replicas of column radiators offer the same aesthetic appeal with reduced weight and faster heat response. Finishes include anthracite, bronze, and brushed nickel, allowing seamless integration in transitional interiors that blend period architecture with modern performance standards.

Industrial Radiators

Industrial radiators embody utilitarian design associated with early factory and warehouse heating systems. Large-tube steel or raw-cast-iron construction highlights visible pipework, exposed valves, and matte metallic finishes. The heavy-duty build and high output suit loft apartments, studios, and converted industrial buildings, preserving architectural authenticity while ensuring robust thermal performance.

Retro and Heritage Replica Radiators

Retro and heritage replica radiators reproduce the form of early 20th-century designs using contemporary manufacturing methods. These replicas combine historic styling with modern energy efficiency, corrosion protection, and compatibility with thermostatic valves. They are popular in listed properties and restoration projects where conservation aesthetics must meet current heating regulations.

What Are the Radiator Types by Safety and Compliance?

Radiators by safety and compliance are classified as Low Surface Temperature (LST) radiators, thermostatically controlled radiators, pressure-tested radiators, corrosion-resistant radiators, and child-safe or healthcare-compliant radiators. Safety classification defines thermal exposure limits, operational integrity, environmental protection, and regulatory conformity with standards such as BS EN 442, NHS HTM 08-03, and ISO 9001. Each category ensures controlled heat emission and secure performance in public, residential, and institutional environments.

Low Surface Temperature (LST) Radiators

Low Surface Temperature radiators are designed to maintain an outer casing temperature below 43°C for user safety. They use enclosed convector panels and safety covers that prevent direct contact with hot metal surfaces. LST radiators comply with NHS Health Technical Memorandum HTM 08-03 and are required in schools, hospitals, nurseries, and care facilities. The insulated casing and restricted grille spacing prevent burns, ensuring full heat efficiency through convection while safeguarding vulnerable occupants.

Thermostatically Controlled Radiators

Thermostatically controlled radiators include automatic valves or digital thermostats that prevent overheating. These systems maintain room temperature accuracy within ±0.5°C, reducing surface risk and energy waste. TRVs and electronic sensors comply with Lot 20 EcoDesign standards for temperature regulation and energy performance. They are widely used in residential, healthcare, and hospitality environments requiring stable, safe thermal control.

Pressure-Tested Radiators

Pressure-tested radiators undergo hydraulic and structural verification to prevent leaks, ruptures, and mechanical failures under operating stress. Each unit is tested in compliance with BS EN 442 to ensure it can withstand at least 1.3 times the system’s working pressure. This classification is essential for high-rise, commercial, and industrial systems where water pressure differentials can cause component fatigue or failure.

Corrosion-Resistant Radiators

Corrosion-resistant radiators use treated coatings, stainless steel, or aluminium alloys to prevent oxidation and internal degradation. Anti-corrosion protection ensures safe operation within sealed hydronic systems and extends service life beyond 20 years. This classification complies with ISO 9227 Salt Spray Resistance testing and is vital for coastal, humid, or wet-area installations such as bathrooms and kitchens.

Child-Safe Radiators

Child-safe radiators feature rounded edges, shrouded valves, and temperature-limiting casings designed to prevent injury. LST and safety grille technology protect children from burns or pinching hazards. Many models conform to RoSPA (Royal Society for the Prevention of Accidents) recommendations and Building Regulations Part M for accessibility and safety. They are installed in schools, nurseries, play areas, and residential childcare facilities where thermal protection is mandatory.

Healthcare-Compliant Radiators

Healthcare-compliant radiators meet infection control and hygiene requirements established by NHS and CIBSE healthcare design standards. Smooth, easy-to-clean panels, anti-bacterial coatings, and removable covers enable safe maintenance. These radiators comply with NHS HTM 08-03 and BS EN ISO 9001:2015 for safety and quality assurance. They are required in hospitals, clinics, and rehabilitation environments where patient safety and hygiene are paramount.

Fire-Safe Radiators

Fire-safe radiators are constructed from non-combustible materials and certified to resist ignition or flame spread. Tested under BS EN 13501-1 standards, they prevent structural or insulation fires from propagating through heating elements. Fire-safe classification is critical in commercial kitchens, laboratories, and industrial environments that demand controlled risk under elevated temperature conditions.

Eco-Compliant Radiators

Eco-compliant radiators conform to environmental and safety directives, including the European Union’s Lot 20 and RoHS (Restriction of Hazardous Substances) standards. These regulations restrict lead, mercury, and cadmium usage and mandate efficient temperature control systems. Eco-compliant radiators ensure sustainable performance through safe materials, recyclable construction, and reduced electrical standby consumption.

What Are the Radiator Types by Noise Level?

Radiators by noise level are classified as silent radiators, low-noise radiators, standard hydronic radiators, fan-assisted radiators, and thermostatically actuated radiators. Noise-level classification defines the degree of acoustic emission during heat generation, water circulation, and valve regulation, influencing suitability for bedrooms, offices, hospitals, and other noise-sensitive environments.

Silent Radiators

Silent radiators produce negligible operational sound due to natural convection and static heat emission. They operate without moving parts, fans, or mechanical regulators. Cast iron, aluminium, and panel steel radiators with sealed hydronic systems are considered acoustically silent, registering below 20 dB(A) during operation. Silent radiators are ideal for bedrooms, libraries, studios, and care facilities where acoustic comfort is essential.

Low-Noise Radiators

Low-noise radiators use dampened pipe joints, vibration isolators, and precision-engineered valves to minimise flow turbulence and expansion sounds. Noise levels remain within 20–30 dB(A), equivalent to a quiet residential room. Aluminium or low-water-content radiators excel in this class due to their smooth internal surfaces and low fluid resistance. Low-noise models are suited to nurseries, hospitals, and open-plan offices requiring discreet heat performance.

Standard Hydronic Radiators

Standard hydronic radiators emit moderate operational noise from water flow, valve actuation, and thermal expansion. Average levels range between 30–40 dB(A) depending on installation quality and flow rate. Correct balancing, air venting, and proper pipe insulation reduce sound generation. Standard panel and column radiators within sealed systems remain acceptable for living rooms and general household areas where minimal background sound is tolerable.

Fan-Assisted Radiators

Fan-assisted radiators generate higher noise levels due to integrated fans that enhance convective airflow. Sound emission typically falls within 35–45 dB(A), comparable to quiet conversation. High-quality fan-assisted units use brushless motors and vibration-isolated housings to maintain low noise output. These radiators are suitable for conservatories, workshops, and commercial spaces that require rapid heating rather than complete silence.

Thermostatically Actuated Radiators

Thermostatically actuated radiators occasionally produce clicking or hissing sounds during expansion, contraction, or valve modulation. These sounds originate from temperature changes and pressure shifts within the system. Regular maintenance, correct flow calibration, and modern TRV design reduce acoustic disturbance below 35 dB(A). This type is acceptable in domestic and light-commercial settings where intermittent sound is permissible.

Oil-Filled Electric Radiators

Oil-filled electric radiators operate almost silently due to the absence of water turbulence and pump movement. Internal thermal oil heats evenly, creating stable radiant warmth without mechanical noise. Average acoustic emission remains below 25 dB(A), making oil-filled units preferred for bedrooms, healthcare rooms, and quiet office zones requiring constant background silence.

Infrared Radiators

Infrared radiators operate completely silently because they emit radiant energy through electromagnetic waves rather than convection or water circulation. No fans, valves, or expansion noise occur, maintaining 0 dB(A) acoustic output. Infrared models are optimal for recording studios, meeting rooms, and sound-sensitive industrial applications demanding full noise neutrality.

What Are the Radiator Types by Environmental Impact?

Radiators by environmental impact are classified as energy-efficient radiators, low-carbon radiators, recyclable radiators, water-saving radiators, electric eco radiators, and hybrid renewable radiators. Environmental classification measures embodied carbon, operational energy demand, recyclability, and compatibility with sustainable heating systems, determining how each radiator contributes to climate performance and long-term ecological efficiency.

Energy-Efficient Radiators

Energy-efficient radiators use advanced materials and low-temperature designs to maximise heat output while minimising energy input. Aluminium and steel panel radiators with optimised fin geometry achieve up to 25 % lower energy consumption than conventional models. Compatibility with condensing boilers and heat pumps ensures efficient operation at water temperatures between 35–55 °C, reducing total system emissions.

Low-Carbon Radiators

Low-carbon radiators are engineered to operate with renewable or low-emission energy sources such as heat pumps and solar thermal systems. These radiators require minimal flow temperature to produce adequate room heat, thereby reducing boiler workload and carbon intensity. When paired with green electricity or biogas systems, total lifecycle emissions can fall by over 40 % compared with standard steel radiators.

Recyclable Radiators

Recyclable radiators are manufactured from fully reusable materials such as aluminium, copper, and stainless steel. Aluminium radiators contain up to 90 % post-consumer recycled metal, significantly lowering embodied carbon. Their modular design allows component separation at end of life, supporting closed-loop material recovery under ISO 14021 environmental labelling standards. Recyclable radiators contribute directly to circular-economy heating strategies.

Water-Saving Radiators

Water-saving radiators operate with low internal volume, reducing both energy and water consumption per heating cycle. Low-mass aluminium and composite models use up to 80 % less water than traditional cast-iron units, accelerating system warm-up and decreasing pump energy. Reduced water demand also extends boiler lifespan and improves heating responsiveness in eco-certified residential developments.

Electric Eco Radiators

Electric eco radiators convert electrical energy directly into heat with minimal standby loss and programmable control. When powered by renewable electricity, their carbon footprint approaches zero during operation. Built-in thermostats and motion sensors maintain adaptive heating schedules, lowering unnecessary runtime. Compliance with Lot 20 EcoDesign regulation ensures environmentally responsible electric heating with measurable energy savings.

Hybrid Renewable Radiators

Hybrid renewable radiators integrate multiple energy inputs such as hydronic solar circuits, photovoltaic heating elements, or heat-pump compatibility. This configuration balances renewable generation and low-temperature convection for continuous efficiency. Hybrid systems achieve carbon reductions exceeding 50 % under seasonal efficiency conditions, positioning them at the forefront of sustainable domestic heating.

Eco-Certified Radiators

Eco-certified radiators meet recognised environmental standards including ISO 14001, BS EN 442, and EU Energy Label A+. Certification confirms responsible material sourcing, manufacturing efficiency, and reduced greenhouse-gas output. These radiators are widely adopted in Passivhaus, BREEAM, and LEED-certified buildings, ensuring measurable alignment with sustainability benchmarks.

Low-Emission Manufacturing Radiators

Low-emission manufacturing radiators are produced using reduced-carbon industrial processes such as powder-coating with zero VOC solvents and renewable-energy fabrication. Factories certified under ISO 50001 energy-management systems minimise production waste and electricity use. Low-emission fabrication reduces embodied carbon intensity before the radiator even enters service.

Long-Life Durable Radiators

Long-life durable radiators reduce environmental impact by extending service lifespan beyond two decades. Corrosion-resistant alloys and anti-oxidation coatings prevent early disposal and material waste. Extended durability lowers replacement frequency and total lifecycle carbon emissions, contributing to sustainable asset management within energy-efficient housing portfolios.

What Are the Radiator Types Based on Safety and Regulation Standards?

Radiators based on safety and regulation standards are classified as BS EN 442-certified radiators, NHS HTM 08-03-compliant radiators, Lot 20 EcoDesign-compliant radiators, ISO 9001 quality-certified radiators, RoHS-compliant radiators, and CE-marked radiators. Safety and regulatory classification defines compliance with thermal limits, manufacturing quality, electrical safety, and environmental protection laws governing radiator production and installation across the UK and EU markets.

BS EN 442-Certified Radiators

BS EN 442-certified radiators meet the European benchmark for heat output performance, pressure integrity, and material safety. This standard confirms that radiators operate efficiently under defined conditions of 75/65/20°C (flow/return/room) and can withstand test pressures 30 % higher than nominal operating limits. Certification ensures precise BTU ratings, verified energy efficiency, and long-term mechanical reliability. All radiators sold in the UK legally require BS EN 442 compliance to confirm conformity with British and European manufacturing standards.

NHS HTM 08-03-Compliant Radiators

NHS HTM 08-03-compliant radiators adhere to Health Technical Memorandum standards for heating and ventilation in healthcare buildings. These radiators maintain surface temperatures below 43°C, include anti-ligature covers, and feature easy-clean casings to reduce infection risk. Compliance ensures patient and staff safety through regulated hygiene and controlled thermal exposure. This category applies to hospitals, clinics, care homes, and medical facilities, where safety and cleanliness are paramount.

Lot 20 EcoDesign-Compliant Radiators

Lot 20 EcoDesign-compliant radiators meet the European Union directive for energy-related product efficiency. Regulation (EU) 2015/1188 mandates advanced temperature control, open-window detection, and adaptive start technology to limit wasted energy. Electric radiators that achieve Lot 20 compliance use smart thermostats and electronic sensors to optimise heat distribution, ensuring up to 20 % energy savings. Compliance confirms that the radiator satisfies minimum eco-efficiency thresholds required for sale within the UK and EU.

ISO 9001 Quality-Certified Radiators

ISO 9001-certified radiators are produced under a quality management system that guarantees consistent performance, traceability, and defect prevention. Certification validates manufacturing control, inspection processes, and customer assurance protocols. Radiators bearing ISO 9001 certification demonstrate systematic production oversight and international quality conformity, essential for large-scale or commercial projects requiring documented product reliability.

RoHS-Compliant Radiators

RoHS-compliant radiators conform to the Restriction of Hazardous Substances Directive (2011/65/EU). This regulation prohibits the use of toxic materials such as lead, mercury, cadmium, and hexavalent chromium in electrical and electronic equipment. Compliance ensures that electric and smart radiators are safe for domestic use and environmentally sustainable, supporting long-term recycling and waste reduction initiatives.

CE-Marked Radiators

CE-marked radiators meet EU and UKCA product safety, environmental, and health protection standards. The CE or UKCA mark verifies compliance with all relevant EU Directives and UK regulations, including Pressure Equipment (Safety) Regulations 2016 and Machinery Directive 2006/42/EC. It guarantees safe operational pressure, thermal control reliability, and mechanical stability under certified test conditions.

IP-Rated Electric Radiators

IP-rated electric radiators comply with Ingress Protection (IP) standards that classify resistance to dust and moisture. IP24, IP44, and IP65 models define safety levels suitable for installation in bathrooms, kitchens, or humid environments. Compliance ensures electrical insulation, water resistance, and safe operation in accordance with BS EN 60529 and Part P of UK Building Regulations.

ISO 14001 Environmental-Certified Radiators

ISO 14001-certified radiators are manufactured under an environmental management system that minimises waste, energy use, and emissions. Certification ensures that production processes meet sustainability and environmental responsibility benchmarks. This standard is increasingly adopted by eco-conscious radiator manufacturers to meet green building specifications under BREEAM or LEED frameworks.

Building Regulations Part L-Compliant Radiators

Part L-compliant radiators meet UK Building Regulations for energy conservation in heating systems. Compliance requires correct radiator sizing, thermostatic control, and hydraulic balancing to minimise heat loss and optimise energy efficiency. Part L ensures that radiator installation contributes to the overall thermal efficiency of the building envelope, reducing operational carbon output.

Which Radiators Last the Longest?

The radiators that last the longest are cast iron and stainless steel radiators because of their superior corrosion resistance, high structural density, and mechanical durability. Longevity depends on material composition, internal coating quality, water chemistry, and system maintenance, with premium radiators exceeding 30 years of consistent performance under sealed operation.

Cast Iron Radiators

Cast iron radiators last the longest, often remaining operational for over 50 years in properly maintained hydronic systems. The dense metal structure resists corrosion, mechanical fatigue, and deformation from thermal cycling. Cast iron radiators retain heat long after shutdown, reducing operational stress and improving lifecycle performance. This material type remains standard in heritage buildings, period homes, and traditional refurbishments where long-term reliability and authentic design are essential.

Stainless Steel Radiators

Stainless steel radiators provide long-term durability through natural corrosion resistance and oxidation protection. The chromium oxide layer on the surface prevents rust and scaling, even in humid or coastal environments. With an average lifespan of 25 to 40 years, stainless steel radiators maintain high thermal efficiency and visual integrity without extensive maintenance. They are ideal for bathrooms, kitchens, and marine locations exposed to moisture and condensation.

Aluminium Radiators

Aluminium radiators offer a service lifespan of around 20 to 30 years when installed in sealed, pH-balanced systems. Aluminium naturally resists rust but can corrode if exposed to untreated or mixed-metal circuits. When protected by proper inhibitors and compatible fittings, aluminium radiators deliver reliable performance with faster heat response than heavier metals. They are best suited to low-temperature, energy-efficient systems paired with condensing boilers or heat pumps.

Mild Steel Radiators

Mild steel radiators have a moderate lifespan of 15 to 20 years, depending on coating and water treatment. Steel is more prone to rust, particularly in open systems or poorly balanced water circuits. Powder coating, galvanised plating, and corrosion inhibitors extend lifespan, but steel radiators require regular maintenance and sealed operation to avoid internal oxidation. They are suitable for standard domestic central heating installations where affordability and accessibility are priorities.

Copper Radiators

Copper radiators can last more than 40 years due to excellent corrosion resistance, thermal stability, and antimicrobial properties. They are commonly used in specialist, industrial, or high-performance environments where material longevity outweighs initial cost. Copper’s high conductivity supports rapid heat exchange with minimal material degradation, ensuring extended operational lifespan under balanced system conditions.

How to Choose the Best Type of Radiators?

Choosing the best type of radiators is by evaluating heating system compatibility, required heat output, material efficiency, control precision, safety compliance, and total cost of ownership. Correct selection ensures optimal comfort, energy performance, and financial efficiency over the radiator’s operational lifespan.

Determine the Heating System

Choose a radiator compatible with the building’s primary heat source. Hydronic radiators connect to central boilers or heat pumps, distributing water through steel, aluminium, or cast-iron panels. Electric radiators operate independently using resistive or infrared heating elements for precise zone control. Dual-fuel radiators combine both systems, enabling flexibility between water-fed and electric modes throughout the year.

Calculate the Required Heat Output

Select a radiator that matches the room’s thermal demand. Heat requirement is calculated in British Thermal Units (BTU) or kilowatts (kW) based on room size, ceiling height, insulation quality, and window area. Undersized radiators produce uneven warmth, while oversized models increase running costs. Correct output ensures steady temperature balance and efficient energy use.

Select Material for Efficiency and Durability

Choose radiator material according to response time, corrosion resistance, and service life. Aluminium radiators heat rapidly and operate efficiently with low-temperature systems such as heat pumps. Cast-iron radiators retain warmth longer, supporting stable comfort in heritage or poorly insulated properties. Stainless-steel radiators resist corrosion in humid environments, while mild-steel models balance affordability with steady thermal output. Material determines both energy performance and lifespan.

Match Radiator Design to Room Function

Align radiator design with the function and spatial characteristics of the room. Panel or convector radiators suit general living spaces requiring consistent background heat. Towel radiators deliver dual-purpose drying and air warming for bathrooms. Vertical radiators save wall space in modern apartments. Low-level and plinth radiators counteract cold air from large glazed areas. Design adaptation maximises heat distribution efficiency per location.

Evaluate Control Features and Energy Efficiency

Prioritise radiators with thermostatic or smart temperature control systems. Thermostatic Radiator Valves (TRVs) automatically adjust flow rates to maintain constant room temperature. Smart radiators with Wi-Fi connectivity and adaptive learning reduce energy consumption by approximately 20 % through precise scheduling and occupancy detection. Models compliant with Lot 20 EcoDesign regulations guarantee high-efficiency electronic control.

Include Cost and Installation Factors

Consider both upfront and long-term costs during selection. Average installation costs in the United Kingdom range between £300 and £600 per radiator, including labour. Standard steel models cost £50–£200, while aluminium and designer options reach £250–£800. Cast-iron or stainless-steel radiators can exceed £1,000 depending on size and finish. Evaluating material cost, efficiency rating, and maintenance frequency ensures economic value across the radiator’s service life.

Verify Safety and Compliance Standards

Choose radiators that meet certified UK and EU safety frameworks. Compliance with BS EN 442 verifies accurate heat output and structural pressure resistance. Low Surface Temperature (LST) radiators compliant with NHS HTM 08-03 protect users from burns in schools and healthcare facilities. CE or UKCA markings confirm adherence to construction and electrical safety directives.

Assess Design Integration and Aesthetic Fit

Select radiator style and finish consistent with architectural context and thermal needs. Traditional interiors benefit from cast-iron column radiators, while modern spaces use slim vertical panels or minimalist aluminium units. Finishes such as anthracite, chrome, or brushed nickel provide visual harmony without reducing performance.

Summing Up

Choosing the right radiator depends on matching heating performance, material quality, control precision, safety standards, and budget to the specific needs of a space. Aluminium radiators deliver rapid efficiency for modern low-temperature systems, while cast iron and stainless steel radiators provide long-term durability and stable radiant warmth.

Control systems such as thermostatic and smart valves reduce energy waste and enhance comfort. Compliance with standards like BS EN 442, Lot 20 EcoDesign, and NHS HTM 08-03 ensures safety, accuracy, and sustainability. Balancing cost, installation practicality, and design integration helps achieve lasting comfort and energy economy.

A well-selected radiator combines efficient heat delivery, structural endurance, and regulatory compliance, providing consistent performance and environmental responsibility across every interior.
