Description

  • High quality matt black powder coated finish
  • Heat output: 9647 BTU's (2827 Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems
  • Built to last - 1.5mm thick steel for guaranteed quality
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Radiator valves and legs are sold separately
  • For perfect valve fit, use our matching valves

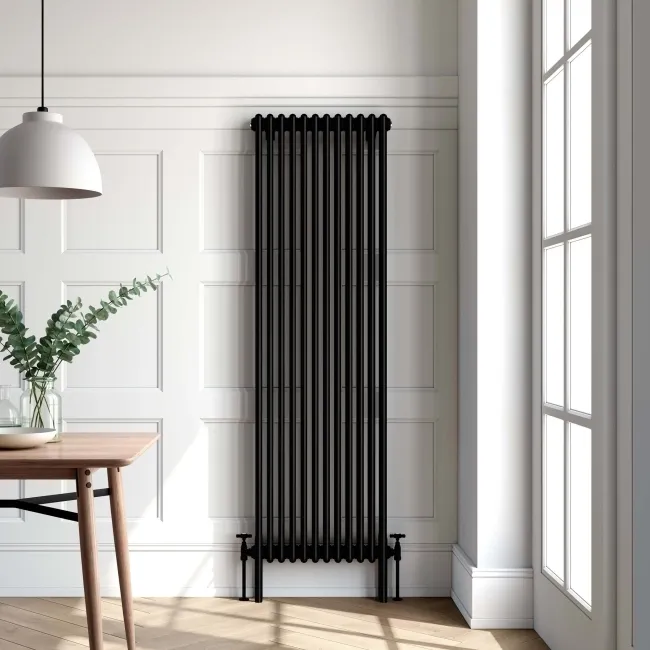

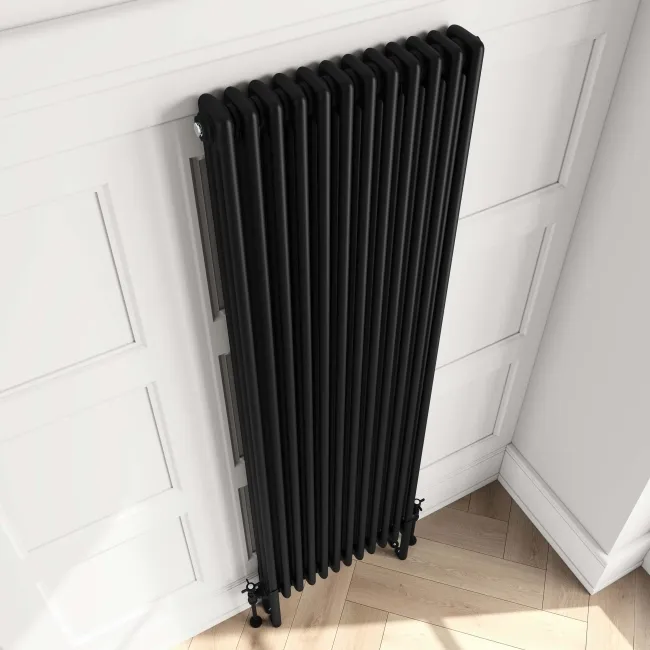

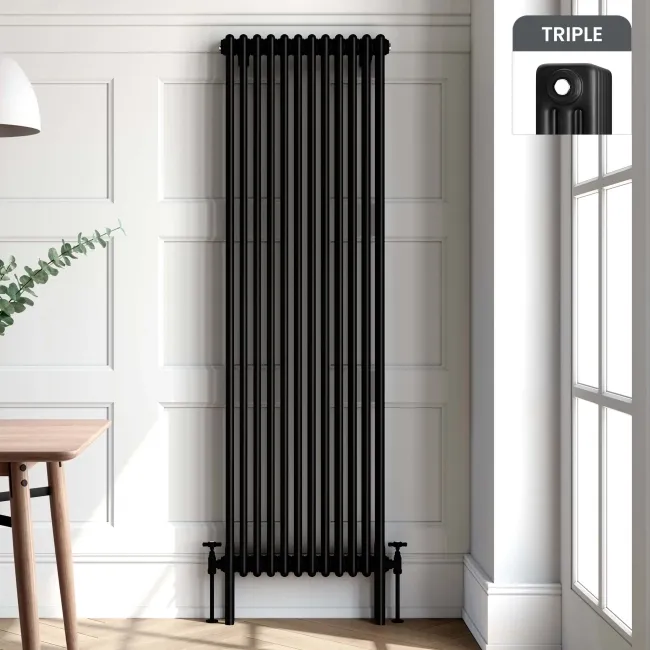

    • Athens Matt Black Triple Column Vertical Traditional Radiator 1800x560mm

    37 reviews 37 reviews

    Height (mm)

    Width (mm)

    In stock icon In Stock
    Save: £78.00
    QTY

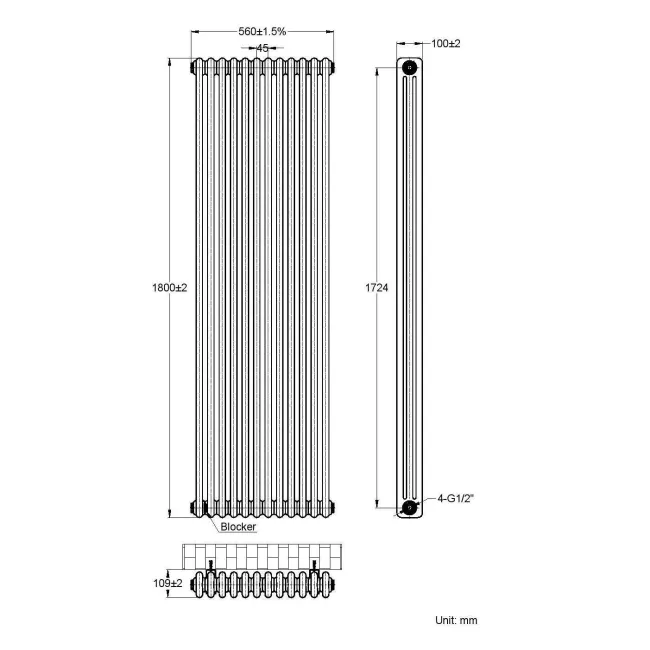

    Dimensions
    Height
    1800mm
    Width
    560mm
    Depth
    100mm
    Weight
    52.40kg
    Technical Features
    Installation type
    Central Heating
    Material
    Low Carbon Steel
    Certification
    Comply With BS EN 442/ ISO9001:2008 /100% Leak Tested
    Fitting
    Wall Hung Or Floor Standing
    Type
    Radiator
    Shape
    Column
    BTU at Delta T30
    3415
    BTU at Delta T50
    6785
    BTU at Delta T65
    9647
    Watts at Delta T30
    1001
    Watts at Delta T50
    1988
    Watts at Delta T65
    2827
    Wall to Centre Tapping
    72
    Projection from Wall
    109mm
    Maximum Water Pressure
    10bar
    Tube Diameter
    25mm
    Inlet Connections
    1/2"
    Orientation
    Vertical
    Valves Included
    No
    Tube shape
    Column
    Style
    Colour
    Black
    Shape
    Column
    Finish
    Matt
    Style
    Traditional
    Heating Type
    Central Heating
    Range
    Athens
    Type
    Radiator
    Guarantee
    Length
    5 Years
    Instructions
    Installation Manual for column radiators

    Description

  • High quality matt black powder coated finish
  • Heat output: 9647 BTU's (2827 Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems
  • Built to last - 1.5mm thick steel for guaranteed quality
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Radiator valves and legs are sold separately
  • For perfect valve fit, use our matching valves

    • Finish The Look

    1. 34008

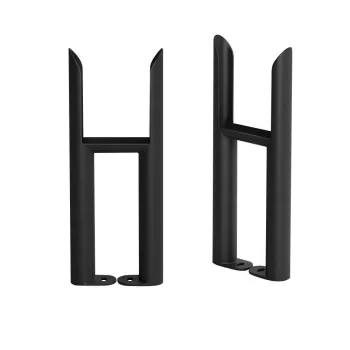

      Matt Black Traditional 3 Column Radiator Feet

      £29.99

      59
    2. Matt Black Pipe Connectors For Heated Towel Rails & Radiators (Pair) 150mm

      Matt Black Pipe Connectors For Heated Towel Rails & Radiators (Pair) 150mm

      £14.99

      132
    Item 1 of 3

    Essential Extras

    1. 34015

      Bleed Keys - Radiator

      £1.99

      53
    2. 34029

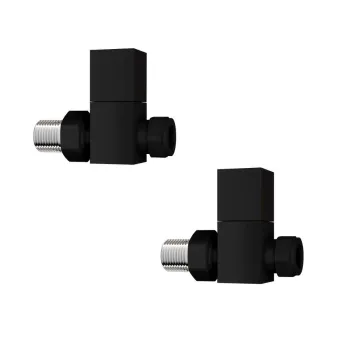

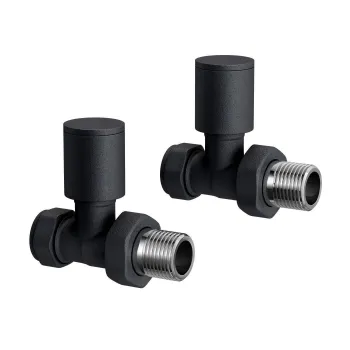

      Matt Black Straight Manual Radiator Valves (Pair) Standard 15mm

      £24.99

      464
    Item 1 of 8

    Shop the Range

    1. Athens White Triple Column Horizontal Traditional Radiator 600x785mm
      SALE

      Athens White Triple Column Horizontal Traditional Radiator 600x785mm

      £ 207.99

      Was £ 259.99 | Save 20%

      98
    2. Athens Anthracite Double Column Horizontal Traditional Radiator 600x1190mm
      SALE

      Athens Anthracite Double Column Horizontal Traditional Radiator 600x1190mm

      £ 263.99

      Was £ 329.99 | Save 20%

      77
    Item 1 of 7
    Read More Reviews:

    Q & A

    Sean20/09/23
    Can you get this radiator in a copper colour?Our Advice

    We have the raw metal in this range Athens Raw Metal Double Column Vertical Traditional Radiator 1800x560mm SKU: 31179.

    Giorgia11/01/23
    how far does the rad sit from the wall once fixed? what is the total distance of the gap between the wall and the far side of the depth of the rad? thanksOur Advice

    Once fixed it will be 109mm

    Mike19/10/22
    Can you tell me the vertical centres between the mounting brackets please?Our Advice

    45mm

    Jose Gonzaelz09/03/22
    Please can you tell me the pipe centres for first fixing?Our Advice

    The pipe centres are approximately 70mm on top of the radiator making them 630mm, but this is not accounting for manufacturing tolerances.

    Tracey13/09/21
    Does the vertical radiator come with a wall fitting kit?Our Advice

    Yes, it does.
