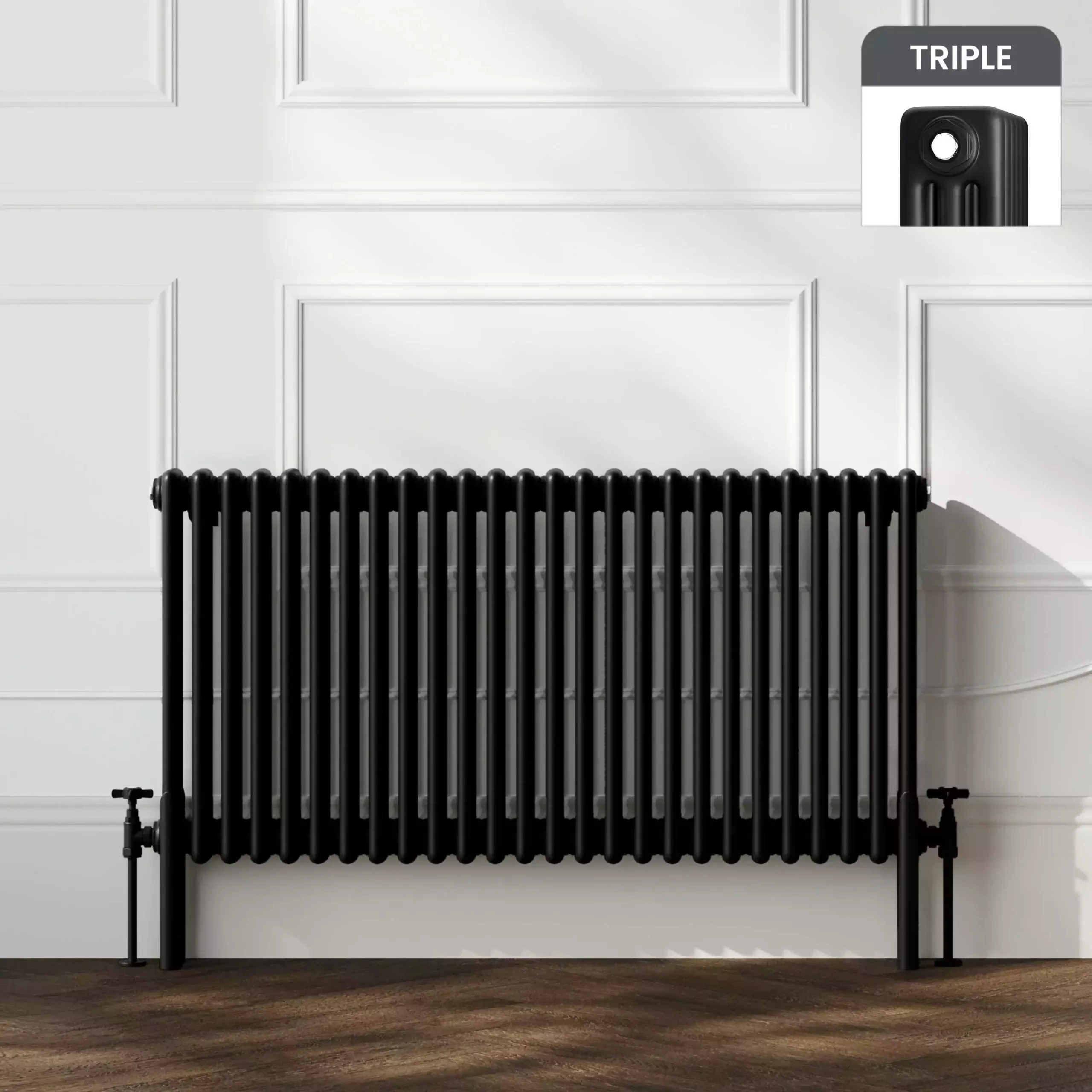

Yes, triple panel radiators (Type 33) need special consideration for your heating system’s power, wall support, size (BTU), and placement, as their large size and heat output might require a more robust boiler and stronger wall mounting, and careful sizing ensures they don’t overheat or underheat rooms.
You must ensure your existing boiler can handle the increased demand and verify walls can support their heavier weight before installation.
Key Considerations:
- Boiler Compatibility: Triple panel radiators have a larger surface area for heat transfer, meaning they need more hot water. Check if your current boiler is powerful enough or if you need a modern, more powerful replacement for optimal performance.
- Wall Support: Being larger and heavier than single or double panels, they require sturdy wall mounting. Ensure your wall can handle the extra weight and that you use appropriate fixings.
- Sizing (BTU Calculation): Accurately calculate the required British Thermal Units (BTU) for the room. A correctly sized Type 33 radiator provides efficient heat, while an oversized one can cause overheating, and an undersized one will underheat.
- Placement: Install them under windows or in areas with cold drafts for best heat distribution, ensuring the space around them remains unobstructed for efficient air circulation.
- Maintenance: Like other radiators, they might need occasional bleeding to remove trapped air and maintain efficiency.
By considering these factors, especially boiler power and wall strength, you can successfully integrate triple panel radiators for efficient heating.
When a standard single or double panel radiator fails to provide sufficient warmth for a large or poorly insulated room, many homeowners look toward the Triple Panel Radiator, technically referred to as a Type 33 radiator.
Comprising three layers of steel panels and three sets of internal convector fins, these units are the heavyweights of the domestic heating world. While they offer exceptional heat output, their installation is not a simple swap-and-fit procedure.
Incorporating a Type 33 radiator into your central heating system requires careful evaluation of your boiler’s capacity, the structural integrity of your walls, and the specific material properties of the unit.
This guide explores the essential considerations necessary to ensure a successful and safe installation.
Structural Integrity and Weight Constraints
The most immediate consideration for a triple panel radiator is its significant physical mass. Because these units contain three layers of steel and a substantially higher volume of water than standard models, they are exceptionally heavy.
It is imperative to assess the construction of your wall before mounting a Type 33 radiator. While a solid brick or block wall can typically support the weight, a standard internal stud wall constructed from plasterboard and timber may require additional structural reinforcement to prevent failure.
Furthermore, standard radiator brackets are often insufficient for the depth and weight of a triple panel unit. You must ensure that you utilise the specific heavy-duty floor or wall fixings provided by the manufacturer to prevent the appliance from pulling away from the masonry over time.
Boiler Compatibility and System Pressure
A triple panel radiator requires a significantly larger volume of hot water to fill its three internal chambers, which puts additional demand on your central heating system. Before investing in a Type 33 radiator, you must verify that your boiler is capable of supporting the increased water volume.
An older or lower-capacity boiler may struggle to maintain the required flow rate, leading to cold spots in the new radiator or a drop in performance for the rest of the house. In some instances, a contemporary, high-output boiler may be required to deliver the performance level necessary to heat these massive units.
Additionally, the increased water volume means that the water will expand more when heated, so you should consult a qualified engineer to check if your system’s expansion vessel is large enough to handle the additional volume.
Material Selection and Thermal Retention
The material of your triple panel radiator influences both its durability and its heat-up speed. While mild steel is common, many high-performance Type 33 models utilise Stainless Steel or advanced alloys.
Stainless steel provides excellent heat retention properties; while it may take slightly longer to reach its peak temperature compared to aluminium, it will continue to radiate warmth into the room long after the boiler has cycled off.
Given the large internal surface area of triple panels, internal corrosion is also a heightened risk. It is vital to maintain the correct levels of chemical inhibitor within your system to prevent the build-up of magnetite or sludge, which could easily become trapped in the complex internal fins of a Type 33 unit and reduce its overall efficiency.
Aesthetic and Spatial Impact
The no-frills, industrial aesthetic of a triple panel radiator is a significant departure from the sleek lines of modern designer radiators.
Because a Type 33 radiator is significantly deeper than a Type 11 single or Type 22 double panel, it will protrude much further from the wall. This can be a major issue in narrow hallways, bathrooms, or behind doors where walking space is limited. These units are functionally designed and may appear bulky in a minimalist interior.
However, their high efficiency means you may be able to install a shorter radiator than originally planned, provided the depth of the unit is acceptable for your room layout.
Technical Comparison: Radiator Types
| Feature | Type 11 (Single Panel) | Type 22 (Double Panel) | Type 33 (Triple Panel) |
| Heat Output | Low to Moderate | High | Maximum |
| Depth from Wall | Minimal | Standard | Substantial |
| Water Content | Low | Moderate | High |
| Best Used For | Small bedrooms/Hallways | Standard living rooms | Large open-plans/Conservatories |
| Wall Requirements | Standard fixings | Standard fixings | Reinforced / Heavy-duty |
Conclusion
The triple panel radiator is an unrivalled solution for spaces that require an extreme heat output, but it is not a one-size-fits-all appliance. By ensuring your boiler can handle the additional water volume and verifying that your walls are structurally sound enough to support the weight, you can benefit from the immense efficiency of a Type 33 system.
While the aesthetic is more functional than decorative, the thermal performance provided is the most effective way to combat large-scale heat loss in modern homes.
