Pedestal sink installation is the process of positioning, fixing, plumbing, sealing, and testing a freestanding basin system so vertical load transfers through the pedestal to the floor while wall fixings control movement and concealed pipework operates leak-free within the pedestal cavity.
Pedestal sink installation requires accurate measurement, correct rim height setting between 800–850 mm, and precise centreline alignment with waste and water supplies. Successful installation depends on early plumbing preparation, including supply isolation, correct waste height, trap selection, and clearance planning to ensure all connections fit within the pedestal without stress. Wall preparation must confirm load-bearing capability, fixing reinforcement where required, and clean drilling to prevent ceramic damage. Basin fixing stabilises the sink laterally while the pedestal carries vertical load. Pedestal alignment demands full floor contact, level verification, and controlled fixing.
Tap installation and waste connection require compatible components, stress-free routing, and staged leak testing under pressure and flow. Sealing at wall and floor junctions prevents water ingress and allows controlled movement after curing. Final leak testing and sealant curing protect finishes and ensure readiness for use. Professional installation becomes necessary when structural limits, complex plumbing, fragile ceramics, or finished surfaces increase installation risk. This guide explains each stage required to achieve a stable, watertight, and durable pedestal sink installation.

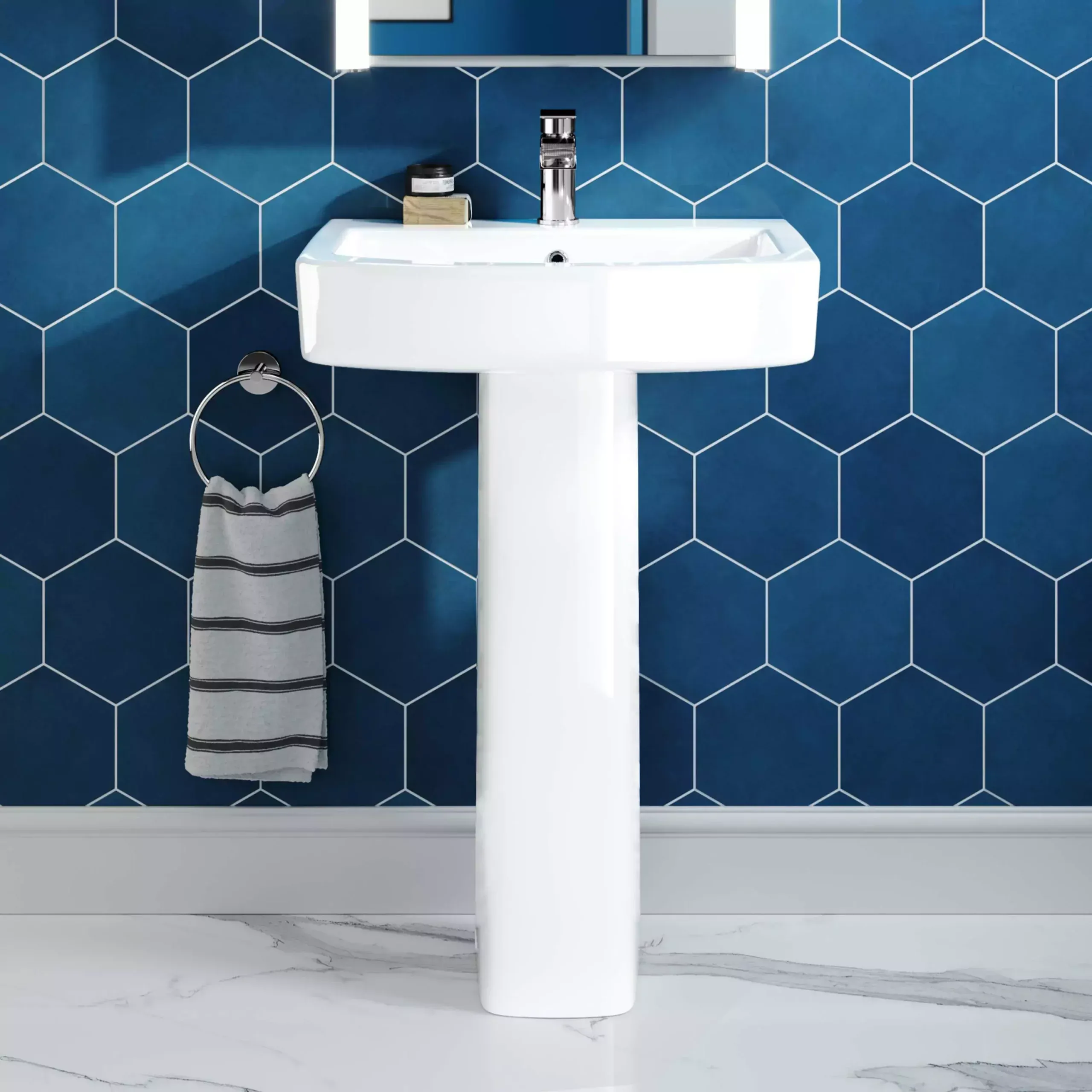

What Is a Pedestal Sink?
A pedestal sink is a freestanding bathroom washbasin supported by a full-height pedestal column that bears vertical load and conceals waste and water supply pipework, creating a compact, traditional sink installation without cabinetry or wall-hung structural dependency.
Structural composition
A pedestal sink consists of two primary components: a basin bowl and a pedestal column. The basin mounts to the wall for lateral stability, while the pedestal transfers vertical load directly to the floor. This dual-support configuration reduces wall load requirements compared with fully wall-hung basins.
Plumbing concealment
The pedestal column encloses the waste trap, vertical waste pipe, and hot and cold supply pipes. Concealment improves visual cleanliness and reduces exposed pipe surfaces where moisture, dust, and residue accumulate. Access to plumbing occurs by removing or shifting the pedestal during maintenance.
Dimensional standards
Pedestal sinks typically install with a basin rim height between 800–850 mm from finished floor level. Basin widths commonly range from 500–650 mm, with depths between 400–500 mm, supporting ergonomic handwashing posture while fitting standard bathroom layouts.
Installation characteristics
Pedestal sink installation relies on floor support for load bearing and wall fixings for anti-rotation stability. Wall fixings prevent basin movement, while the pedestal carries weight. This configuration suits masonry walls and reduces the need for heavy-duty wall reinforcement.
Design applications
Pedestal sinks are commonly used in traditional bathrooms, period renovations, cloakrooms, and secondary bathrooms where simplicity, ease of cleaning, and space efficiency are priorities. Absence of cabinetry increases floor visibility and simplifies maintenance.
Pedestal sink limitations
Pedestal sinks provide no integrated storage and limit under-sink access once installed. Plumbing alignment must be precise to fit within the pedestal cavity. These constraints influence suitability for bathrooms requiring storage or frequent plumbing access.
What Tools and Materials Are Required to Install a Pedestal Sink?
Pedestal sink installation requires precise fixing, plumbing connection, levelling, and sealing tools combined with compatible materials to secure the basin, align the pedestal, connect waste and supplies, and achieve a watertight, load-stable bathroom installation.
Installation tool set
Preparation depends on tools that allow accurate measurement, drilling, alignment, and tightening without damaging ceramic components.
The essential installation tools are given below:
- Measuring tape (mm scale): Sets basin rim height at 800–850 mm and confirms pedestal alignment
- Spirit level (600 mm): Verifies vertical and horizontal level of basin and pedestal
- Drill with masonry bits (6–10 mm): Creates wall fixing holes in brick or blockwork
- Adjustable spanner and open-ended spanners: Tighten tap tails, isolation valves, and waste fittings
- Screwdrivers (flat and Phillips): Secure wall brackets and basin fixings
- Pencil and marker: Mark fixing points and centre lines accurately
Plumbing connection materials
Connection components ensure reliable water delivery and waste discharge while fitting within the pedestal cavity.
The required plumbing materials are given below:
- Basin waste (32 mm): Matches basin outlet size and connects to trap
- Bottle trap or P-trap: Fits within pedestal clearance and maintains water seal
- Flexible tap connectors (300–500 mm): Link taps to supply pipes with tolerance for alignment
- Isolation valves: Allow local shut-off for maintenance access
Fixing and support materials
Fixings provide load restraint and prevent basin rotation during use.
The fixing materials required are given below:
- Wall fixing bolts or brackets: Secure basin to wall and resist lateral movement
- Rawl plugs or wall anchors: Match wall substrate and bolt diameter for pull-out resistance
- Washers and rubber buffers: Distribute load and protect ceramic surfaces
Sealing and finishing materials
Finishing materials prevent water ingress and stabilise contact points.
The sealing materials required are given below:
- Sanitary-grade silicone sealant: Seals basin-to-wall and pedestal-to-floor interfaces
- Sealant applicator gun: Controls bead size and placement
- Lint-free cloths: Clean surfaces before and after sealing
Optional preparation aids
Supplementary items improve accuracy and reduce installation risk.
The optional aids are given below:
- Stud finder: Locates solid fixing points in framed walls
- Masking tape: Defines clean sealant edges and protects finishes
- Bucket and towels: Manage residual water during plumbing connection
What Plumbing Preparations Are Needed Before Installing a Pedestal Sink?
Plumbing preparation for pedestal sink installation requires accurate positioning of hot and cold supply pipes, correct waste outlet height and alignment, isolation capability, and pressure verification to ensure concealed connections fit within the pedestal column and operate leak-free after fixing.
Water supply positioning and isolation
Preparation begins by confirming hot and cold supply pipes terminate within the pedestal footprint and align with basin tap inlets. Centre-to-centre spacing must match tap tails, with vertical exit points typically positioned 500–550 mm above finished floor level. Local isolation valves must be installed on both supplies to allow maintenance without shutting down the property water system.
Waste outlet height and alignment
Alignment requires the waste pipe centreline to sit directly behind the basin outlet and within the internal clearance of the pedestal. Standard pedestal installations use a 32 mm waste with outlet height commonly set between 500–600 mm from finished floor level. Horizontal misalignment prevents pedestal seating and causes trap stress.
Trap selection and clearance planning
Selection depends on pedestal internal dimensions and wall projection. Compact bottle traps or shallow P-traps must fit fully within the pedestal cavity without contact. Clearance planning prevents vibration noise, joint strain, and restricted access after installation.
Pipe routing and concealment readiness
Routing must ensure all supply and waste pipework remains vertically contained behind the basin and pedestal line. Angled or offset pipe runs increase fitting stress and obstruct pedestal placement. Straight vertical drops improve concealment and long-term stability.
Wall and floor penetration sealing
Penetrations through walls and floors must be clean, stable, and sealed after final connection. Unsealed penetrations allow moisture ingress behind tiles or wall finishes, increasing long-term damage risk.
Water pressure and flow verification
Verification confirms supply pressure and flow meet tap operating requirements before basin installation. Inadequate pressure or restricted flow causes poor tap performance that cannot be corrected after pedestal fixing without removal.
Dry-fit plumbing check
Dry-fitting the basin and pedestal over prepared pipework confirms alignment, clearance, and access before final fixing. Early verification prevents ceramic damage and rework once fixings are tightened.
How Should the Wall Be Prepared for a Pedestal Sink Installation?
Wall preparation for pedestal sink installation requires a sound load-bearing surface, accurate fixing point layout, and substrate protection to secure the basin against lateral movement while transferring vertical load safely through the pedestal to the floor.
Load-bearing assessment and substrate verification
Assessment begins by confirming the wall construction supports basin fixings without deflection. Masonry walls provide direct fixing capacity. Framed or stud walls require reinforcement using a plywood pattress or metal frame fixed between studs. Fixing capacity must resist lateral loads generated during use.
Fixing height and centreline layout
Layout requires marking a vertical centreline aligned with waste and supply positions, then setting fixing height to achieve a basin rim level of 800–850 mm from finished floor level. Accurate marking prevents basin rotation and ensures the pedestal seats centrally beneath the bowl.
Drilling accuracy and anchor selection
Drilling must match wall substrate and fixing diameter to achieve pull-out resistance. Masonry requires correctly sized plugs; reinforced stud walls require bolts into the pattress or frame. Hole depth must accept full anchor length without bottoming out.
Surface condition and finish protection
Preparation includes checking the wall face for flatness and integrity. Uneven tiles or plaster create point loads on ceramic. Rubber buffers or washers should be positioned at fixing points to distribute load and protect glaze during tightening.
Moisture protection at fixing penetrations
Protection requires sealing drilled holes and fixings where moisture exposure exists. Sealed penetrations prevent water migration behind tiles or wall finishes, reducing long-term substrate damage in bathroom environments.
Clearance verification with pedestal position
Verification requires a dry-fit of the basin against the prepared wall while the pedestal stands in final position. Clearance must allow the pedestal to seat flush to the floor without forcing the basin upward or outward.
How Is the Pedestal Sink Positioned and Measured Correctly?
Pedestal sink positioning and measurement require accurate centreline alignment, correct rim height setting, level verification, and dry-fit confirmation so the basin sits square to the wall, the pedestal carries vertical load, and concealed plumbing aligns without stress.
Centreline alignment and reference marking
Alignment starts by establishing a vertical centreline on the wall that matches waste and supply positions. Reference marks must extend from wall to floor to keep basin and pedestal perfectly stacked. Accurate centrelines prevent basin twist and pedestal offset.
Rim height setting and ergonomic control
Height setting requires marking the basin fixing points to achieve a rim height of 800–850 mm from finished floor level. This range supports comfortable handwashing posture and consistent installation across standard bathrooms.
Pedestal footprint placement and floor contact
Placement requires positioning the pedestal directly beneath the basin outlet with full floor contact. Floor irregularities must be identified at this stage. Shimming beneath the pedestal base corrects minor level deviations without forcing the basin upward.
Level verification across planes
Verification requires checking level horizontally across the basin rim and vertically down the pedestal face. Both checks must pass before drilling or tightening. Level errors cause drainage issues, seal gaps, and visual misalignment.
Dry-fit confirmation with plumbing clearance
Confirmation requires assembling basin and pedestal without fixings to verify clearance around trap, supply lines, and isolation valves. All components must fit within the pedestal cavity without contact or compression.
Fixing point transfer and drill accuracy
Transfer requires marking fixing points through the basin back while held in final position. Drill points must match anchors precisely to avoid ceramic stress during tightening. Accurate transfer prevents elongated holes and movement over time.
How Is the Pedestal Sink Basin Fixed to the Wall?
Pedestal sink basin fixing to the wall secures the basin against lateral movement using correctly rated wall fixings while allowing the pedestal column to carry vertical load, ensuring structural stability, correct alignment, and long-term safety after installation.
Fixing method and load distribution
Fixing relies on wall bolts or brackets to restrain sideways and forward movement rather than support full weight. Vertical load transfers through the pedestal to the floor. This separation of forces prevents wall fatigue and ceramic stress cracking during use.
Fixing hardware selection
Selection requires corrosion-resistant bolts sized to match manufacturer fixing holes and wall substrate. Masonry walls use expansion bolts or plugs with coach screws. Reinforced stud walls use threaded bolts into a timber pattress or metal frame. Correct sizing prevents pull-out and rotation.
Basin positioning before fixing
Positioning requires holding the basin level against the wall with the pedestal in place beneath. Rubber or nylon buffers should sit between ceramic and wall to distribute pressure and protect glazed surfaces during tightening.
Drilling and anchor installation
Drilling must follow marked fixing points exactly to avoid misalignment. Holes should be perpendicular to the wall and deep enough to accept full anchor length. Anchors must seat fully to achieve rated holding strength.
Bolt insertion and tightening control
Insertion requires passing bolts through basin fixing holes into anchors with washers fitted. Tightening must occur gradually and evenly. Excessive torque fractures ceramic. Controlled tightening secures the basin without compression damage.
Alignment verification after fixing
Verification requires rechecking basin level horizontally and vertically after bolts seat. Pedestal contact with the floor must remain flush without lifting or forcing the basin. Any adjustment must occur before sealing.
How Is the Pedestal Sink Pedestal Aligned and Installed?
Pedestal sink pedestal alignment and installation require precise vertical positioning beneath the basin outlet, full floor contact, and controlled fixing so the pedestal transfers vertical load evenly to the floor while maintaining basin level, seal integrity, and concealed plumbing clearance.
Vertical alignment beneath the basin
Alignment begins by positioning the pedestal directly under the basin outlet and trap location using the established centreline. Vertical faces must sit parallel to the wall plane. Misalignment introduces point loading and forces the basin out of level.
Floor contact and load transfer
Installation requires full, flat contact between the pedestal base and finished floor. Gaps indicate floor irregularities that must be corrected with thin, rigid shims placed discreetly beneath the pedestal base. Load transfer must occur uniformly across the base footprint.
Clearance for concealed plumbing
Clearance planning ensures the pedestal cavity fully encloses the waste, trap, supply pipes, and isolation valves without contact. Internal contact creates vibration noise, joint strain, and long-term loosening. Components must sit free within the pedestal envelope.
Pedestal fixing method
Fixing methods depend on manufacturer specification. Some pedestals remain unfixed and rely on basin restraint and gravity. Other designs use discreet floor screws or wall clips. Fixings must stabilise position without pulling the pedestal out of vertical alignment.
Seal preparation at contact points
Preparation includes cleaning floor and pedestal contact surfaces to remove dust and moisture. Clean interfaces improve sealant adhesion and prevent movement after curing. Masking tape may be applied to define clean seal edges where visible.
Final alignment verification
Verification requires rechecking basin level, pedestal verticality, and floor contact after fixing but before sealing. Any adjustment must occur at this stage. Sealing locks the pedestal position permanently.
How Are Taps Installed on a Pedestal Sink?
Taps are installed on a pedestal sink by securing the tap body to the basin tap holes, sealing contact surfaces, and connecting hot and cold supplies with flexible connectors while maintaining alignment, leak integrity, and clearance within the pedestal cavity.
Tap compatibility and hole configuration
Selection begins by matching tap design to basin tap-hole configuration, including single-hole mixers, two-hole pillar taps, or three-hole bridge sets. Correct compatibility prevents off-centre loading, uneven sealing, and restricted connector routing inside the pedestal.
Basin preparation before tap fitting
Preparation requires cleaning the tap deck surface and underside to remove dust, glaze residue, or packaging film. Clean surfaces allow washers and seals to seat evenly, reducing the risk of micro-leaks around the tap base.
Tap body positioning and sealing
Positioning involves inserting the tap body through the basin hole from above with the sealing washer correctly oriented. A rubber or fibre gasket must sit between tap base and ceramic to prevent water ingress beneath the fitting.
Fixing method beneath the basin
Fixing occurs beneath the basin using a threaded shank, retaining nut, and washer assembly. Tightening must occur evenly and gradually to secure the tap without stressing ceramic. Over-tightening causes hairline cracking around tap holes.
Hot and cold supply connection
Connection uses flexible braided tap connectors sized to reach isolation valves without tension, commonly 300–500 mm in length. Hot and cold supplies must route without sharp bends to prevent connector fatigue and flow restriction.
Isolation valve alignment and access
Alignment ensures isolation valves remain accessible within the pedestal cavity after installation. Valves must sit below tap connectors without contact to allow maintenance shut-off without basin removal.
How Is the Waste and Trap Connected to a Pedestal Sink?
Waste and trap connection to a pedestal sink is completed by assembling a 32 mm basin waste, aligning a compact trap within the pedestal cavity, and securing leak-tight joints that maintain a water seal, correct fall, and stress-free alignment behind the basin.
Waste assembly selection and preparation
Selection requires a 32 mm basin waste compatible with the basin outlet and overflow type. Slotted wastes pair with basins that include an overflow channel; unslotted wastes pair with basins without overflow. Preparation includes fitting sealing washers in correct order and cleaning contact faces to ensure uniform compression.
Basin waste installation and sealing
Installation involves inserting the waste body through the basin outlet from above, seating the upper gasket against the ceramic, and tightening the retaining nut from below with controlled torque. Even compression prevents seepage without stressing the glaze around the outlet.
Trap type choice and pedestal clearance
Choice depends on internal pedestal dimensions and wall projection. Bottle traps suit shallow projections and tight cavities; P-traps suit straight horizontal runs with adequate depth. Clearance must allow the trap to sit fully inside the pedestal without contact to ceramic or pipework.
Alignment with wall waste outlet
Alignment requires the trap outlet to meet the wall waste pipe squarely and concentrically. Offset connections introduce side load and joint fatigue. Correct alignment maintains a consistent fall and preserves the water seal.
Connection method and joint integrity
Connection uses compression fittings tightened evenly by hand and finished with light spanner torque. Washers must seat flat; cross-threading or overtightening causes leaks and deformation. Solvent joints are avoided within pedestals to preserve serviceability.
Venting, fall, and seal performance
Performance relies on maintaining the trap water seal and adequate fall to the wall outlet. Sagging pipework or backfall disrupts drainage and causes odour escape. Straight, supported runs improve flow stability.
Dry-fit verification before enclosure
Verification involves assembling waste and trap with the pedestal temporarily positioned to confirm clearance, access to isolation valves, and absence of contact. Adjustments occur before final fixing to avoid forced alignment.
Leak testing prior to sealing
Testing requires filling the basin, releasing the stopper, and inspecting all joints under flow and static conditions. Corrections must be completed before the pedestal is sealed in place.
How Are Water Supply Connections Made to a Pedestal Sink?
Water supply connections to a pedestal sink are made by aligning hot and cold feeds with basin taps, installing isolation valves, and connecting flexible tap connectors in a stress-free layout that fits within the pedestal cavity and maintains leak-free, serviceable operation.
Supply pipe positioning and alignment
Alignment requires hot and cold supply pipes to terminate vertically beneath the basin tap inlets and within the pedestal footprint. Vertical exits typically sit 500–550 mm above finished floor level. Straight alignment prevents side load on tap tails and connector fatigue.
Isolation valve installation and access
Installation requires fitting isolation valves on both hot and cold supplies before connector attachment. Valve placement must allow hand access after pedestal installation. Accessible isolation enables maintenance without shutting down the wider water system.
Flexible connector selection and routing
Selection requires braided flexible connectors sized 300–500 mm to reach valves without tension. Routing must avoid sharp bends and twisting. Smooth curves preserve internal liner integrity and maintain consistent flow.
Tap tail connection method
Connection involves threading flexible connectors onto tap tails by hand, then tightening lightly with a spanner. Washers must seat flat. Excess torque damages seals and causes concealed seepage within the pedestal.
Valve connection and tightening control
Connection to isolation valves follows the same controlled tightening sequence. Even compression across washers ensures a watertight seal. Misaligned threads or forced tightening introduce micro-leaks.
Pressure introduction and staged testing
Testing requires opening isolation valves gradually to pressurise connections. Visual inspection must confirm dry joints under static pressure before operating taps. Staged testing reduces shock loading on new seals.
Clearance verification within pedestal cavity
Verification requires confirming connectors and valves sit fully within the pedestal cavity without contact to ceramic or waste pipework. Contact points transmit vibration and accelerate joint loosening over time.
How Should the Pedestal Sink Be Sealed Against the Wall and Floor?
Pedestal sink sealing against the wall and floor is completed by applying sanitary-grade silicone at contact points to prevent water ingress, stabilise minor movement, and protect surrounding finishes while allowing controlled flexibility during thermal and structural expansion.
Surface preparation before sealing
Preparation requires cleaning all wall and floor contact surfaces to remove dust, moisture, grout residue, and grease. Dry, clean surfaces ensure proper silicone adhesion and prevent premature seal failure. Any movement or levelling adjustments must be completed before sealant application.
Sealant type selection and suitability
Selection requires a sanitary-grade, mould-resistant silicone sealant formulated for bathroom environments. Flexible silicone accommodates slight movement between ceramic, wall, and floor surfaces without cracking or separation. Acrylic or rigid sealants are unsuitable for pedestal sink installation.
Sealing the basin-to-wall joint
Application involves running a continuous, thin bead of silicone along the rear edge of the basin where ceramic meets the wall. Coverage must bridge the joint fully without gaps. Tooling the bead smooths the surface and improves water runoff away from the joint.
Sealing the pedestal-to-floor joint
Sealing at the pedestal base involves applying silicone around the perimeter where the pedestal contacts the floor. This barrier prevents water from entering beneath the pedestal and stabilises the base against minor lateral movement.
Seal tooling and finish control
Tooling requires smoothing the sealant bead with a profiling tool or damp finger to press silicone into the joint and remove air pockets. Clean edges improve appearance and reduce areas where dirt and moisture accumulate.
Masking and edge definition
Masking tape applied before sealing defines clean lines and protects adjacent finishes. Tape must be removed immediately after tooling to avoid tearing cured silicone and leaving ragged edges.
Curing time and use restriction
Curing requires leaving sealant undisturbed for 24 hours before water exposure. Premature contact weakens adhesion and causes surface disruption. Full cure ensures elasticity and long-term moisture resistance.
How Is a Pedestal Sink Leak Tested After Installation?
Pedestal sink leak testing is completed by pressurising water supplies, filling and draining the basin, and inspecting all tap, waste, trap, and isolation valve joints under static and flowing conditions to confirm watertight performance before regular bathroom use.
Initial visual inspection before pressurisation
Inspection begins by checking all visible joints, connectors, and compression fittings for correct seating and alignment. Washers must sit flat, threaded connections must be square, and no component should be under visible tension inside the pedestal cavity.
Controlled pressurisation of water supplies
Pressurisation requires opening hot and cold isolation valves gradually to introduce water pressure without shock loading seals. Slow pressurisation allows early detection of seepage at tap tails, flexible connectors, and valve joints before full operating pressure is reached.
Static pressure leak check
Static testing requires leaving taps closed while the system remains pressurised for several minutes. Dry tissue or cloth placed beneath joints reveals moisture immediately. Any dampness indicates sealing failure that must be corrected before further testing.
Operational tap testing under flow
Flow testing requires opening taps fully and running water for at least 60–90 seconds. Inspection must focus on tap bases, connector joints, and isolation valves while water flows. Vibration or movement during flow indicates misalignment or insufficient tightening.
Basin fill and waste release testing
Drain testing requires filling the basin close to overflow level, then releasing the waste stopper. Observation must confirm smooth drainage, stable trap water seal, and absence of leaks at the waste flange, trap joints, and wall outlet during high flow.
Trap seal and odour integrity check
Seal integrity requires confirming standing water remains in the trap after drainage. Loss of seal indicates incorrect trap alignment or backfall. Stable water seal prevents odour escape and confirms correct waste configuration.
Pedestal cavity inspection
Inspection requires checking inside the pedestal cavity using a torch to confirm no concealed drips or contact between pipework and ceramic. All components must remain dry and free of vibration after testing.
Post-test drying and recheck
Rechecking requires wiping all joints dry and repeating a brief flow test after several minutes. Reappearance of moisture indicates slow seepage that initial testing may not reveal.
How Long Should Sealant Cure After Installing a Pedestal Sink?
Sealant applied during pedestal sink installation should cure for a minimum of 24 hours before water exposure and 48 hours before regular use to allow full adhesion, elasticity development, and moisture resistance at wall and floor junctions.
Initial skin formation and early setting phase
Curing begins when silicone forms a surface skin within 20–40 minutes after application. This stage allows light tooling only. Contact, movement, or moisture during this phase disrupts bond formation and weakens edge adhesion.
Full adhesion development period
Bond strength develops progressively as silicone cures through moisture interaction in the air. A full 24-hour period is required to achieve stable adhesion between ceramic, wall finishes, and floor surfaces. Premature loading causes seal separation and micro-gaps.
Water exposure restriction timing
Water exposure must be avoided for at least 24 hours. Splashing, cleaning, or condensation during early curing compromises elasticity and creates channels for moisture ingress behind the basin or pedestal.
Load and movement restriction window
Regular use, including leaning pressure on the basin or vibration from tap operation, should be avoided for 48 hours. Controlled curing prevents seal distortion at stress points created by pedestal load transfer.
Environmental factors affecting cure time
Temperature below 10 °C and humidity above 80% extend curing duration. Poor ventilation slows moisture-driven curing and delays full elasticity. Adequate airflow supports predictable sealant performance.
Visual inspection before use
Inspection requires confirming a uniform, matte finish with no tackiness when lightly touched. Glossy or soft surfaces indicate incomplete cure and require additional time before use.
What Common Mistakes Occur When Installing a Pedestal Sink?
Common pedestal sink installation mistakes occur when load paths, alignment, plumbing clearances, sealing discipline, and testing steps are mishandled, leading to movement, concealed leaks, cracked ceramics, poor drainage, and premature seal failure.
Inadequate wall support and fixing preparation
Failure arises when wall construction is not assessed or reinforced. Masonry requires correct anchors; stud walls require a timber pattress or metal frame. Insufficient support allows lateral movement that fractures ceramic and loosens fixings over time.
Incorrect height and centreline measurement
Errors occur when rim height falls outside 800–850 mm or centrelines do not align with waste and supplies. Mis-measurement causes pedestal lift, basin twist, and stressed joints that reopen after sealing.
Forcing pedestal alignment to suit plumbing
Problems appear when pipework alignment is incorrect and the pedestal is forced into position. Forced alignment transfers stress to the basin and trap, leading to vibration noise, joint fatigue, and cracking.
Over-tightening basin and tap fixings
Damage occurs when bolts or tap retaining nuts are tightened aggressively. Excess torque creates hairline cracks around fixing points and tap holes that propagate under use and thermal change.
Poor waste and trap selection for pedestal clearance
Failure results when deep traps or offset fittings contact the pedestal interior. Contact transmits vibration and loosens compression joints, causing intermittent leaks that remain concealed.
Missing or inaccessible isolation valves
Maintenance issues arise when isolation valves are omitted or positioned where access becomes impossible after installation. Lack of local shut-off forces basin removal for minor repairs.
Inadequate sealing at wall and floor junctions
Ingress occurs when silicone is skipped, applied too thinly, or disturbed before cure. Unsealed junctions allow water behind tiles and beneath pedestals, causing staining and substrate degradation.
Premature use before sealant cure
Seal failure occurs when water exposure or loading happens before 24–48 hours of curing. Early use pulls sealant from joints and creates micro-gaps that trap moisture.
Skipping staged leak testing
Hidden leaks persist when pressure, flow, and drain tests are not completed before enclosure. Undetected seepage damages floors and walls and requires full disassembly to correct.
Ignoring level verification after fixing
Drainage and seal gaps develop when final level checks are omitted. Small deviations cause slow drainage, standing water, and uneven sealant beads that fail early.
Using incompatible materials and components
Performance suffers when tap-hole configuration, waste type, or sealer choice does not match the basin design. Mismatch introduces leaks, poor ergonomics, and accelerated wear.
When Should a Professional Install a Pedestal Sink?
A professional should install a pedestal sink when structural support, plumbing alignment, surface finishes, or installation complexity exceed safe DIY tolerance, creating risk of ceramic damage, concealed leaks, or long-term instability without specialist assessment and controlled fixing.
Structural wall limitations and reinforcement needs
Professional installation is required when wall construction involves stud partitions, dot-and-dab plasterboard, or uncertain load capacity. Reinforcement design, pattress placement, and fixing specification determine basin stability and prevent lateral movement that causes cracking.
Complex or misaligned plumbing layouts
Professional involvement becomes necessary when hot and cold supplies or waste outlets are offset, incorrectly sized, or positioned outside the pedestal cavity. Pipe repositioning behind finished walls requires controlled alteration to avoid leaks and cosmetic damage.
Floor level irregularities and load transfer issues
Professional installation is appropriate when floors are uneven, flexible, or finished with brittle surfaces such as stone or large-format tiles. Correct shimming, load distribution, and sealing prevent pedestal rocking and floor fracture.
High-value ceramic and fragile basin designs
Professional handling is advised when pedestal sinks use thin-walled ceramics, fireclay, or decorative finishes. Controlled tightening torque and fixing alignment reduce fracture risk during installation.
Integration with tiled or finished surfaces
Professional installation is recommended when drilling through porcelain tiles, stone, or waterproofed surfaces. Incorrect drilling damages tiles, compromises waterproof layers, and creates hidden ingress paths.
Absence of isolation valves or pressure control
Professional input is required when isolation valves are missing or supply pressure is unverified. Valve installation and pressure assessment prevent future maintenance disruption and fitting stress.
Bathrooms with restricted access or tight tolerances
Professional installation becomes necessary in small bathrooms where millimetre-level alignment affects door clearance, circulation space, and visual symmetry. Precision layout prevents pedestal interference and ergonomic failure.
Replacements involving existing damage or movement
Professional installation is required when replacing a pedestal sink after leaks, tile movement, or substrate softening. Underlying issues must be corrected before refitting to avoid repeated failure.
Compliance, warranty, and insurance considerations
Professional installation is appropriate when warranty terms, landlord obligations, or insurance policies require certified workmanship. Documentation protects against liability from water damage or fixture failure.
Summing Up
Correct pedestal sink installation depends on disciplined sequencing, accurate measurement, and controlled fixing rather than speed or force.
Reliable outcomes come from verified wall support, precise centreline alignment, correct rim height, and plumbing prepared to fit fully within the pedestal cavity without stress. Stable wall fixings prevent lateral movement while the pedestal transfers vertical load evenly to the floor. Proper tap, waste, and supply connections rely on compatible components, accessible isolation, and staged leak testing under pressure and flow.
Sanitary-grade sealing at wall and floor junctions protects surrounding finishes when allowed to cure fully. Common failures—movement, concealed leaks, cracked ceramics, and seal breakdown—originate from skipped checks, misalignment, overtightening, or premature use. Professional installation becomes the correct choice where structure, plumbing complexity, fragile finishes, or access constraints raise risk. When each stage is executed methodically, a pedestal sink delivers stable support, clean concealment, and durable performance over long-term bathroom use.
