Measuring a bath panel accurately ensures a secure fit, prevents water leakage, and maintains the bathroom’s appearance. The process involves measuring the bathtub’s length, height, floor clearance, and angles for corner, L-shaped, P-shaped, or offset baths. Using the correct tools, recording dimensions precisely, and accounting for design features or plumbing access are essential. Standard, adjustable, or custom panels can be chosen depending on the bathtub’s shape and size. Avoiding common mistakes such as inaccurate measurements, ignoring floor clearance, or neglecting angles ensures proper alignment.
What Is a Bath Panel and Why Does Size Matter?
A bath panel is a protective and decorative covering that hides the side of a bathtub. Bath panels prevent water damage to the bathtub’s structure and enhance the bathroom’s appearance. Size matters because a panel that is too small or too large can leave gaps, allow water to seep through, and disrupt the visual balance. Standard bath panels usually range from 1700 mm to 1800 mm in length and 500 mm to 600 mm in height, but exact measurements depend on the bathtub type, installation style, and floor clearance. Choosing the right size ensures a secure fit, prevents water damage, and keeps the bathroom looking neat and complete.
Check our complete collection of bath here.
What Tools Do You Need to Measure a Bath Panel?
Measuring a bath panel requires specific tools to ensure an accurate and secure fit. Using the right tools prevents gaps, misalignment, and potential water damage while maintaining the panel’s visual appeal.
Tape Measure
A tape measure determines the exact length and height of the bathtub. Accurate measurements help select a bath panel that fits flush against the tub and floor, preventing gaps that could lead to water seepage.
Pencil and Notepad
A pencil and notepad record all measurements clearly and precisely. Documenting dimensions immediately reduces the risk of errors and ensures that every length and height is captured for a perfect fit.
Spirit Level
A spirit level verifies that the bathtub and measurements are perfectly aligned. Level measurements prevent panels from sitting unevenly, which can compromise both protection and appearance.
Set Square or Angle Finder
A set square or angle finder captures dimensions for angled or irregular bathtubs. These tools ensure that non-standard bathtubs receive a bath panel with precise edges, maintaining structural integrity and a neat visual finish.
What Are the Standard Bath Panel Sizes?
Standard bath panel sizes provide full coverage and protection for most bathtubs. Choosing the right size prevents gaps, water damage, and misalignment while maintaining the bathroom’s visual balance.
Length
The typical length of a bath panel ranges from 1700 mm to 1800 mm. Measuring the bathtub accurately ensures the panel aligns perfectly with both ends, preventing water seepage and creating a flush, neat appearance.
Height
Bath panels usually range from 500 mm to 600 mm in height. Correct height ensures complete side coverage, protecting the bath’s framework and supporting a seamless, finished look.
Special or Custom Sizes
Some bathtubs require custom-sized panels due to unique shapes or installation styles. Corner baths, freestanding tubs, or irregular designs often need measurements beyond standard dimensions. Accurately capturing these dimensions guarantees a precise fit, protects against water damage, and preserves the bathroom’s aesthetic appeal.
How Do You Measure a Bath Panel Step by Step?
Measuring a bath panel step by step ensures accurate dimensions, a secure fit, and prevents gaps or water leakage. Following a structured process maintains the bathroom’s aesthetic and protects the bathtub framework.
Step 1: Gather Your Tools
Collect a tape measure, pencil, spirit level, and notepad. These tools provide precise measurements, allow clear recording, and ensure panels sit level during installation.
Step 2: Measure the Length
Measure the bathtub from one end to the other in millimeters. Recording the exact length ensures the panel aligns flush with the bathtub, preventing gaps or overhangs.
Step 3: Measure the Height
Measure from the floor to the top edge of the bathtub. Correct height measurement ensures the panel covers the bath side completely while maintaining clearance for flooring or skirting boards.
Step 4: Check Floor Clearance
Measure the distance between the floor and the bathtub base. Accounting for clearance ensures the panel sits evenly, allows cleaning underneath, and prevents water from reaching the floor.
Step 5: Measure Angles for Non-Standard Baths
Use an angle finder or template for corner, L-shaped, P-shaped, or offset bathtubs. Accurate angle measurements guarantee panels fit precisely at corners and curves.
Step 6: Record and Verify Measurements
Write down all measurements immediately and double-check accuracy. Clear documentation prevents errors and ensures panels fit securely, protect the bath structure, and maintain a neat, finished appearance.
How Do You Measure for a Front Bath Panel?
Measuring for a front bath panel requires precise length, height, and clearance measurements to ensure a secure fit. Accurate measurements prevent gaps, water seepage, and uneven alignment, while maintaining the bathroom’s overall appearance.
Measure the Length
Measure the full length of the bathtub from end to end. Recording the exact length in millimeters ensures the panel aligns flush with the bathtub, avoiding gaps that could cause water leakage or disrupt the visual balance.
Measure the Height
Measure from the floor to the top edge of the bathtub. Correct height ensures the panel covers the bath’s side completely while allowing proper clearance for skirting boards or flooring.
Check Floor Clearance
Measure the distance between the floor and the base of the bathtub. Considering floor clearance ensures the panel sits evenly, avoids obstruction during cleaning, and prevents water reaching the floor.
Record and Mark Measurements
Use a pencil and notepad to record all measurements clearly. Documenting dimensions immediately reduces errors and guarantees a front bath panel that fits precisely, protects the bathtub framework, and maintains a neat, finished appearance.
How Do You Measure for an End Bath Panel?
Measuring for an end bath panel requires accurate width and height measurements to ensure a precise fit. Correct measurements prevent gaps, water leakage, and misalignment, while keeping the bathroom visually balanced.
Measure the Width
Measure the width of the bathtub from the side wall to the end of the tub. Recording the exact width in millimeters ensures the panel fits flush against the bathtub and wall, avoiding gaps that could allow water to seep through.
Measure the Height
Measure from the floor to the top edge of the bathtub at the end. Accurate height ensures the panel covers the side completely while maintaining clearance for skirting boards or flooring.
Check Floor Clearance
Measure the distance between the floor and the bathtub base. Considering floor clearance ensures the panel sits evenly, avoids obstruction during cleaning, and prevents water damage to the floor.
Record and Mark Measurements
Use a pencil and notepad to note all measurements clearly. Immediate recording reduces errors and ensures the end bath panel fits securely, protects the bathtub framework, and maintains a clean, seamless finish.

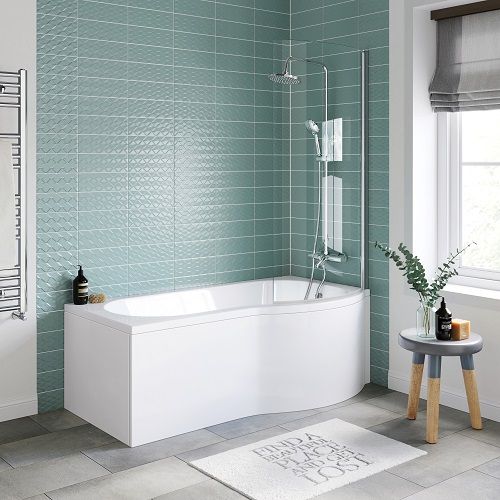

How Do You Measure for L-Shaped and P-Shaped Bath Panels?
Measuring for L-shaped and P-shaped bath panels requires capturing multiple lengths, heights, and angles to ensure a precise and secure fit. Accurate measurements prevent gaps, water seepage, and misalignment while maintaining the bathroom’s visual balance and structural integrity.
Identify Panel Sections
Determine the number of panels required for the bath shape. L-shaped and P-shaped baths often need two or more interconnected panels to cover straight sides and corner sections fully, ensuring complete protection.
Measure Lengths and Widths
Measure each side of the bathtub individually, recording lengths and widths in millimeters. Capturing these dimensions ensures each panel aligns flush with bath edges and walls, preventing gaps and water damage.
Measure Heights
Measure from the floor to the top edge of the bathtub at multiple points. Recording heights for each section ensures all panels sit evenly and provide full coverage, including around curves or corners.
Measure Angles and Curves
Use an angle finder or template to capture corner angles and curved sections. Accurate angle measurement ensures panels meet precisely, avoiding uneven joins, gaps, or misalignment.
Record and Mark Measurements
Document all measurements clearly using a pencil and notepad. Immediate recording reduces errors and ensures that L-shaped or P-shaped panels fit securely, protect the bath structure, and create a neat, polished finish.
How Do You Measure for Corner and Offset Bath Panels?
Measuring for corner and offset bath panels requires precise length, height, and angle measurements to ensure a secure and accurate fit. Correct measurements prevent gaps, water seepage, and misalignment while maintaining the bathroom’s structural integrity and visual balance.
Identify Panel Sections
Determine the number of panels required for the corner or offset bathtub. Corner and offset baths often need two or more panels to cover both straight and angled sides fully, ensuring complete protection.
Measure Lengths and Widths
Measure each side of the bathtub individually in millimeters. Recording lengths and widths ensures that each panel aligns flush with bath edges and walls, preventing gaps and water damage.
Measure Heights
Measure from the floor to the top edge of the bathtub at multiple points. Accurate height measurement ensures panels cover the bath sides completely and maintain consistent alignment, even around corners.
Measure Angles and Curves
Use an angle finder or template to capture the angles of corners and offset sections. Precise angle measurement ensures panels meet correctly, avoiding uneven joins, gaps, or misalignment.
Record and Mark Measurements
Use a pencil and notepad to document all dimensions clearly. Immediate recording reduces errors and guarantees that corner and offset bath panels fit securely, protect the bathtub framework, and maintain a neat, seamless finish.
How Do You Measure for a Replacement Bath Panel?
Measuring for a replacement bath panel requires capturing the exact length, height, and style of the existing panel. Accurate measurement ensures the new panel fits flush, prevents gaps, and maintains the bathtub’s protection and appearance.
Remove and Inspect the Existing Panel
Carefully detach the current bath panel to inspect its dimensions and mounting style. Observing the panel’s attachment points and cut-outs ensures the replacement matches the existing setup accurately.
Measure Length and Width
Measure the full length and width of the existing panel in millimeters. Recording these dimensions ensures the replacement panel aligns perfectly with the bathtub edges, preventing water seepage and misalignment.
Measure Height and Floor Clearance
Measure from the floor to the top edge of the existing panel. Correct height measurement ensures full coverage, proper alignment, and adequate clearance for skirting boards or flooring.
Note Design Features
Record any design features, cut-outs, or panels for access to plumbing. Capturing these details ensures the replacement maintains functionality and aesthetic consistency with the bathroom.
Record and Verify Measurements
Use a pencil and notepad to document all measurements clearly. Double-checking the dimensions guarantees that the replacement panel fits securely, protects the bath structure, and preserves a neat, finished appearance.
How Do You Adjust Measurements for an Adjustable Bath Panel?
Adjusting measurements for an adjustable bath panel requires determining the minimum and maximum dimensions to ensure a secure and flexible fit. Correct adjustment prevents gaps, misalignment, and water seepage while maintaining the bathroom’s visual balance.
Identify Adjustable Range
Check the manufacturer’s specifications for the panel’s adjustable length and height. Knowing the minimum and maximum dimensions ensures the panel can fit the bathtub precisely without overextending or leaving gaps.
Measure the Bathtub
Measure the bathtub’s length, width, and height in millimeters. Capturing exact dimensions ensures the adjustable panel can be set accurately to cover the bath completely.
Adjust Panel to Fit
Set the panel within the adjustable range to match the bathtub dimensions. Fine-tuning the panel ensures a flush fit against the tub edges and floor, preventing water from escaping.
Check Alignment and Clearance
Verify that the panel sits level and allows proper floor clearance. Ensuring alignment prevents uneven gaps, supports easy cleaning, and maintains the panel’s structural stability.
Record Final Settings
Document the adjusted measurements for future reference. Recording the final settings guarantees consistent installation and simplifies future maintenance or replacement.
What Are the Most Common Bath Panel Measuring Mistakes?
The most common bath panel measuring mistakes cause gaps, water leakage, and misalignment. Avoiding these errors ensures panels fit securely, protect the bathtub framework, and maintain a neat, finished bathroom appearance.
Ignoring Floor Clearance
Failing to measure the distance between the floor and bathtub base leads to uneven panel placement. Incorrect clearance creates gaps, obstructs cleaning, and allows water to seep beneath the panel.
Incorrect Length and Height Measurements
Measuring inaccurately or rounding dimensions results in panels that are too short or too tall. Panels that do not match the bathtub dimensions compromise coverage, protection, and visual alignment.
Overlooking Angles and Curves
Neglecting corner angles or curved sections causes panels to misalign. L-shaped, P-shaped, corner, and offset baths require precise angle measurements to ensure panels meet seamlessly.
Ignoring Design Features
Failing to account for cut-outs for plumbing or access panels prevents proper fitting. Panels without necessary design accommodations may require modifications and reduce functionality.
Relying on Visual Estimates
Estimating measurements by eye instead of using a tape measure creates inaccuracies. Visual guesses often result in panels that are uneven, misaligned, or incompatible with the bathtub framework.
What Can You Do If Your Bath Doesn’t Fit Standard Panel Sizes?
If a bathtub does not fit standard panel sizes, custom or adjustable panels provide a precise and secure fit. Correctly fitting panels prevent gaps, water leakage, and misalignment while preserving the bathroom’s structural integrity and aesthetic balance.
Use an Adjustable Bath Panel
Adjustable panels extend or retract within a defined range to match the bathtub dimensions. Setting the panel to the correct length and height ensures a flush fit and full coverage, even for slightly irregular baths.
Order a Custom Bath Panel
Custom panels are manufactured to the exact measurements of the bathtub. Providing precise length, height, and angle dimensions ensures complete side coverage, accommodates curves, and aligns with skirting boards or flooring.
Consider Modular Panel Sections
Modular panels combine multiple pieces to fit irregular or larger bathtubs. This solution works effectively for L-shaped, P-shaped, or offset baths, guaranteeing full coverage without gaps, overlaps, or misalignment.
Verify All Measurements
Double-check length, height, angles, and floor clearance before installation. Accurate verification ensures the panel fits securely, protects the bathtub framework, and maintains a neat, polished bathroom finish.
What Are the Pro Tips for Perfect Bath Panel Installation?
Perfect bath panel installation requires careful measurement, precise alignment, and proper securing techniques. Following expert tips prevents gaps, water seepage, and misalignment while ensuring a polished and functional bathroom finish.
Double-Check Measurements
Measure the bathtub length, height, and floor clearance twice before cutting or fitting the panel. Accurate verification prevents gaps, uneven alignment, and future water damage.
Use a Spirit Level
Ensure the panel sits perfectly level during installation. Level placement avoids slanted panels, reduces stress on fixings, and maintains a neat, professional appearance.
Secure Panels Properly
Use appropriate fixings and brackets according to the panel type and wall structure. Proper securing prevents the panel from shifting, reduces gaps, and ensures long-term durability.
Allow Clearance for Flooring and Skirting
Leave enough space between the panel base and floor or skirting boards. Adequate clearance prevents obstruction during cleaning, accommodates floor expansion, and avoids damage from water contact.
Plan for Plumbing Access
Ensure panels allow access to taps, pipes, and plumbing fixtures. Incorporating access panels or cut-outs prevents the need for panel removal during maintenance and keeps the installation functional.
Test Before Final Fixing
Temporarily position the panel to check alignment and fit. Testing ensures the panel sits flush against the bath and walls, preventing misalignment before permanent attachment.
How Do You Order a Bath Panel After Measuring?
Ordering a bath panel after measuring requires providing accurate dimensions, panel type, and design specifications. Correct ordering ensures a precise fit, prevents gaps, and maintains the bathroom’s aesthetic and functionality.
Verify Measurements
Double-check the length, height, and floor clearance measurements. Accurate verification ensures the panel will fit flush with the bathtub and walls, avoiding misalignment or water leakage.
Choose Panel Type
Select between standard, adjustable, or custom bath panels. Standard panels fit common tubs, adjustable panels accommodate minor variations, and custom panels cover irregular or uniquely shaped baths.
Specify Design Features
Provide details of any cut-outs, access panels, or decorative finishes. Including these features ensures the panel aligns with plumbing, maintains functionality, and complements the bathroom’s style.
Select Material and Finish
Decide on the panel material, color, and texture. Choosing the appropriate finish ensures durability, water resistance, and a seamless match with the bathroom décor.
Place the Order
Submit all measurements, panel type, design specifications, and material choices to the supplier or manufacturer. Clear instructions guarantee the bath panel is manufactured accurately, delivered correctly, and ready for secure installation.
How Do You Maintain and Adjust a Bath Panel After Installation?
Maintaining and adjusting a bath panel ensures long-term fit, prevents water damage, and keeps the bathroom looking polished. Proper care and minor adjustments extend the panel’s durability and functionality.
Regular Cleaning
Clean the panel surface with a non-abrasive cleaner and soft cloth. Avoid harsh chemicals that could damage the finish, and remove soap scum or water deposits to maintain appearance and hygiene.
Inspect for Gaps and Movement
Check periodically for gaps between the panel and bathtub or wall. Detecting movement early allows timely adjustments, preventing water seepage and potential structural damage.
Tighten Fixings
Ensure all screws, brackets, and clips remain secure. Tightening loose fixings maintains panel alignment, stability, and prevents wobbling or misalignment over time.
Adjust Height or Alignment if Necessary
Use adjustable panels or reposition fixed panels slightly if gaps or misalignment occur. Minor adjustments restore flush fitting, ensuring full coverage and protection of the bathtub framework.
Check Plumbing Access
Verify that any access panels remain easily removable. Maintaining access ensures plumbing can be serviced without removing the main bath panel, reducing risk of damage.
Conclusion
Accurate measurement and careful installation of a bath panel ensure a secure fit, prevent water damage, and maintain a neat bathroom appearance. By measuring length, height, floor clearance, and angles precisely, and choosing the right panel type standard, adjustable, or custom you achieve a seamless fit. Avoiding common mistakes like incorrect dimensions, ignoring floor clearance, or neglecting curves guarantees alignment and protection. Following pro installation tips and regular maintenance keeps panels stable, functional, and visually appealing. Properly measured and installed bath panels provide long-lasting durability, enhance the bathroom’s look, and protect the bathtub framework effectively.
