Fitting a shower cubicle involves creating a fully enclosed, watertight showering space by installing fixed glass panels, doors, and frames onto a correctly prepared shower tray or floor, with precise alignment and controlled sealing. Successful installation depends on accurate measurement of tray dimensions and wall plumb, structurally sound and waterproofed walls, a level and fully supported shower tray, correct positioning and fixing of wall profiles, precise door installation, and disciplined internal-only silicone sealing with adequate curing time.
Shower cubicle performance relies on correct door alignment, seal compression, drainage efficiency, and post-installation testing to prevent leaks, glass stress, and door malfunction. Errors in tray preparation, fixing strength, alignment, or sealing strategy remain the primary causes of long-term failure, which explains why professional installation becomes essential in stud walls, wet room floors, large glass enclosures, restricted layouts, or warranty-sensitive installations.
What Is a Shower Cubicle?
A shower cubicle is a fully enclosed shower unit consisting of fixed glass panels and one or more doors designed to contain water within a defined footprint. Shower cubicles control spray, protect surrounding surfaces, and install onto shower trays or prepared wet room floors.
Fully Enclosed Shower Structure
Shower cubicles form a sealed enclosure around the showering area. Glass panels and doors meet at vertical profiles to prevent water escape beyond the shower zone.
Integrated Door Systems
Shower cubicles use hinged, sliding, pivot, or bi-fold doors for access. Door configuration determines opening clearance, user access, and suitability for different bathroom sizes.
Glass Panel Construction
Shower cubicles use toughened safety glass panels for impact resistance. Glass thickness commonly ranges between 6 mm and 8 mm depending on enclosure design and height.
Tray or Floor Compatibility
Shower cubicles install onto shower trays or tiled wet room floors. Tray size and shape define cubicle footprint and influence drainage performance.
Water Containment Function
Shower cubicles manage water containment through sealed joints and door gaskets. Magnetic seals, vertical seals, and silicone joints prevent leakage during operation.
Frame and Profile Options
Shower cubicles are available in framed, semi-framed, and frameless designs. Frame presence affects rigidity, visual appearance, and installation tolerance.
What Types of Shower Cubicles Are Available?
Shower cubicle types differ by door mechanism, enclosure shape, frame construction, and installation footprint, which determines access clearance, space efficiency, and water containment performance. Selection depends on bathroom layout, tray size, and user access requirements.

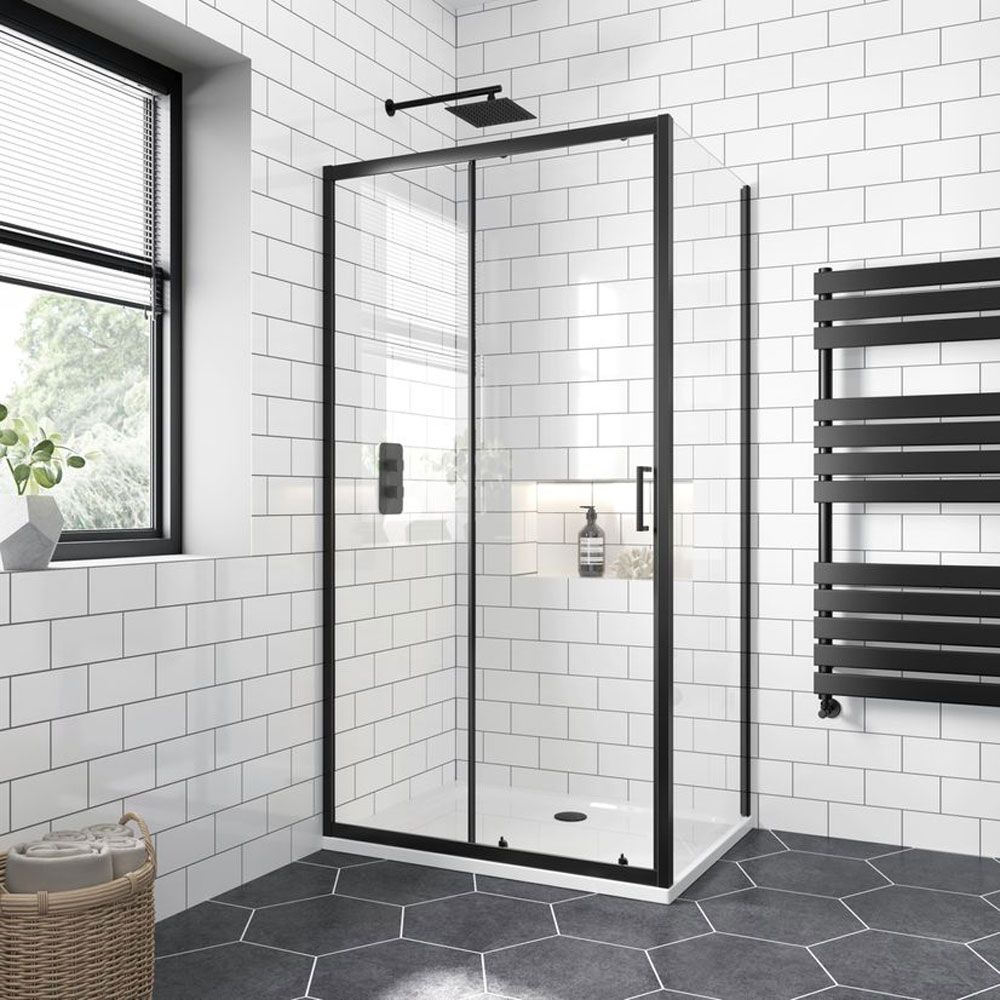

Sliding Door Shower Cubicles
Sliding door shower cubicles use horizontally moving doors that operate within the enclosure footprint. Sliding mechanisms reduce external clearance requirements and suit narrow bathrooms and en-suites.
Hinged Door Shower Cubicles
Hinged door shower cubicles use outward-opening doors mounted on side hinges. Hinged systems provide wide access openings but require sufficient clearance in front of the enclosure.
Pivot Door Shower Cubicles
Pivot door shower cubicles rotate on a central or offset pivot point. Pivot designs balance access width and clearance demand while maintaining strong door stability.
Bi-Fold Door Shower Cubicles
Bi-fold door shower cubicles fold inward or outward during opening. Folding panels reduce swing radius and support installation in compact bathroom layouts.
Quadrant Shower Cubicles
Quadrant shower cubicles use curved glass panels to fit corner installations. Curved fronts maximise internal showering space while minimising external footprint.
Square and Rectangular Shower Cubicles
Square and rectangular shower cubicles use straight glass panels with right-angle corners. These shapes align with standard shower tray sizes and suit both corner and alcove installations.
Framed Shower Cubicles
Framed shower cubicles use aluminium profiles around glass edges for rigidity. Frames improve installation tolerance and structural stability.
What Tools and Materials Are Required to Fit a Shower Cubicle?
Fitting a shower cubicle requires precise measuring tools, load-appropriate fixing equipment, enclosure-specific hardware, waterproof sealing materials, and safety handling aids to achieve stable alignment and watertight containment. Correct tool and material selection prevents glass stress, misalignment, and leakage.
Measuring and Alignment Tools
Measuring and alignment tools establish accurate cubicle positioning and squareness. Tape measure, spirit level, laser level, straight edge, and non-permanent marker confirm tray dimensions, wall plumb, and profile alignment before drilling.
Drilling and Fixing Equipment
Drilling and fixing equipment secures wall profiles and frame components. Hammer drill, tile drill bits, masonry drill bits, screwdriver or impact driver, and torque-controlled tightening tools enable safe penetration through tiles into structural substrates.
Shower Cubicle Hardware
Shower cubicle hardware provides structural support and door operation. Wall profiles, aluminium frames, door rollers or hinges, magnetic seals, vertical seals, screws, brackets, and setting blocks form the enclosure system.
Toughened Glass Panels and Doors
Shower cubicles use toughened safety glass panels and doors rated for wet environments. Typical glass thickness ranges from 6 mm to 8 mm, matched to enclosure height and frame design.
Waterproofing and Sealing Materials
Waterproofing materials prevent moisture ingress at joints and fixings. Sanitary-grade silicone sealant, sealing strips, gaskets, and masking tape ensure controlled internal sealing without trapping water.
Shower Tray and Waste Components
Tray and waste components define cubicle footprint and drainage performance. Shower tray, waste trap, compression fittings, and compatible outlet connectors support reliable water removal.
Fixing Consumables
Fixing consumables support secure installation and tolerance adjustment. Wall plugs matched to substrate, stainless steel screws, packers, and shims maintain alignment and load distribution.
What Measurements Are Required Before Installing a Shower Cubicle?
Accurate measurement before fitting a shower cubicle determines enclosure compatibility, wall fixing accuracy, door operation clearance, and long-term water containment performance. Measurement errors cause misalignment, sealing failure, and door malfunction.
Finished Floor Level Measurement
Finished floor level establishes the baseline for all vertical measurements. Tile thickness, adhesive depth, and tray height must be included to avoid incorrect enclosure height and sealing gaps.
Shower Tray Dimensions
Shower tray width and depth define cubicle footprint and frame position. Exact tray measurements taken at multiple points identify manufacturing tolerance and installation variance.
Wall Plumb and Squareness Check
Wall plumb and squareness measurement identifies deviation from vertical alignment. Spirit level or laser checks reveal wall lean that affects profile seating and glass alignment.
Opening Width and Enclosure Size
Opening width measurement confirms enclosure size compatibility. Measurement at base, mid-height, and top ensures correct cubicle selection where walls taper or bow.
Door Clearance and Swing Radius
Door clearance measurement confirms usable opening space. Hinged, pivot, or bi-fold doors require sufficient swing or fold clearance to operate without obstruction.
Enclosure Height Clearance
Enclosure height measurement confirms ceiling and soffit compatibility. Vertical clearance prevents frame interference with sloped ceilings or overhead obstructions.
Waste Position Measurement
Waste position measurement confirms alignment with tray outlet. Misaligned waste placement affects tray positioning and enclosure centring.
What Floor and Wall Conditions Are Required for a Shower Cubicle Installation?
A shower cubicle installation requires flat, plumb walls with secure fixing zones and a fully supported, level floor or shower tray capable of maintaining watertight seals and structural stability. Unsuitable surfaces compromise enclosure alignment, door operation, and long-term water containment.
Structurally Sound Wall Substrate
Walls must support enclosure profiles, glass panels, and door mechanisms without movement. Solid masonry walls or reinforced stud walls with timber noggins or metal framing provide reliable fixing strength.
Wall Flatness and Vertical Accuracy
Wall surfaces must remain flat and vertically true. Excessive deviation prevents wall profiles from seating correctly and creates gaps that reduce sealing effectiveness.
Waterproof Wall Construction
Walls within the shower zone must resist moisture penetration. Tiled masonry, cement backer boards, or tanked plasterboard surfaces protect underlying structures from water ingress.
Level and Fully Supported Shower Tray
Shower trays must sit level and fully supported across the entire base. Inadequate support causes tray flex, which breaks silicone seals and misaligns enclosure frames.
Stable Subfloor Beneath the Tray
Subfloors must remain rigid and free from deflection. Timber floors require reinforcement, while concrete floors require crack-free and even surfaces.
Correct Drainage Alignment
Drainage must align accurately with tray outlet positions. Misaligned waste connections strain joints and compromise drainage efficiency.
Finished Surface Integrity
Finished surfaces must be firmly bonded and crack-free. Loose tiles or uneven finishes prevent proper sealing and profile fixing.
How Should the Shower Tray Be Prepared Before Fitting a Cubicle?
A shower tray must be level, fully supported, correctly aligned to the waste, and completely sealed before a shower cubicle is fitted to ensure structural stability and watertight performance. Poor tray preparation causes frame distortion, seal failure, and long-term leakage.
Subfloor Condition Verification
The subfloor must remain rigid, flat, and free from movement. Timber floors require reinforcement to prevent flex, while concrete floors require an even, crack-free surface to support the tray uniformly.
Tray Position and Orientation Setting
Tray positioning must align precisely with wall faces and waste outlets. Correct orientation ensures enclosure frames sit square and door mechanisms operate without binding.
Full Tray Bedding Support
Shower trays must be fully bedded using mortar or manufacturer-approved bedding compound. Full contact support prevents tray flex under load, which protects silicone joints and enclosure alignment.
Level Accuracy Confirmation
Tray level accuracy must be verified in all directions. Spirit level checks across width, depth, and diagonals confirm zero fall deviation that could compromise cubicle squareness.
Waste Connection and Seal Testing
Waste connections must be tightened and tested before enclosure fitting. Leak testing confirms joint integrity and prevents concealed water damage beneath the tray.
Edge and Wall Contact Sealing
Tray edges must be sealed against wall junctions before frame installation. Sanitary-grade silicone applied at wall–tray interfaces prevents moisture migration behind wall finishes.
Curing Time Allowance
Tray bedding and sealant must cure fully before cubicle installation. Manufacturer curing times ensure the tray remains immobile during frame fixing and glass loading.
How Is the Shower Cubicle Frame Positioned and Fixed?
A shower cubicle frame is positioned and fixed by aligning wall profiles vertically and square to the shower tray, securing them into solid fixing points, and locking the frame only after full level and plumb accuracy is confirmed. Correct positioning ensures door operation, sealing performance, and long-term structural stability.
Wall Profile Positioning
Wall profiles are positioned directly on the shower tray edge and aligned to the finished wall surface. Accurate placement ensures the enclosure footprint matches tray dimensions and maintains equal door clearances.
Vertical Plumb Alignment
Vertical alignment ensures wall profiles stand perfectly plumb. Spirit level or laser level checks along the full profile height prevent frame twist and uneven glass loading.
Fixing Point Marking
Fixing points are marked through the wall profile fixing slots. Slot positioning allows minor adjustment during final alignment before permanent fixing.
Drilling and Substrate Preparation
Fixing holes are drilled through tiles into structural wall material. Tile drill bits prevent surface cracking, while correct depth ensures full wall plug engagement.
Waterproofing at Fixings
Fixing penetrations are sealed to prevent water ingress. Silicone or sealing washers protect drilled holes and screw threads from moisture migration behind wall finishes.
Frame Securing
Wall profiles are secured using corrosion-resistant screws matched to the wall substrate. Controlled tightening prevents profile distortion and maintains alignment accuracy.
Horizontal Frame Assembly
Horizontal frame sections connect between vertical profiles where applicable. Squareness checks ensure the enclosure frame remains true before glass installation.
How Are Shower Cubicle Wall Profiles Installed Correctly?
Shower cubicle wall profiles are installed correctly by fixing vertical aluminium channels plumb to the wall, sealing all fixing penetrations, and securing profiles into load-bearing wall structures to support glass panels and door mechanisms. Accurate profile installation determines enclosure alignment and water tightness.
Profile Position Alignment
Wall profiles must align precisely with the shower tray edge and enclosure footprint. Profile bases sit flush on the tray rim to maintain equal door clearance and consistent sealing contact.
Vertical Plumb Verification
Profiles must be installed perfectly plumb from base to head. Spirit level or laser verification prevents frame twist that causes door binding and uneven seal compression.
Fixing Slot Utilisation
Fixing slots allow controlled adjustment during installation. Slot use enables fine alignment correction before final tightening without compromising fixing strength.
Tile Drilling Technique
Drilling through tiles requires correct bit selection and speed control. Tile drill bits prevent glaze cracking and ensure clean penetration before reaching structural wall material.
Structural Fixing Engagement
Fixings must engage solid wall substrates. Masonry walls or reinforced stud walls provide the load resistance required to support glass weight and door operation forces.
Fixing Penetration Sealing
All fixing penetrations must be sealed internally. Sanitary silicone applied to screw holes prevents water ingress behind wall finishes.
Profile Fixing Tightness Control
Fixings must be tightened evenly without deforming the profile. Excessive torque bends aluminium channels and compromises glass seating accuracy.
How Are Shower Doors Installed on a Shower Cubicle?
Shower doors are installed on a shower cubicle by mounting the door assembly into pre-fixed wall profiles or frame sections, aligning the door for smooth operation, and securing hinges or rollers to maintain controlled movement and watertight sealing. Correct installation ensures reliable access, seal compression, and long-term durability.
Door Type Identification
Door installation method depends on door mechanism type. Hinged, pivot, sliding, and bi-fold doors use different fixing points, roller systems, or hinge mounts that must match the enclosure design.
Door Frame or Roller Track Preparation
Frame sections or roller tracks must be installed and aligned before door fitting. Upper and lower tracks or hinge plates must remain level and square to prevent binding during operation.
Glass Door Panel Positioning
Glass door panels must be lifted and positioned carefully within the enclosure frame. Toughened glass edges align with hinges or rollers using manufacturer-specified mounting holes and brackets.
Hinge or Roller Fixing
Hinges or rollers are secured to the glass using protective gaskets. Gaskets isolate glass from metal contact and prevent edge stress during tightening.
Vertical and Horizontal Alignment
Door alignment ensures smooth opening and closing action. Adjustment screws or cams fine-tune height, plumb, and parallel positioning relative to fixed panels.
Seal and Magnet Installation
Door seals and magnetic strips are fitted to door edges. Vertical seals close gaps between glass panels, while magnetic strips maintain closure and water containment.
Opening Clearance Verification
Door swing or slide clearance must be checked under full operation. Doors must open fully without contacting walls, fixtures, or frames.
How Is a Shower Cubicle Aligned and Levelled?
A shower cubicle is aligned and levelled by setting wall profiles perfectly plumb, confirming the shower tray is level, and adjusting frame and glass components before final tightening to ensure smooth door operation and watertight sealing. Accurate alignment prevents glass stress, seal gaps, and premature component wear.
Shower Tray Level Verification
Shower tray level verification establishes the reference plane for the entire cubicle. Spirit level checks across width, depth, and diagonals confirm a flat base that supports square frame installation.
Wall Profile Plumb Alignment
Wall profiles must be aligned vertically plumb from base to head. Laser or spirit level checks prevent frame twist that causes door binding and uneven seal compression.
Frame Squareness Confirmation
Frame squareness ensures equal diagonal measurements across the enclosure. Square frames distribute load evenly and maintain consistent glass spacing.
Glass Panel Position Adjustment
Glass panel position adjustment fine-tunes alignment within wall profiles. Packers and setting blocks correct minor wall deviations without stressing glass edges.
Door Parallelism Check
Door parallelism ensures even gaps between door and fixed panels. Parallel alignment supports smooth movement and consistent magnetic seal contact.
Incremental Fixing Tightening
Fixings must be tightened incrementally after alignment confirmation. Even torque application prevents profile distortion and preserves level accuracy.
Seal Compression Verification
Seal compression verification confirms watertight contact points. Uniform seal contact along door edges and frame junctions prevents leakage during operation.
How Should a Shower Cubicle Be Sealed Against Water Ingress?
A shower cubicle is sealed against water ingress by applying sanitary-grade silicone sealant to internal wet-side joints only, after full alignment and fixing, to prevent moisture penetration while allowing controlled drainage. Correct sealing strategy protects wall and floor substrates and preserves enclosure performance.
Surface Preparation Before Sealing
All sealing surfaces must be clean, dry, and free from dust, grease, and residue. Proper preparation ensures silicone adhesion to glass, aluminium profiles, tiles, and tray surfaces.
Internal Joint Sealing Only
Sealant must be applied only to internal joints exposed to water. External sealing traps water inside profiles and forces moisture behind tiles and subfloors, which causes concealed damage.
Wall Profile Internal Sealing
Wall profiles require sealing along the internal edge where the profile meets tiled walls. Continuous silicone beads prevent water migration behind wall finishes during shower use.
Tray and Frame Junction Sealing
Tray-to-frame junctions require internal sealing after frame installation. Silicone at the internal tray edge prevents water ingress beneath the tray without blocking external drainage paths.
Door Frame and Fixed Panel Sealing
Fixed glass panel joints require internal sealing at profile interfaces. Door edges rely on seals and magnets rather than silicone to allow movement and compression.
Fixing Penetration Protection
All drilled fixing points must be sealed internally. Silicone applied to screw holes and bracket penetrations prevents moisture tracking into wall structures.
Controlled Bead Application
Sealant beads must remain continuous and evenly tooled. Consistent bead thickness prevents air gaps and capillary water tracking behind profiles.
How Long Should Sealant Cure After Fitting a Shower Cubicle?
Sealant applied to a shower cubicle requires a minimum curing time of 24 hours before water exposure to achieve full waterproof integrity and adhesion. Cure duration varies by silicone formulation, bead thickness, ambient temperature, and humidity.
Initial Skin Formation Time
Sanitary silicone forms a surface skin within approximately 20–40 minutes. Skin formation protects against light contact but does not indicate waterproof readiness.
Full Cure Duration
Full cure typically occurs within 24 hours for standard bead depths. Thicker beads or deeper joints extend curing time to 36–48 hours due to slower internal cross-linking.
Temperature and Humidity Influence
Low temperatures and high humidity extend curing time. Cooler or damp bathroom environments slow chemical curing reactions and delay seal strength development.
Water Exposure Risk
Early water exposure compromises seal performance. Contact with water before full cure causes washout, reduced adhesion, and micro-channel formation that leads to leaks.
Manufacturer Specification Priority
Manufacturer curing instructions override general guidance. Product datasheets specify cure times based on formulation and joint depth.
Mechanical Stress Avoidance
Mechanical stress must be avoided during curing. Door movement, cleaning pressure, or vibration disrupts seal integrity before full bond formation.
How Is a Shower Cubicle Tested After Installation?
A shower cubicle is tested after installation by verifying structural stability, alignment accuracy, watertight sealing, door operation, and drainage performance under controlled operating conditions. Testing confirms safe use, effective water containment, and long-term reliability.
Structural Stability Verification
Structural stability testing confirms the enclosure resists movement under applied force. Light lateral pressure on frames, fixed panels, and doors checks for flex, vibration, or fixing looseness.
Alignment and Level Reconfirmation
Alignment and level reconfirmation ensures the cubicle remains plumb and square. Spirit level checks on wall profiles, frame edges, and door alignment confirm no shift occurred during final fixing or sealing.
Door Operation Test
Door operation testing verifies smooth and controlled movement. Hinged, sliding, pivot, or bi-fold doors must open and close without binding, scraping, or resistance.
Seal and Magnet Engagement Check
Seal and magnet checks confirm consistent contact along door edges. Uniform seal compression and magnetic closure prevent water escape during showering.
Controlled Water Flow Test
Controlled water flow testing assesses water containment performance. Running the shower at normal pressure identifies splash escape, seal failure, or leakage beyond the cubicle footprint.
Drainage Performance Assessment
Drainage performance assessment confirms effective water removal. Water must flow freely to the waste without pooling at tray edges or door thresholds.
Leak Detection Inspection
Leak inspection identifies moisture penetration at joints and fixings. External surfaces, wall junctions, and tray edges must remain dry during and after testing.
What Common Mistakes Occur When Fitting a Shower Cubicle?
Common shower cubicle fitting mistakes occur when preparation, measurement accuracy, structural fixing, sealing strategy, or alignment control are incorrect, which leads to leaks, door malfunction, glass stress, and long-term installation failure. Most faults originate from process errors rather than product defects.
Incorrect Shower Tray Preparation
Incorrect tray preparation causes enclosure misalignment and seal failure. Trays that are not level, fully supported, or fully cured flex under load and break silicone joints.
Inaccurate Wall Measurements
Inaccurate wall measurements result in poor frame fit and sealing gaps. Failure to measure wall plumb and squareness causes frames to twist and doors to bind.
Fixing Into Non-Structural Walls
Fixing into unsupported plasterboard causes long-term instability. Shower cubicle profiles require solid masonry or reinforced stud fixing to resist door movement forces.
Over-Tightening Fixings
Over-tightening fixings distorts frames and stresses glass panels. Excessive torque bends aluminium profiles and increases risk of glass edge damage.
Incorrect Door Alignment
Incorrect door alignment causes poor seal contact and difficult operation. Misaligned hinges, rollers, or pivots prevent consistent magnetic seal engagement.
Sealing External Edges
Sealing external edges traps water inside profiles. Incorrect silicone placement forces water behind tiles and beneath trays instead of allowing controlled drainage.
Skipping Curing Time
Skipping sealant curing time leads to premature seal failure. Early water exposure washes out silicone before full bond formation.
When Should a Professional Install a Shower Cubicle?
A professional should install a shower cubicle when structural fixing, waterproofing integrity, tray preparation, or door alignment accuracy exceed basic DIY capability and introduce risk of leakage, instability, or non-compliant installation. Professional installation reduces long-term failure and water damage.
Non-Load-Bearing or Stud Wall Installations
Stud walls and dot-and-dab walls require professional reinforcement. Incorrect fixing into unsupported plasterboard causes frame movement and door misalignment over time.
Wet Room and Tiled Floor Systems
Wet room floors and tiled shower bases require specialist installation. Floor falls, tanking systems, and drainage alignment directly control water containment and leak prevention.
Large or Heavy Glass Cubicles
Large-format glass panels increase handling and fixing risk. Professional installers use specialist lifting equipment and fixing techniques to prevent glass damage and injury.
Drainage or Waste Relocation
Drainage modification requires professional plumbing expertise. Incorrect waste alignment compromises tray positioning and long-term drainage performance.
Tight Bathroom Layouts
Restricted spaces demand high installation precision. Limited clearances increase the risk of door interference and sealing failure without professional planning.
Warranty and Compliance Requirements
Manufacturer warranties often require professional installation. Certified fitting supports compliance with product guarantees and building standards.
Upper-Floor Bathrooms
Upper-floor installations increase water damage risk. Professional sealing and testing protect structural elements below the shower area.
Summing Up
A correctly fitted shower cubicle relies on careful preparation, accurate measurement, secure fixing, and disciplined sealing rather than speed or force. A level and fully supported shower tray, plumb and structurally sound walls, precisely positioned wall profiles, correctly aligned doors, and internal-only silicone sealing work together to keep water contained and moving toward the waste.
Most installation problems stem from rushed tray preparation, inaccurate alignment, poor fixing into weak walls, or incorrect sealing placement. When wall construction, drainage, glass size, or layout complexity increase installation risk, professional fitting provides long-term reliability, safer glass handling, and protection against leaks and repeat repairs.
